SERGE
AUDIO INTERFACE
2023
U S E R
M A N U A L
V 1 . 0
R A N D O M * S O U R C E

Advertisement

loading

Related Manuals for Random*Source SERGE MODULAR AUDIO INTERFACE 2023

Summary of Contents for Random*Source SERGE MODULAR AUDIO INTERFACE 2023

  • Page 1 SERGE AUDIO INTERFACE 2023 U S E R M A N U A L V 1 . 0 R A N D O M * S O U R C E...
  • Page 2 SERGE MODULAR Audio Interface Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Overview .

  • Page 3: Audio Interface

    SERGE MODULAR Audio Interface Installation Always turn the eurorack case off and unplug the power cord before plugging or unplugging any eurorack power cable . Do not touch any electrical terminals when attaching any eurorack power (bus board) cables . The Serge Audio Interface is an electronic music module requiring 50mA of +12VDC and 50 mA of -12VDC regulated voltages and an appropriate power connector to operate .

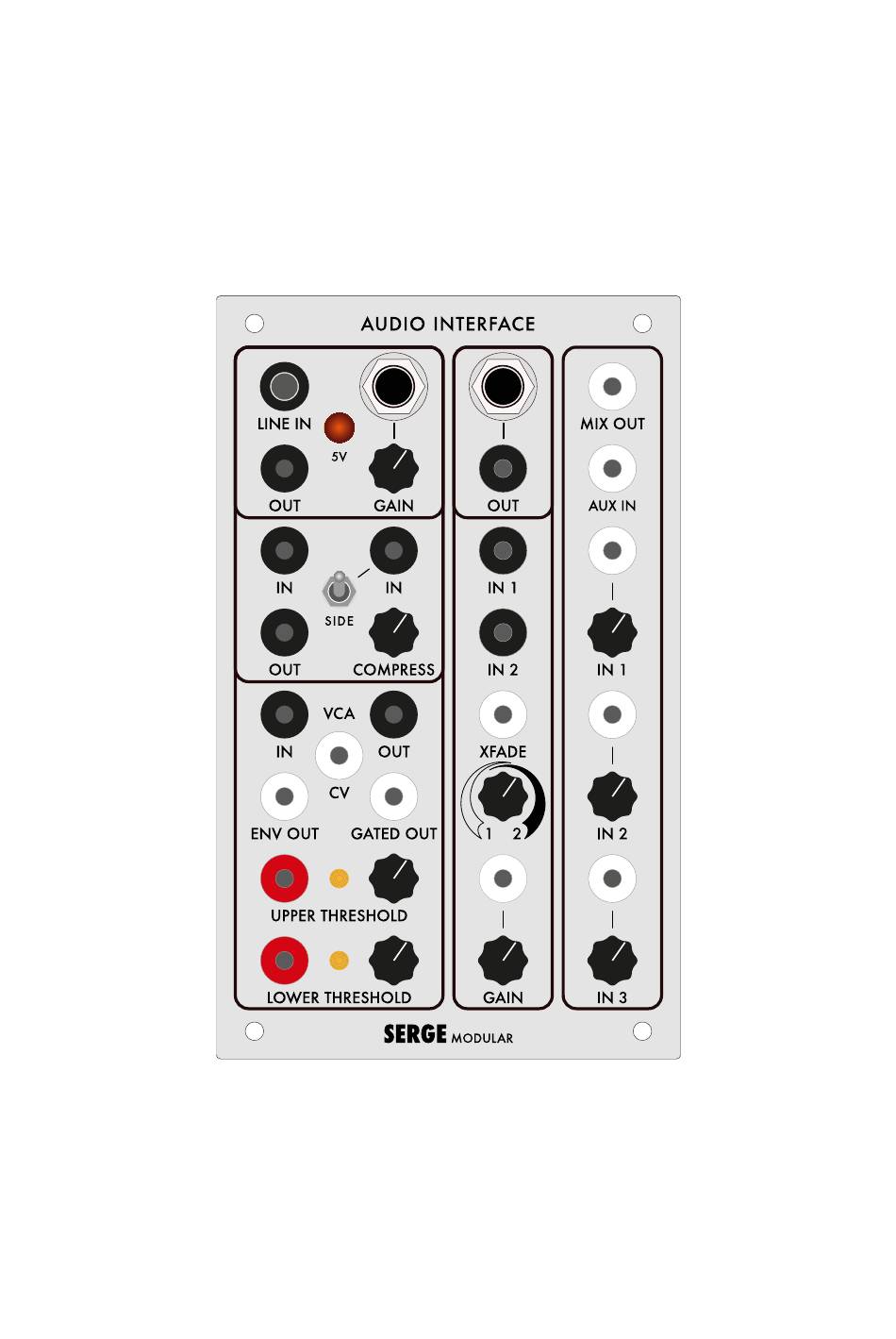

  • Page 4 SERGE MODULAR The Audio Interface TRS Balanced Input (Mic, Guitar, Instruments) Line Input (consumer level, fixed amplification) LED indicates that Preamp Out > 5Vpp Preamp Out Compressor Input (expects 5Vpp) Sidechain Input (active when switch is down) Compression Amount VCA (exponential) Input / CV Input / VCA Out Envelopelope Follower (CV) Out Gated Envelope (CV) Out HIGH Comparator Gate Out...
  • Page 5 SERGE MODULAR Preamp The purpose of this preamplifier is to bring external signals (dynamic mic, Guitar or other instruments) to the Serge Audio level of 5Vpp . The LED lights up when the signal reaches (or exceeds) 5Vpp . The Preamp offers two parallel inputs, one line level input (mono minijack) with a fixed amplification of approx . x8 and one TRS balanced input (6,35mm TRS) with up to +60dB .
  • Page 6 SERGE MODULAR Equal Power XFader The XFader is an equal-power, crossfader combined with a special VCA . The audio signals sent into IN 1 and IN 2 are being AC coupled and then sent into the crossfader . The XFade knob and the CV input above determine the ratio between IN 1 and IN 2 .
  • Page 7 . AUX IN provides an additional channel without attenuation . (Version 13 .07 .23) SERGE Modular by Random*Source . Under license and in cooperation with Serge Tcherepnin . All rights reserved . SERGE is a registered trademark . SERGE-MODULAR.COM...
