Summary of Contents for LeapFrog LF2415

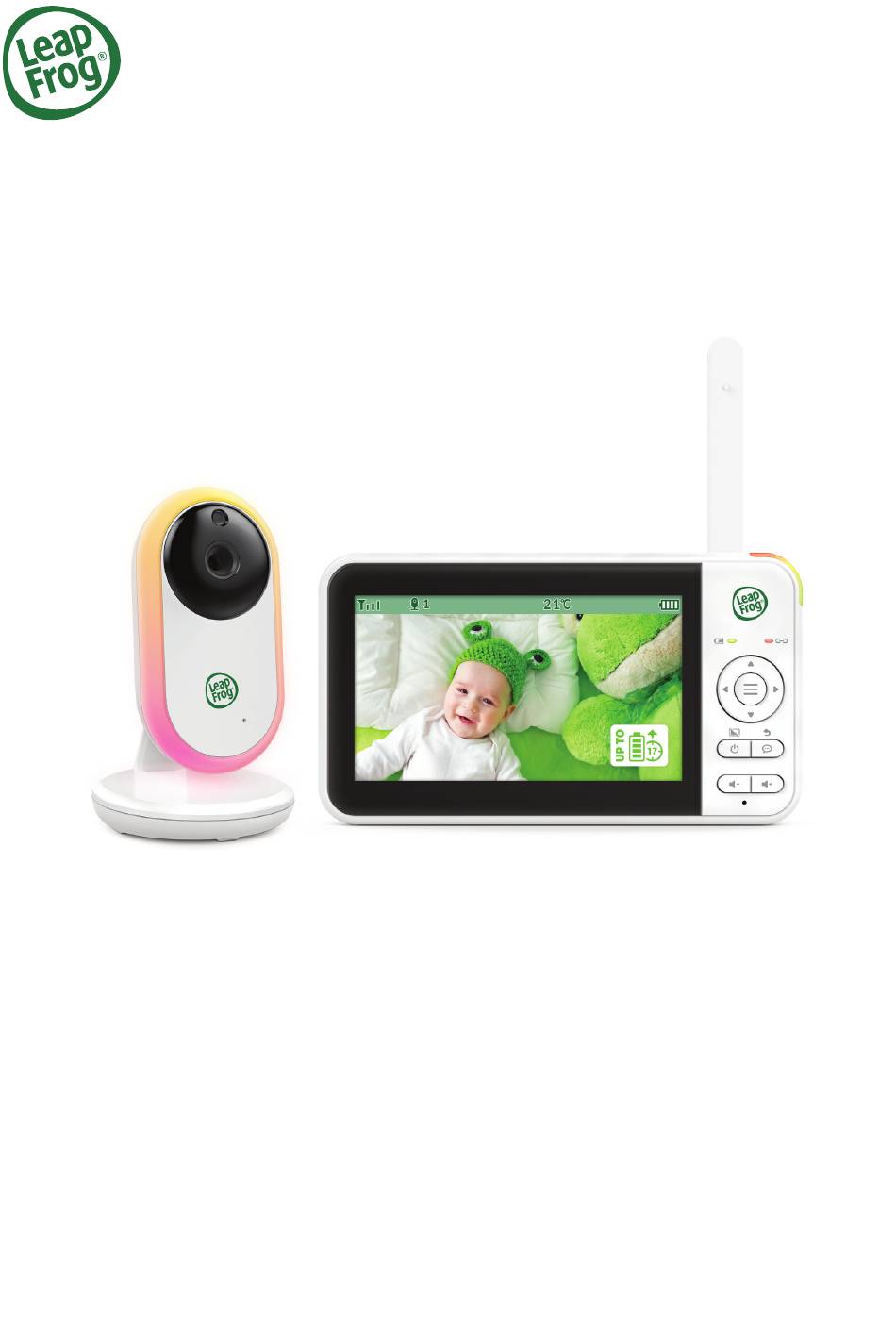

- Page 1 5“ Video Baby Monitor with LF2415 Night Light LF2415-2 User Guide This guide contains important information. Please keep it for future reference.
-
Page 2: Table Of Contents
Set Screen off Timer ......................23 Adjust Sound Sensitivity Level ....................24 Turn on/off Alert Tones ......................25 Night Vision ..........................28 Dim Mode ..........................28 Monitoring Modes (LF2415-2 only) ..................29 Additional Information ����������������������������������������������������������������������������������������27 Wall Mount (Optional) ......................31 General Product Care ......................33 Storage ..........................33 Adult Supervision ........................33 Technical Specifications ......................33... -
Page 3: Important Safety Instructions
Important Safety Instructions The applied name plate is located at the bottom of 15. Do not overload wall outlets or use an extension cord. the Baby Unit’s base. When using your equipment, basic 16. Do not place this product on an unstable table, shelf, stand or safety precautions should always be followed to reduce the other unstable surfaces. -
Page 4: Setup
Setup What’s Included? Parent Unit Baby Unit Parent Unit Adaptor Baby Unit Adaptor Quick Start Guide Learn to set up your units and have all detailed instructions on using your baby monitor. -
Page 5: Overview
Overview Baby Unit... - Page 6 Light Sensor Camera lens Infrared LEDs • Allow you to see clearly in a dark environment. Night light Microphone Power jack Speaker PAIR key • The Parent Unit and Baby Unit(s) provided are already paired Night light control key • Press to turn the night light on or off. Slots for wall mounting...
- Page 7 Parent Unit...
- Page 8 Antenna 3-level sound indicator light Battery LED light • On when the Parent Unit is connected to AC power, and the battery is charging. • Flashes when the Parent Unit battery is low and needs to be charged. LINK LED light •...
-
Page 9: Parent Unit Icons
Parent Unit Icons 60min Main Sub- Options 60min 45min Menu menu 45min 60min 30min Brightness 45min 60min 30min 15min Adjust the parent unit LCD screen brightness. 60min 45min 15min 30min 60min 45min 15min 30min 45min Lullaby 15min 30min Play/Stop AUTO 30min 15min 15min... - Page 10 • Set the Sound Sensitivity Level for auto screen on. 60min 15min Alert settings 30min • Sound Alert in Split-view (For LF2415-2 only). 15min • Turn on/off Low battery alert tone. • Turn on/off Link lost alert tone. • Turn on/off Confirmation alert tone.
- Page 11 Status icon Connection status Baby Unit 1 and 2 are being viewed in Patrol mode (For LF2415-2 only). Baby Unit 1 and 2 are being viewed in Split mode (For LF2415-2 only). Current view status • The Baby Unit number that is being viewed.
-
Page 12: Connect The Baby Monitor
Connect the Baby Monitor Connect the Parent Unit and Baby Unit to a power supply with the included power adapters. Notes: • Baby Unit turns on automatically after it connects to the power socket. • The rechargeable battery in the Parent Unit is built-in. •... -
Page 13: Charge The Parent Unit Battery
Charge the Parent Unit Battery The Parent Unit runs on an internal rechargeable battery or AC power. To continuously monitor your baby, keep the Parent Unit connected to AC power. The Parent Unit turns on automatically after it connects to the power socket, and its battery will charge at the same time. -
Page 14: Power On Or Off The Baby Monitor
Power On or Off the Baby Monitor 1� Connect the power adaptor to the Baby Unit and a power supply to power on the unit. Disconnect from the power supply to power off. 2� Press and hold to turn on the Parent Unit, the welcome screen appears and the green LINK LED flashes. -
Page 15: Position The Baby Monitor
Positioning the Baby Monitor Caution: Keep the Baby Unit out of the reach of your baby. Never place or mount the Baby Unit inside the baby’s cot or playpen. Place the Baby Unit more than 1m away from your baby. Manual Tilt Cautions:... -
Page 16: Basic Operation
Basic Operation Talk to Your Baby via the Baby Unit Talk function on the Parent Unit to comfort your baby from You can use the the other room. 1� Press and hold the key. The status icon appears on the screen. 2�... -
Page 17: Use The Menu
Use the Menu Press on the Parent Unit to enter the main menu, choose a menu item, or save a setting. You can use the Parent Unit menu for advanced settings or operations, such as to play or stop the Baby Unit lullaby, or to adjust the Baby Unit sound sensitivity. -
Page 18: Adjust Speaker Volume
Adjust Speaker Volume Press to adjust the speaker volume level on the parent unit, received from the Baby Unit. -
Page 19: Zoom
Zoom 1� Press to enter the main menu. 2� Press to go to (Camera Settings) menu , then press to confirm. 3� Press to select (zoom). 4� Press to select and press to confirm. You can zoom in or out your image between 1x and 2x�... -
Page 20: Turn On/Off The Parent Unit Screen
Turn on/off the Parent Unit Screen You can turn on or turn off the Parent Unit screen without powering off the unit. When the screen is turned off, you can still hear from the Baby Unit. • Press on the Parent Unit to turn off the screen. •... -
Page 21: Advanced Operation
60min Advanced Operation 60min 45min Lullabies and Soothing Sounds 45min 60min 30min There are 5 lullabies and 4 soothing sounds in the baby monitor for you to comfort 45min 60min 30min 15min your baby with. 60min 60min 45min 15min 30min Play the Lullabies and Soothing Sounds 45min 15min... -
Page 22: Night Light
Night Light You can control the night light remotely on the Parent Unit or directly on the Baby Unit. On the Baby Unit AUTO Slide the Night Light Control Key located at the back of the Baby Unit to 60min turn on/off the night light. -
Page 23: Set Screen Off Timer
Set Screen off Timer You can set a specific time interval, if no keys have been pressed on the Parent Unit, the screen will turn off (goes to sleep) to save power. You can still hear sounds from the Baby Unit when the screen turns off. 60min If you select Auto, the Parent Unit screen stays off when the Baby Unit detects no sound. -
Page 24: Adjust Sound Sensitivity Level
Adjust Sound Sensitivity Level You can choose to hear sounds from the Baby Unit continuously, or to only hear sounds that exceed a set sensitivity level. When the Baby Unit detects sounds that exceed the set sensitivity level, the Parent Unit screen turns on if it has been switched off, and the Baby Unit transmits the detected sounds to the Parent Unit. -
Page 25: Turn On/Off Alert Tones
Turn on/off Alert Tones Low Battery Alert Tone You can set the parent unit to beep when the parent unit operates in low battery condition. Switch it off if you do not wish to be disturbed when the parent unit’s battery is running low. - Page 26 Sound Detection in Split Mode Alert Tone You can turn on sound alert, and set the parent unit to beep when the Baby Unit detects sounds while in Split mode (For LF2415-2 only). Turn on or off sound alert: 1� Press on the parent unit.
- Page 27 Temperature Temperature Alert Your Baby Unit can help you keep track of your baby’s room temperature in order to ensure that your baby stays in the comfort zone at all times. With temperature sensor, the relevant data will be shown on the status bar when you powered on your units.
-
Page 28: Night Vision
Night Vision The Baby Unit has infrared LEDs that allow you to see your baby clearly at night or in a dark room. When the Baby Unit being viewed detects low light levels, the infrared LEDs are switched on automatically. The images from the Baby Unit are in black and white, and appears on the screen. -
Page 29: Monitoring Modes (Lf2415-2 Only)
Monitoring Modes (LF2415-2 only) When more than one Baby Unit is paired to the Parent Unit, you can choose to view different Baby Units in three monitoring modes. Learn more about each below: Single Mode The screen displays images only from the selected Baby Unit in full screen. - Page 30 Change different views - Patrol Select Patrol as your monitoring mode to alternately view the image from Baby Units every 10 seconds. Change different views - Split Select Split as your monitoring mode to view the images from both Baby Units at once.
-
Page 31: Additional Information
Additional Information Wall Mount (Optional) Items to purchase You will need to purchase the following items separately to mount your Baby Unit: 2 screws 2 anchors Notes: • Check for reception strength and camera angle of the Baby Unit before drilling the holes. •... - Page 32 3� Insert the screws into the holes and tighten the screws until only 1/4 inch (6.5 mm) of the screws are exposed. 4� Align the wall mount holes on the Baby Unit with the screws on the wall. Slide the Baby Unit down until it locks into place. 5�...
-
Page 33: General Product Care
General Product Care To keep this product working well and looking good, follow these guidelines: • Avoid placing it near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps). • DO NOT expose it to direct sunlight or moisture. •... -
Page 34: Disposal Of Batteries And Product
Disposal of Batteries and Product The crossed-out wheelie bin symbols on products and batteries, or on their respective packaging, indicates they must not be disposed of in domestic waste as they contain substances that can be damaging to the environment and human health. The chemical symbols Hg, Cd or Pb, where marked, indicate that the battery contains more than the specified value of mercury (Hg), cadmium (Cd) or lead (Pn) set out in Battery Directive (2006/66/EC).
