Leap Frog LF2423, LF2423-2 - Full Color Video Monitor Manual

What's Included

1 set for LF2423
2 sets for LF2423-2

Connect and Charge the Baby Monitor

1. Connect the Baby Monitor

Note:

• Baby Unit turns on automatically after it connects to the power socket.


2. Charge the Parent Viewer Battery

Notes:

• Before using the baby monitor for the first time, charge the Parent Viewer battery for 12 hours. When the Parent Viewer battery is fully charged, the battery icon becomes solid .
• The standby time varies depending on your actual usage time and the age of the battery.

The battery icon on the screen indicates the battery status:

Battery Indicators	Battery Status	Action
The screen displays . The light flashes.	The battery is low in power and may only be used for a short time.	Charge without interruption (about 30 minutes).
The battery icon becomes solid .	The battery is fully charged.	To keep the battery charged, connect it to AC power when not in use.

3. Power On or Off the Baby Monitor

• Connect the power adapter to the Baby Unit and a power supply to power on the unit.
• Disconnect from the power supply to power off.

• Press and hold until the welcome screen appears.


4. Status Check

Once your Baby Unit and Parent Viewer are powered on and connected, your Parent Viewer displays video from Baby Unit, and the LINK LED light turns on.

5. Positioning the Baby Monitor

Keep the baby unit out of the reach of your baby. Never place or mount the baby unit inside the baby's crib or playpen.

Note:
To avoid interference from other electronic devices, place your baby monitor at least 3 feet (1 meter) away from devices such as wireless routers, microwaves, cell phones and computers.

The default volume of your Parent Viewer is level 3, and the maximum volume is level 5. If you experience a screeching noise from your baby monitor while positioning:

• Make sure your Baby Unit and Parent Viewer are more than 3 feet (1 meter) apart,
  OR
• Lower the volume of your Parent Viewer.

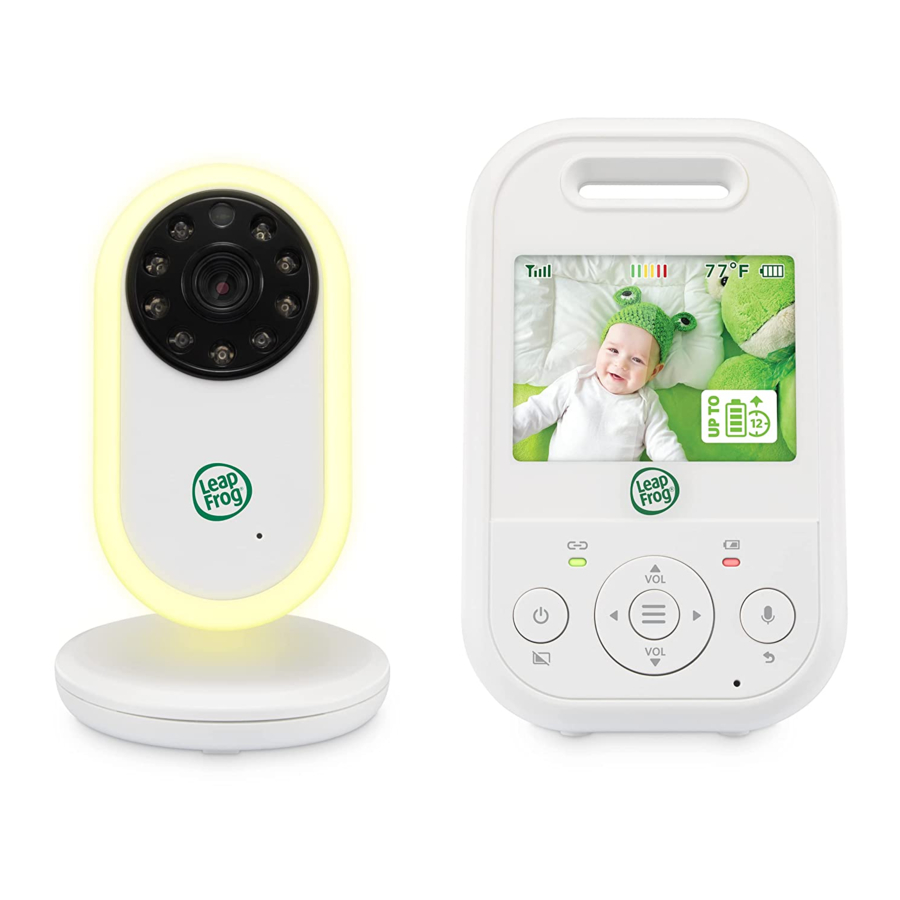

Overview

Parent Viewer

1. Link LED light
2. Power / LCD Off
3. Menu / Select
4. Volume
   • View the volume adjustment bar.
   Arrow keys
5. Battery LED light
6. Talk / Return
7. Microphone
8. RESET
9. Stand
10. Speaker
11. Power jack

Baby Unit

1. Light sensor
2. Camera lens
3. Infrared LEDs
4. Night light
5. Microphone
6. Power jack
7. Speaker
8. PAIR key

• The Parent Viewer and Baby Unit(s) provided are already paired

9. Night light control key

• Press to turn the night light on or off.

10. Slots for wall mounting

Online Manual

Scan the QR code to access the Online Manual or visit leapfrog.zendesk.com/hc

Full Manual
Comprehensive help articles on product set up, operations and settings.

Video Tutorials
Walk-throughs on features and installation.

FAQs & Troubleshooting
Answers to the most commonly asked questions, including troubleshooting solutions.

Customer Support

Visit our Consumer Support website 24 hours a day at:
United States: leapfrog.com/support
Canada: leapfrog.ca/support

Call our Customer Service number
from Monday to Friday
9am - 6pm Central Time:
United States & Canada: 1 (800) 701-5327

Warranty

Please visit our website at leapfrog.com for full details of the warranty provided in your country.
