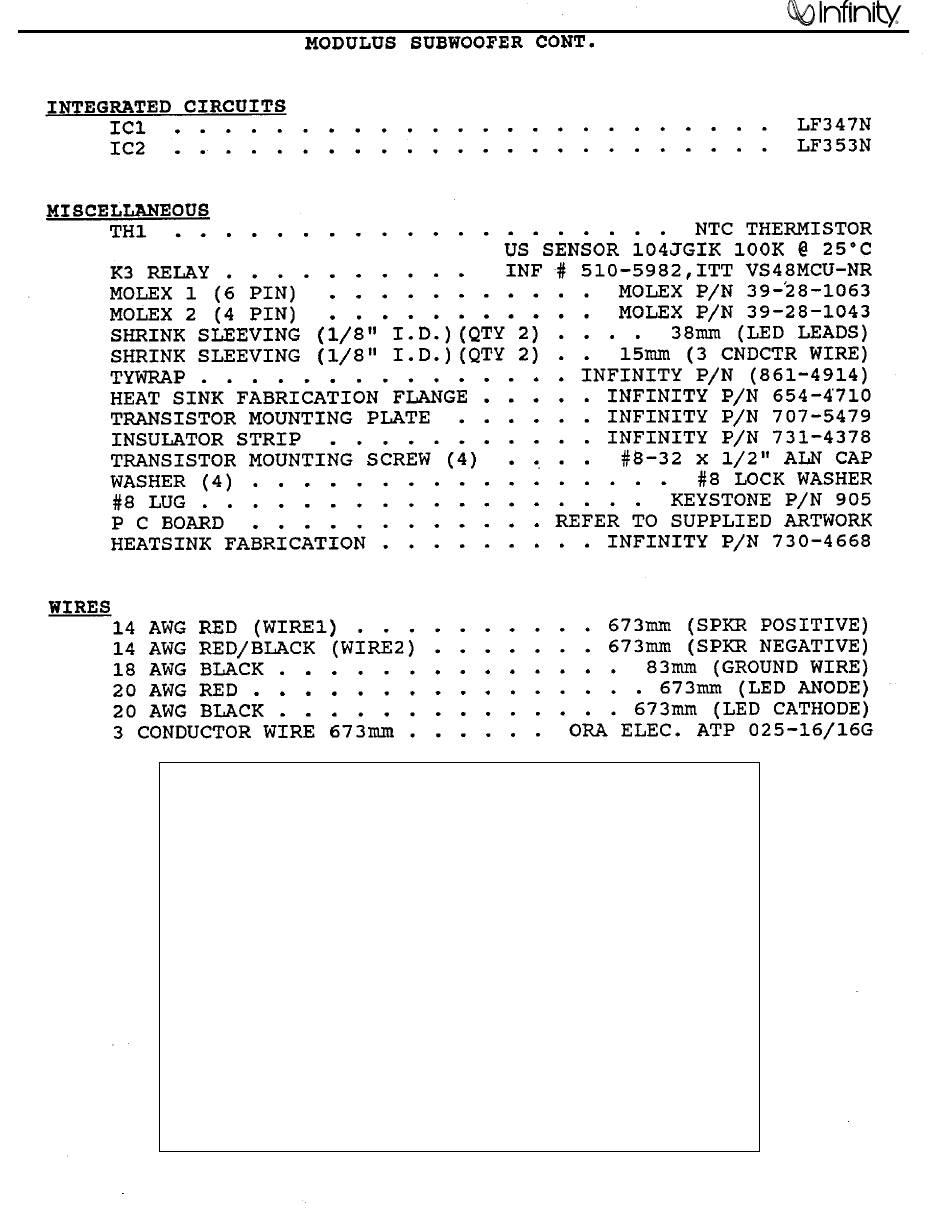

Infinity MODULUS Service Manual page 26
Servo controlled subwoofer electronic control unit
Hide thumbs
Also See for MODULUS:
- Owner's manual (15 pages) ,
- Owner's manual (28 pages) ,
- Owner's manual (6 pages)
Table of Contents
Advertisement
Modulus
PART#
RS1868
306-0798
306-0805
306-8042
306-8043
307-8126
325-4258
325-6548
50363
347-3982
347-3989
347-8029
347-8030
DESCRIPTION
(R17-24) 0.1 ohm, 5W WW 10% Resistor
1N4004 DIODE
1N4148 DIODE
FEP16DT DUAL DIODE
FEN16DT DUAL DIODE
IN5353B 16V 5W ZENER DIODE
LF347N IC
LF353N IC
MPSA12 TRANSISTOR
TIP 36C TRANSISTOR
TIP 35C TRANSISTOR
2SD1763A TRANSISTOR
2SB1186A TRANSISTOR
