MODULUS DIN CABLE (639-4458A) PINOUT

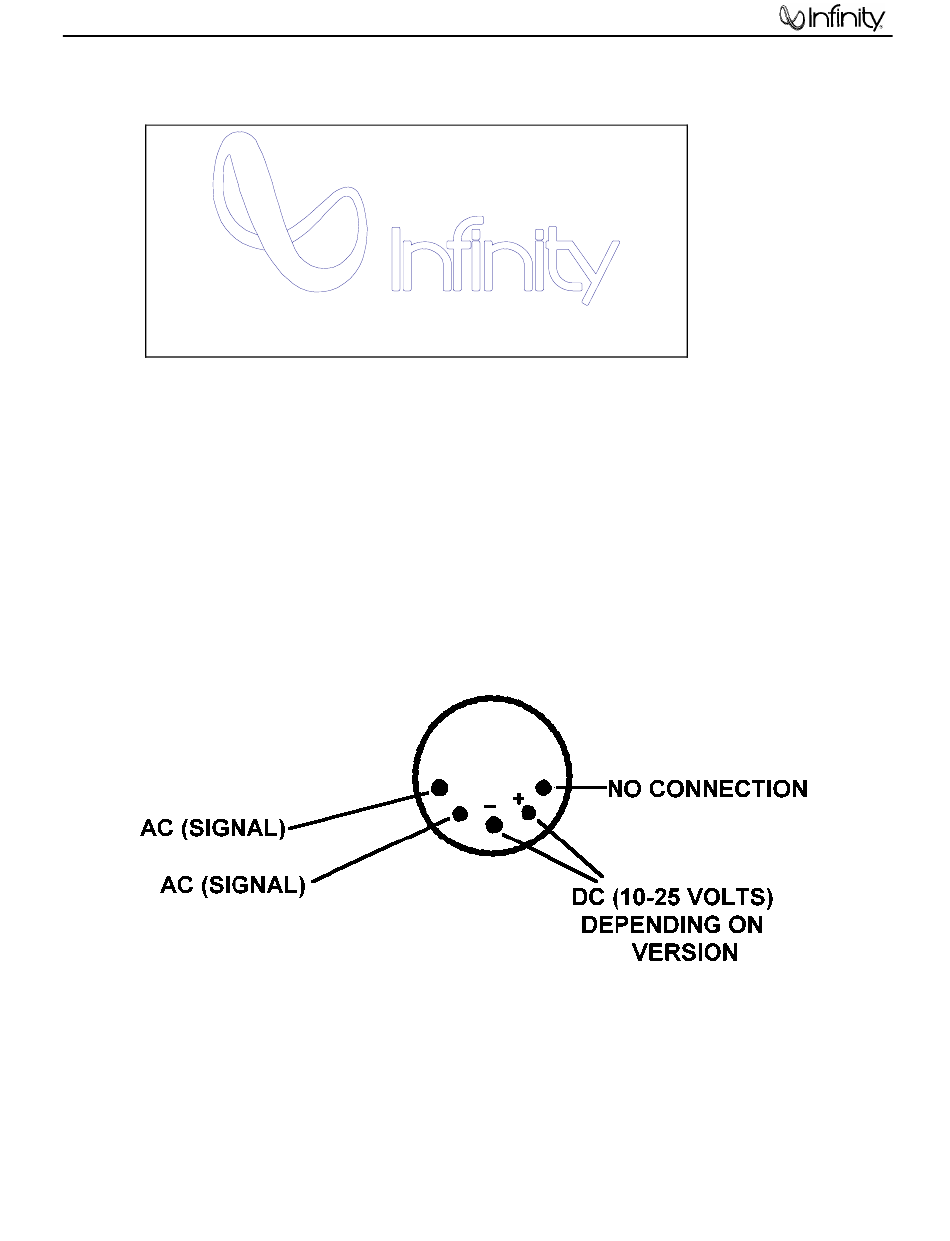

Below are the pin outputs to the five pin Din cable; it is depicted when the cable is plugged into the
ECU (turned ON) and you are facing the opposite end of the plug.
