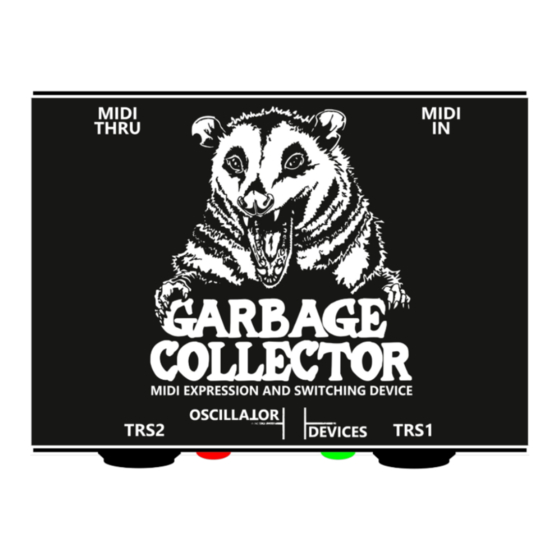

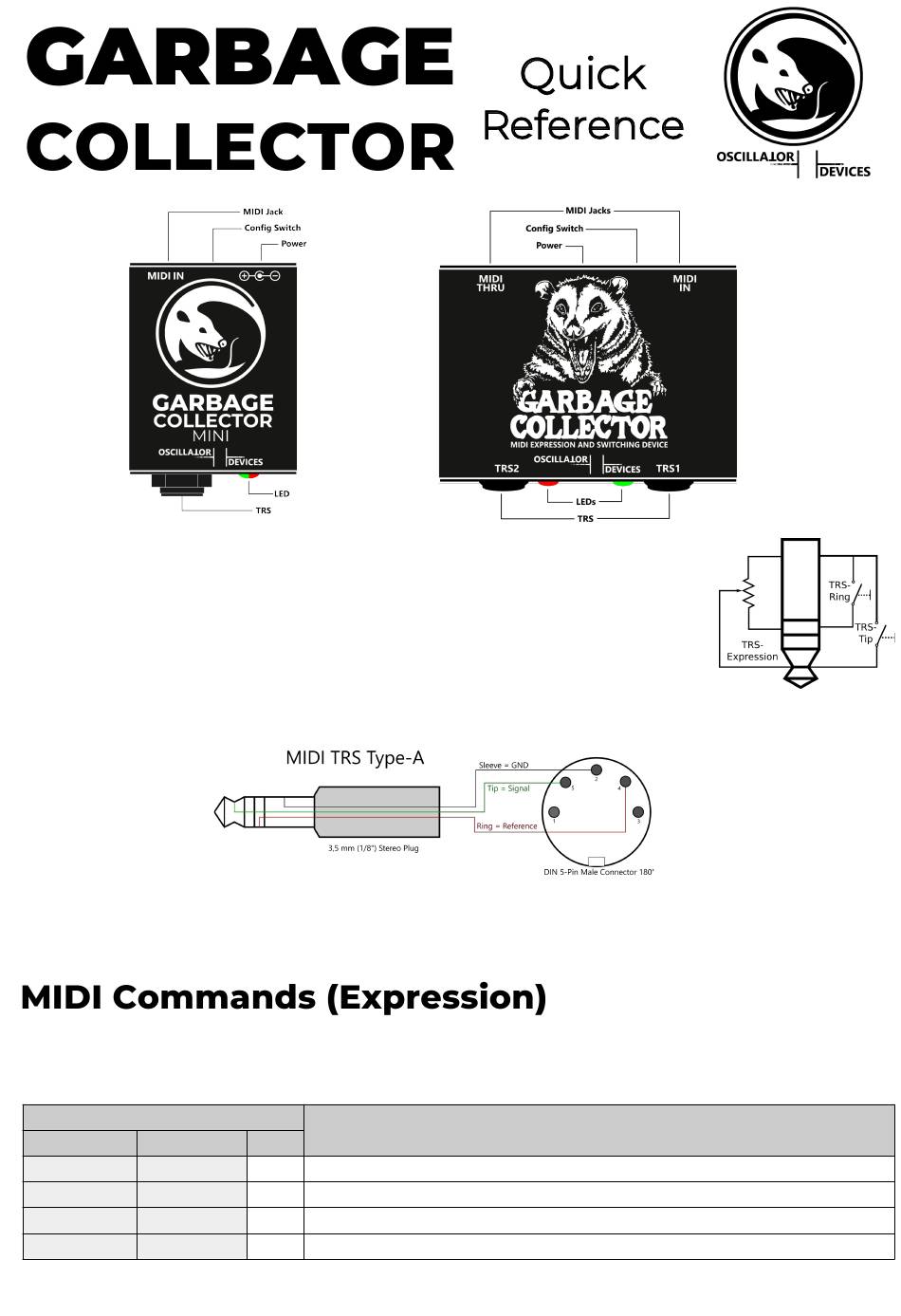

OSCILLATOR DEVICES GARBAGE COLLECTOR Quick Reference

• TRS: 1/4 '' stereo jack sockets. When used as switch, the tip and ring are open and close
individually to the sleeve. As an expression out, the wiper is on the tip and connected to the sleeve
and ring via the potentiometer.
• Power: Power supply 9-18V. 2.1mm barrel connector, center negative (Boss-Style).
• Config Switch: If the switch is pressed shortly while the device is switched on, tip, ring and tip+ring
are closed in sequence. If the switch is held, the expression function is activated and it is slowly
moved from heel to toe and back again.
• MIDI In/Thru: 1/8" stereo jack sockets according to MIDI standard for MIDI TRS (MIDI TRS-Type A).
Please disconnect all devices from the power supply, before making any connections.
Caution: In the delivery state,
applied
The following commands apply to the use of TRS1/2 as expression out. The change from switch to expression and back is done
automatically. The expression out has 256 steps. Command 16/17 or 36/37 distributes the entire range over 128 steps. The
high-resolution commands 18/38 and 19/39 can be used to set a precise value.
CC
TRS1 (EXP1) TRS2 (EXP2)
16 36
17 37
18 38
19 39
Oscillator Devices - Garbage Collector – Quick Reference
under no circumstances should there be more than +5V or negative voltages be
to the TRS sockets. Otherwise the digital potentiometer would be destroyed.
#
0-127 Expression out from heel (0) to toe (127)
0-127 Expression out from toe (0) to heel (127)
0-127 Expression out from heel (0) to middle position (127)
0-127 Expression out from middle position (0) to toe (127)
Function
1 21.06.2023
