Summary of Contents for extronics iWAP107

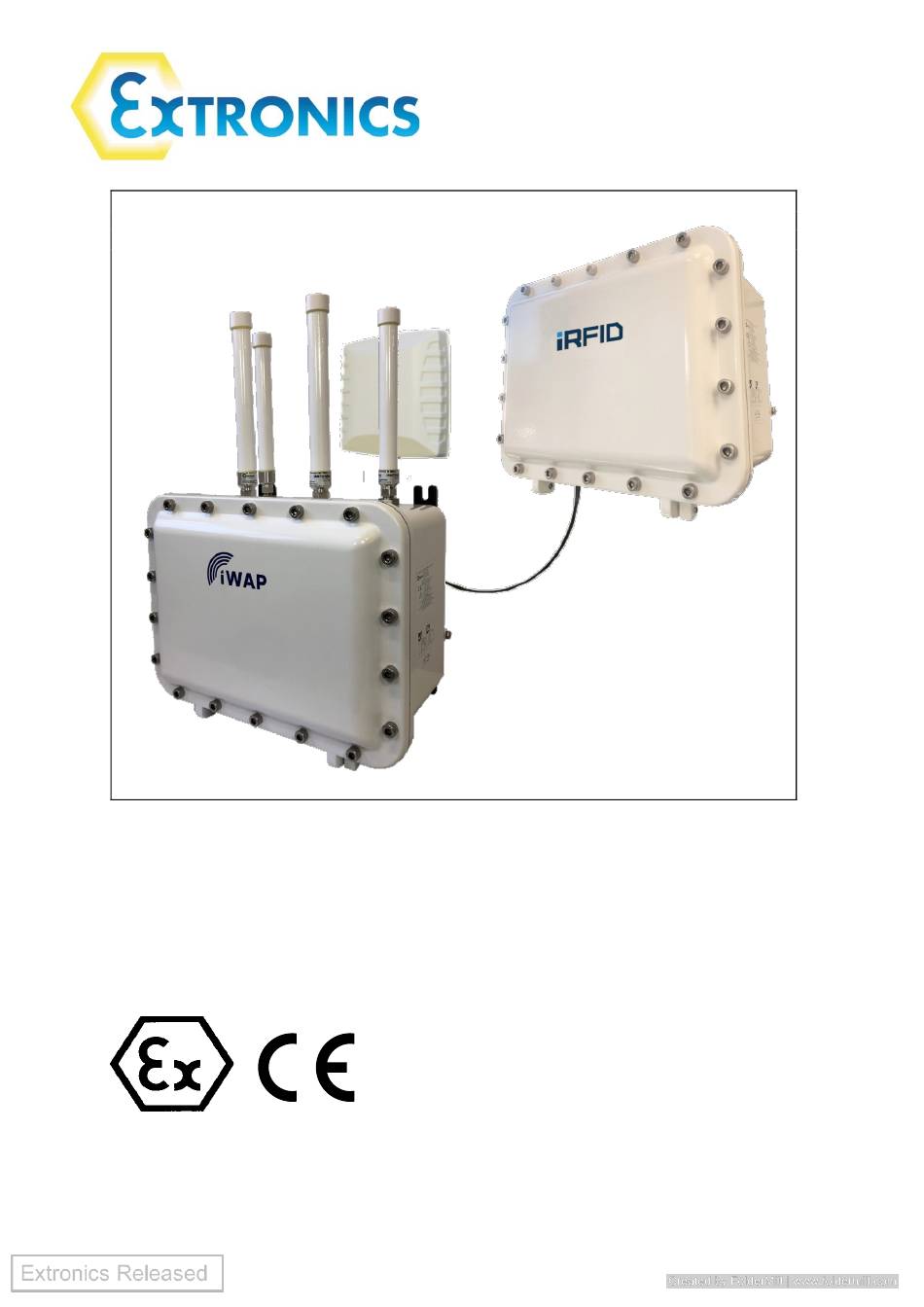

- Page 1 INSTALLATION AND OPERATING MANUAL iWAP107, iRFID107...
- Page 2 Stainless-Steel version is also available. For warranty information, refer to Terms and Conditions at http://www.extronics.com © 2022 Extronics Limited. This document is Copyright Extronics limited. Extronics reserve the right to change this manual and its contents without notice, the latest version applies.
-
Page 3: Table Of Contents
Closing the Enclosure ................11 Cable Entries ...................11 3.3.1 Typical Cable Entries and Connections ............11 Earthing ....................12 3.4.1 iWAP107/iRFID107 earth bond point (stainless steel enclosure) .....12 3.4.2 iWAP107/iRFID107 earth bond point (aluminium enclosure) ......13 Electrical Installation ................13 Power supply ...................14 Fusing .....................15 3.7.1... -
Page 4: Introduction
This assessment can be provided by Extronics or done by the user. Up to eight antennas can be utilized, allowing the MIMO functionality of the latest compatible wireless access points to be implemented, providing optimum coverage and maximum data throughput on Chemical Plants, Oil Refineries or Oil &... -
Page 5: Safety Information And Notes
2.2 Special Conditions for Safe Use 2.2.1 ATEX/IECEx 1. Contact Extronics for information on the dimensions of the flameproof joints. 2. The RF output is only to be connected to an antenna suitable for the hazardous location; refer to associated RF galvanic isolator iSOLATE501 equipment certificate (IECEx trc 15.0015X / TRAC15ATEX0050x) or iSOLATE500 equipment certificate... - Page 6 3.3 for details. Warning! Do not exceed the RF Threshold Power for the equipment group in which the iWAP107/iRFID107 and its antennas are to be installed; it must be controlled in accordance with IEC 60079-0, and must not exceed the following levels: IIC –...
- Page 7 – observe the warning labels fitted. Warning! The iWAP107/iRFID107 may weigh up to 70Kg. Exercise care when handling and mounting. Warning! DO NOT lift the iWAP107/iRFID107 using the threaded entries, N-type RF connectors or door bolts. Lift only using...
-
Page 8: Installation
DO NOT lift the iWAP107/iRFID107 using the threaded entries, N-type RF connectors or door bolts. Lift only using suitably approved slings, fitted suitably qualified personnel. Mount the iWAP107/iRFID107 enclosure to a suitable structure, using the mounting points shown. Figure 1: Aluminium Enclosure Mounting Dimensions... -
Page 9: Opening And Closing The Enclosure
M5 threaded earth point 10mm Figure 1: iWAP107/iRFID107 Stainless Steel Enclosure Mounting Points 3.2 Opening and Closing the Enclosure Important Ensure that NO TOOLS come into contact with the flamepath of the enclosure, as this may cause irreparable damage and render the unit unsafe. -
Page 10: Opening The Enclosure (Aluminium And Stainless Steel Enclosures)
This can make the enclosure lid difficult to open as the grease can cause it to stick. Extronics recommend the use of a double suction lifter. This tool is included with iWAP107/iRFID107 deliveries and is available from Extronics or hardware and builders supply stores. -
Page 11: Closing The Enclosure
3.3.1 Typical Cable Entries and Connections A typical iWAP107/iRFID107 enclosure is supplied with entries and connectors as shown in Figure 3. • Connections A-D are INTRINSICALLY SAFE outputs providing galvanically isolated RF signals (see Section 17 for details), carried on conventional 50Ω... -
Page 12: Earthing
3.4.1 iWAP107/iRFID107 earth bond point (stainless steel enclosure) There is an M5 threaded earth bond point on each of the 4 enclosure feet. Figure 4: iWAP107/iRFID107 Stainless Steel Enclosure External Earth Bond Points... -
Page 13: Iwap107/Irfid107 Earth Bond Point (Aluminium Enclosure)
Installation and Operating Manual 3.4.2 iWAP107/iRFID107 earth bond point (aluminium enclosure) Figure 5: iWAP107/iRFID107 Aluminium Enclosure Earth Bond Point 3.5 Electrical Installation Important Do not exceed the power supply parameters specified on the iWAP107/iRFID107 external rating plate. Important Only replace the fuse with the same value and type indicated on the internal fuse identification label. -
Page 14: Power Supply
Table 2: iWAP107/iRFID107 Internal Connection/Features 3.6 Power supply Important The iWAP107/iRFID107 may be powered from a number of different power sources, depending on its configuration. Refer to the rating plate of the unit supplied for details. -
Page 15: Fusing
Important Only replace the fuse with the correct type, having established the reason for the fuse blowing. The iWAP107/iRFID107 is fitted with a single fuse on the Live circuit, of either a 1A or 2A, depending its configuration. The fuse requirement for the specific model supplied is written on the top plate next to the fuse holder. -
Page 16: Data Connections
If Copper Ethernet is specified, this will be terminated in a standard CAT5E RJ45 Socket on the front plate of the iWAP107/iRFID107, Position D in Figure 6. Typically the interface will be an IEEE 10/100/1000BaseT format, but this is dependent on the access point installed. -
Page 17: Intrinsically Safe Rf Outputs
Warning! Do not exceed the RF Threshold Power for the equipment group in which the iWAP107/iRFID107 and its antennas are to be installed; it must be controlled in accordance with IEC 60079-0, and must not exceed the following levels: IIC –... -
Page 18: Example Of Rf Threshold Power Calculation
3.12 Antenna Installation Antennas approved by Extronics for use with the iWAP107/iRFID107 may either be fitted directly to the RF connectors of the iWAP107/iRFID107, or via a length of coaxial cable. If antennas are sited remotely from the iWAP107/iRFID107 flameproof enclosure, any metallic parts of the antennas must be isolated from earth by >... - Page 19 Installation and Operating Manual Figure 10: iWAP107/iRFID107 IS RF Installation Diagram...
-
Page 20: Prevention Of Electrostatic Charging
Installation and Operating Manual 3.13 Prevention of Electrostatic Charging The iWAP107/iRFID107 enclosure can build up electrostatic charge on its surfaces, so the following steps are to be followed to reduce static charge build up: Static charge build up should be reduced by: •... -
Page 21: Intended Purpose Usage
The iWAP107/iRFID107 is not designed to be subjected to excessive stresses e.g. vibration, heat, impact. Additional protection is required to protect against these external stresses. The iWAP107/iRFID107 will require additional protection if it is installed in a location where it may be subjected to damage. -
Page 22: Technical Data
Installation and Operating Manual 5 Technical Data... -
Page 23: Coin Cell Information
Installation and Operating Manual 6 Coin Cell Information Single coin cells of IEC type A, B, C, E, L and S conforming to UL 1642 or IEC 60086-4 may be fitted. These shall occupy no more than 1% of the free volume of the enclosure and have a capacity of no more than 1.5 Ah. -
Page 24: Label Drawing
Installation and Operating Manual 7 Label Drawing iWAP107/iRFID107-DDD iWAP107/iRFID107-T-DDD Where AAA=Supply voltage, BBB=Supply current, CCC=Supply Frequency, DDD=Product option codes, EEE=Notified body number for production. -
Page 25: Type Codes
Installation and Operating Manual 8 Type Codes... - Page 26 Installation and Operating Manual...
-
Page 27: Eu Declaration Of Conformity
Installation and Operating Manual 9 EU Declaration of Conformity... - Page 28 Installation and Operating Manual...
