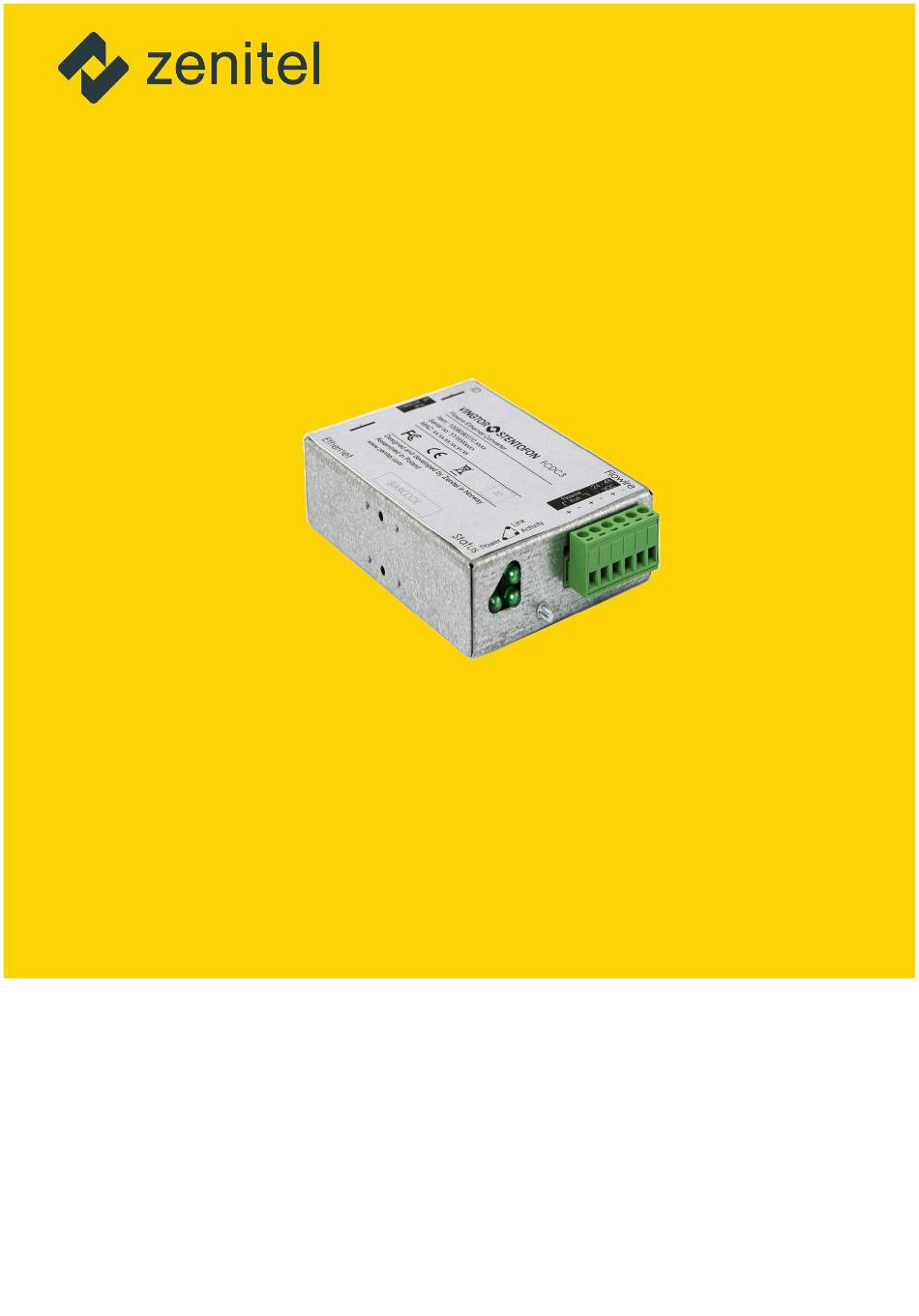

- Page 1 MARITIME & ENERGY FCDC3 FLOWIRE CONFIGURATION MANUAL A100K11958 A100K11958...
- Page 2 About this Document Document Scope This document provides a detailed guide to the system setup and configuration of the FCDC3 Flowire Converter in creating IP networks using conventional telecom star-wired infrastructure (2-wire). Relevant Products Product Description Item Name Item No.
-
Page 3: Table Of Contents
B.2 Network Management Key (NMK) Configuration .................... 19 B.3 CCo Settings ..................................20 C: Software Upgrade....................................21 C. 1 Upgrade via Web Interface on Flowire Device .....................21 D: Upgrade FCDC1/FCDC2, EAPFX, TFIX to Operate with FCDC3 ..............22 Figures Figure 1 FCDC3 Flowire Converter ......................................4 Figure 2 FCDC3 PoE Enabled and FCDC3 PoE Disabled .............................4... -
Page 4: Product Description
Ethernet port (not true PoE) if PoE-switch is in the ON position. Does not forward 48V to the spare pairs of the Ethernet port if PoE-switch is in the OFF position Figure 2 FCDC3 PoE Enabled and FCDC3 PoE Disabled A100K11958 FCDC3 Flowire Converter Configuration Manual... -
Page 5: Areas Of Application
L It is recommended to use FCDC3 with PoE enabled only when you need to power the connected device via the spare pairs of the Ethernet port. In all other situations, use the FCDC3 with PoE disabled 1.2 Areas of Application The main areas of application for the Flowire Converter are: ●... -
Page 6: Upgrading Conventional Star-Wired Infrastructure
Conventional star-wired telecom infrastructures commonly use one twisted wire pair to each telecom device. However, many systems, like AlphaCom, use two twisted pairs for each telecom device A100K11958 FCDC3 Flowire Converter Configuration Manual... -
Page 7: Power On Conventional Infrastructure
EMC. The grounding connection of the Flowire Converter should be connected to the equipment rack’s ground strip using a ground wire of at least 0.75 mm² (AWG 19). 2.4.2 Grounding of Ex-Stations Figure 5 For Ex-stations, connect the screen according to this illustration. A100K11958 FCDC3 Flowire Converter Configuration Manual... -
Page 8: Recommendations
L All multi-pair cables for one Flowire star configuration has to be gathered in the central FCDC3. This can be done directly in the FCDC3 if the plug has room for it, on connector rails or by some other means. - Page 9 PoE enabled Power Connector 2-wire Junction FCDC3 2-wire Main Distribution Fr ame PoE enabled FCDC3 2-wire PoE enabled 2-wire FCDC3 PoE enabled FCDC3 Figure 8 Flowire Upgraded configuration with local power at remote locations A100K11958 FCDC3 Flowire Converter Configuration Manual...
-
Page 10: System Configuration With Industrial & Ex Devices
The Ex device (TFIX station, EAPFX access panel) located in a hazardous zone is connected to the central equipment rack located in the safe zone using an Ex certified 2-wire shielded cable. FCDC3 is used to extend the Ethernet connection and support power distribution on the 2-wire cabling infrastructure. -
Page 11: Connections & Indications
(PLC 1 & PLC 2). L The RJ45 port on FCDC3 is NOT a PoE-compatible output Please note that the two connections (PLC 1 and PLC 2) are but DC voltage on spare pairs which is always present. It must... -
Page 12: Mounting & Recommendations
Ethernet Status 37,5 Ethernet contact Brackets for NS35 rail mount Part of the package (2pcs) Figure 10 FCDC3 Flowire Converter Dimensions DIN Mounting Clip Mounting Holes Alternate DIN Clip Holes DIN Mounting Clip Figure 11 DIN Mounting Clips To mount the Flowire Converter: ●... -
Page 13: Power Requirements
To power a Vingtor-Stentofon IP Intercom Station through its Ethernet port, we recommend at least 40V at the remote site. For land-based installations, use XP PSU for FCDC3: - XP 120 XP Power Supply Unit, 48V DC, 120W Item no. 2990101120 - XP 240 XP Power Supply Unit, 48V DC, 240W Item no. -
Page 14: Troubleshooting
The PoE voltage can be read on the device’s web interface: ● Select Device Info > PoE Voltage and Current values shown are out of the FCDC3. If you are not getting sufficient voltage for a stable connection at the remote site, you can: ●... - Page 15 If Remote is selected the log will be sent to the syslog server that is set up in Server IP Address. If Both is selected the syslog will be stored locally and sent to the syslog server. Local syslog: A100K11958 FCDC3 Flowire Converter Configuration Manual...
- Page 16 Log shown in a syslog server: Since there is no real time clock in the FCDC3, the timestamp in the device is related to the start-up time of the FCDC3. A100K11958 FCDC3 Flowire Converter Configuration Manual...
-
Page 17: B: Advanced Configuration
3. Select Advanced Setup > LAN 4. Select Disable DHCP Client 5. Enter the new IP address, Subnet Mask and Default Gateway 6. Click the Apply/Save button The device will now use its new IP address. A100K11958 FCDC3 Flowire Converter Configuration Manual... -
Page 18: Network Management Key (Nmk) Configuration
3. Enter a new password in the Network password field 4. Click Apply/Save The NMK Password may be up to 32 characters long, and is case sensitive. It is good practice to label the Flowire device with the new NMK. Default NMK: HomePlugAV0123 A100K11958 FCDC3 Flowire Converter Configuration Manual... -
Page 19: Cco Settings
If this Flowire unit fails, the star configuration will not function in any case, whether or not it is the CCo, as all other Flowire units are routed through it. In order for the FCDC3 in the rack to be configured as a CCo, it is necessary to set the device-side Flowire units to not CCo. - Page 20 Having more than 50 Flowire units in one multicluster group should also be avoided. L To avoid exceeding the limit of clusters or devices in a multicluster group sufficient physical separation should be implemented between the Flowires installed on the systems side. Figure 11 Multicluster Groups A100K11958 FCDC3 Flowire Converter Configuration Manual...
- Page 21 Interference issues are more likely to occur the more stations from other clusters that are visible. In order to reduce the number of stations associated in a multicluster group the signal output power can be reduced. There is an option for reducing signal power in the web interface. A100K11958 FCDC3 Flowire Converter Configuration Manual...
- Page 22 The available options for adjusting signal strength are -5, -10, -15 and -20 dB. The effect of reducing the power should then be seen as the number of unassociated devices go down. Do not reduce the power so much that the connection to assiciated devices is lost. A100K11958 FCDC3 Flowire Converter Configuration Manual...
-
Page 23: D: Upgrade Fcdc1/Fcdc2, Eapfx, Tfix To Operate With Fcdc3
Upgrade FCDC1/FCDC2, EAPFX, TFIX to Operate with FCDC3 In order for the FCDC1, FCDC2, TFIX, or EAPFX to be able to work with the FCDC3, you need to upgrade the software in the Flowire to at least version 4. 1 .3. 1 3 or higher. -
Page 24: C: Software Upgrade
1. Select Management > Update Software 2. Click the Choose File button and browse for the new software file 3. Click Update Software The update will take about 2 minutes. When the update is complete the FCDC3 will reboot. A100K11958 FCDC3 Flowire Converter Configuration Manual... - Page 25 ZENITEL PROPRIETARY. This document and its supplementing elements, contain Zenitel or third party information which is proprietary and confidential. Any disclosure, copying, distribution or use is prohibited, if not otherwise explicitly agreed in writing with Zenitel. Any authorized reproduction, in part or in whole, must include this legend: Zenitel – All rights reserved.
