product number
product name
10.273
CRD400 INS
Dokument
Version: 20231107
Manufacturer's address and contact details
Adress
MTC maintronic GmbH
Carl-Zeiss-Straße 10
D-97424 Schweinfurt/Germany
product designation
Casambi LED-/Retrofit Dimmer 380 VA
valid from version
H2 F1.5
Contact details
E-Mail
Web
Phone
info@maintronic.com
www.maintronic.com
0049 9721 7766-0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maintronic CRD400 INS
Summary of Contents for Maintronic CRD400 INS

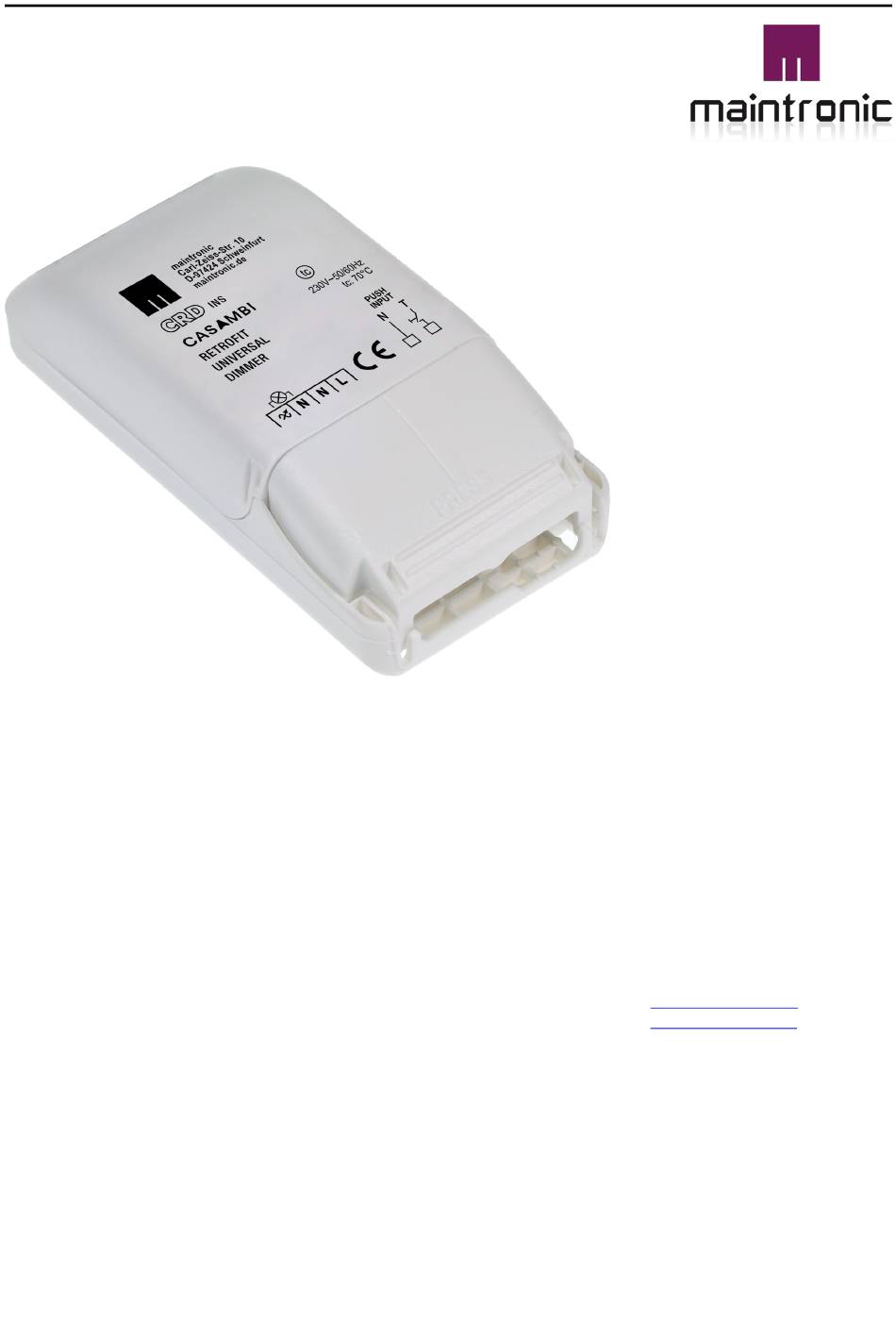

- Page 1 product number product name product designation valid from version 10.273 CRD400 INS Casambi LED-/Retrofit Dimmer 380 VA H2 F1.5 Dokument Version: 20231107 Manufacturer's address and contact details Adress MTC maintronic GmbH Contact details E-Mail info@maintronic.com Carl-Zeiss-Straße 10 www.maintronic.com D-97424 Schweinfurt/Germany...
-
Page 2: Table Of Contents
1. Notes to the instruction. CRD400 INS ........ -
Page 3: Notes To The Instruction. Crd400 Ins
1. Notes to the instruction. CRD400 INS 1.1 Applicable documents This document contains all the necessary information for using this product. Please refer to this document in partial instructions (such as installation instructions). 1.2 Usage This manual describes everything necessary for the safe and efficient use of the device. The manual is an integral part of the product and must be handed over to the end customer. -
Page 4: Used Symbols
Zero-cross switch - Device powers up or down by zero crossing of the sinewave Wireless protocol Casambi Weight in gramm DALI protocol interface Temperature ambient (ta) DALI protocol interface with device type 6 CRD400 INS - 10.273 Manual english - www.maintronic.com / 4 38... - Page 5 Number indicates the amount of relays and documentation of the respective device. 16A the switch current of the relay Relay with high inrush current - current peaks up to 165A for 20mS CRD400 INS - 10.273 Manual english - www.maintronic.com / 5 38...
-
Page 6: Storage
Dieses Handbuch wurde mit größtmöglicher Sorgfalt erstellt, es sind dennoch Fehler und Irrtümer nicht vollständig auszuschließen. Die Firma MTC maintronic GmbH übernimmt keinerlei Haftung für Personen- oder Sachschäden, die sich aus Fehlern oder Irrtümern in dieser Bedienungsanleitung herleiten oder durch Nichtbeachtung von Sicherheitshinweisen. -
Page 7: Safety . Crd400 Ins
2. Safety . CRD400 INS 2.1 General safety information Qualified personnel DANGER The unit must only be installed and serviced by a proven electrican specialist, in accordance of all relevant regulations, safety and accident prevention directives of the country. Be sure that the existing mains voltage corresponds with the specified operating voltage before operating the device. - Page 8 CE-marking The devices comply with the EU directives applicable at the time they are placed on the market. CRD400 INS - 10.273 Manual english - www.maintronic.com / 8 38...
-
Page 9: Intended Use
Version auf dem Geräteaufkleber. Die Angabe zur Version findet sich auf dem Geräteaufkleber rechts unten: 2. Stimmt die Version Ihres Gerätes nicht mit der im Handbuch unterstützen Version überein, beschaffen Sie sich das zugehörige Handbuch und verfahren nach der Anleitungen dort. CRD400 INS - 10.273 Manual english - www.maintronic.com / 9 38... -
Page 10: Not-Intended Use
Veränderungen Reparaturen Einsatz im Außenbereich Einsatz in Nasszellen MTC maintronic GmbH haftet nicht für Schäden, die durch bestimmungswidrige Verwendung des Geräts entstehen. Das Risiko hierfür trägt allein der Benutzer/Betreiber. CRD400 INS - 10.273 Manual english - www.maintronic.com 10 38... -
Page 11: Functions . Crd400 Ins
3. Functions . CRD400 INS 3.1 Performance characteristics The device can be controlled via the Casambi app, available for iOS and Android. Another optional operation ist given by the push button input. Casambi app automatically identifies the device and can be integrated into existing networks. All functions triggered by the buttons are individually configurable. -
Page 12: Sicherheitsfunktionen
In case of overtemperature automaticly derating takes place, which means the power will reduced depending on the temperature. Status-LED is indicating over temperature and the brightness of the lamps decreases. Fig.: Derating curve of the CRD400 INS Temperatures higher than 50°C are not specified in the approved ambient temperature. -
Page 13: Technical Data . Crd400 Ins
4. Technical data . CRD400 INS Specification CRD400 INS Item no. 10.273 Power supply 220 ... 240V AC 50/60Hz Rated power 4 ... 380VA Output power 0 ... +40°C Connected load 100% +40 ... +50°C Note derating Power consumption on idle / switching... -
Page 14: Installation . Crd400 Ins
5. Installation . CRD400 INS 5.1 Considerations and planning A Casambi network is a mesh network and every participant (dimmer, switches, etc.) extend the reach of the network. Casambi is based on the energy-saving Bluetooth 4.0 standard. If a module is nearby, all luminaires within range of this module can be controlled. - Page 15 - 20x LED 7.5 watts = 150 watts (nominal power of the LEDs) - plus additional charge 20% (for capacitive parts of the LED load characteristic) Result: 180 watts as total power is required. CRD400 INS - 10.273 Manual english - www.maintronic.com 15 38...
-
Page 16: Mechanical Installation
Due to the compact dimensions and the rounded shape, an easy installation is possible for all feed-through openings from 68 mm pitch circle. The integrated strain relief and terminal cover eliminates additional wiring and junction box. CRD400 INS - 10.273 Manual english - www.maintronic.com 16 38... - Page 17 CRD400 INS - 10.273 Manual english - www.maintronic.com 17 38...
-
Page 18: Electrical Installation
Input mains, phase 230V AC Input push button, neutral N Input push button, phase L - 230V AC Connection diagram Wiring 0,2...4mm² single wire 0,2...2,5mm² fine wire 0,5...2,5mm² fine wire with ferrule CRD400 INS - 10.273 Manual english - www.maintronic.com 18 38... - Page 19 Operating elements Elements Status-LED Device-button CRD400 INS - 10.273 Manual english - www.maintronic.com 19 38...
-
Page 20: Commissioning . Crd400 Ins
6. Commissioning . CRD400 INS 6.1 Operation with Casambi The device can be controlled via the Casambi app, available for iOS and Android. Another optional operation ist given by the push button input. Casambi app automatically identifies the device and can be integrated into existing networks. All functions triggered by the buttons are individually configurable. - Page 21 The following steps are necessary for this purpose: Open Casambi App Choose existing network or create a new network Go to nearby devices Add found maintronic device to a network CRD400 INS - 10.273 Manual english - www.maintronic.com 21 38...
-
Page 22: Calibration
Open dimmer settings with double click Set Unlock/Lock settings to unlocked Select a measurement method under parameter Measure Mode Select Start measurement The connected LED will now be measured again and confirmed with Done! CRD400 INS - 10.273 Manual english - www.maintronic.com 22 38... - Page 23 The cutting method with which the dimmer works can be displayed under Settings > Sensors > Leading Edge: Leading Edge = 0 > Trailing edge phase cut is used Leading Edge = 1 > Leading edge phase cut is used CRD400 INS - 10.273 Manual english - www.maintronic.com 23 38...
- Page 24 The load number is displayed next to the parameter If the result is N/A please measure again with several lamps Number of connected illuminants x displayed load number = quantity of possible illuminants CRD400 INS - 10.273 Manual english - www.maintronic.com 24 38...
-
Page 25: Operation . Crd400 Ins
7. Operation . CRD400 INS 7.1 Notes for operation Operation with Casambi The device can be controlled via the Casambi App, available for iOS and Android. Another optional control is given by the push-button input. Operation with device-button The device button (1) has the same priority as the Casambi App, the last command (action) wins. - Page 26 (Siehe nachfolgende Liste) Push Button style - possible parameters Comfort Casambi standard operations plus additional functions: Standard Standard Casambi Push button input Behavior like a standard Casambi input with Casambi standard operations CRD400 INS - 10.273 Manual english - www.maintronic.com 26 38...
-
Page 27: Sensors And Parameters
= 100%; dimming; long key; load memory level function Standard - Standard Casambi Push button input Behavior like a standard Casambi input Load Number Display load number - max. illuminants of the same type are displayed 0... digits CRD400 INS - 10.273 Manual english - www.maintronic.com 27 38... - Page 28 The parameter "System info" is derived from this error code. Leading Edge 0 > Trailing edge phase cut is used n.a. 0, 1 digit 1 > Leading edge phase cut is used n.a. = not applicable CRD400 INS - 10.273 Manual english - www.maintronic.com 28 38...
-
Page 29: Dimming Characteristics
The device works propperly under regular power quality conditions. Flicker or other visual effects may occur in case of insufficient mains conditions like fluctuations, Jitter or also power control signals. Power grid immanent effects are not a defectives of the device. Check your local grid. CRD400 INS - 10.273 Manual english - www.maintronic.com 29 38... -
Page 30: Dimming Curve
Value Type linear curve - default linear Picture added soon maintronic custom curve Picture added soon maintronic custom curve incandescent Casambi Compatibility mode Casmbi Standard Casambi Compatibility mode Casambi Log CRD400 INS - 10.273 Manual english - www.maintronic.com 30 38... - Page 31 CRD400 INS - 10.273 Manual english - www.maintronic.com 31 38...
-
Page 32: Led Flashing Pattern
Over voltage is active #-#-#-#-#-#-#- ##-----##-------------- loop #----------- Error state 3 Short circuit is active #-#-#-#-#-#-#- ##-----##-----##-------------- loop #----------- Fatal Error Shutdown by over temperature or #-#-#-#-#-#-#-#-#-#-#-#-#-#-#-#-#-#-#-#-#- loop short ciruit #-#-#-#- CRD400 INS - 10.273 Manual english - www.maintronic.com 32 38... -
Page 33: Operation With App
A toggle switch in the app acts like a conventional ON Switch and has two positions and OFF The switch remains in its position until a new switching command comes CRD400 INS - 10.273 Manual english - www.maintronic.com 33 38... - Page 34 Button A button has no fixed position but is only active as long as the button is held. CRD400 INS - 10.273 Manual english - www.maintronic.com 34 38...
-
Page 35: Operation With Push-Button Input
Open Casambi app and tap on „... More“ Open item „Switch“ Select device Scroll down do Push-buttons Choose your maintronic module with push-button inputs For example program switch with single function Select the item "Controls a luminaire" Tap on "Luminaire"... -
Page 36: Troubleshooting . Crd400 Ins
8. Troubleshooting . CRD400 INS 8.1 Reset to factory default settings The dimmer can be reset via the device button and the settings will be restored to the factory default settings. For a reset, the device must not be paired with a Casambi network. -
Page 37: Unpair Devices From Network
In the case that you no longer have access to the network and the security option "flick-unpairing" is disabled, the device must be unpaired with the utility app and thus removed from the network. CRD400 INS - 10.273 Manual english - www.maintronic.com... - Page 38 NOTE Without access to the network, there is no way of making changes to the device or removing it from a network. CRD400 INS - 10.273 Manual english - www.maintronic.com 38 38...
