- Page 1 XRD600 REG DMX-Retrofit-Dimmer Manual Item.No. 10.252 - XRD600 REG Valid from Version: Hardware: H2 Firmware: F2.2.0 Document Date: 07.04.2020 Document: 10252_MA_en_A4_XRD600REG...
-
Page 2: Table Of Contents
2.5 Disclaimer 2.6 Return consignment 3. Device properties 3.1 Intended use 3.2 Functions and features 4. Models 4.1 XRD600 REG (top-hat rail) 5. Comissioning 5.1 Measuring procedure (AdaptivDIM) 5.2 Power rating of retrofit dimmers 6. Operation via buttons 6.1 Device button 6.2 Push button input - Universal voltage input... -
Page 3: Safety Instructions
At the time of placing the devices on the market, they comply with the EU directives in the version valid for the respective device. Declarations of conformity are available for all products. The CE marking is marked on the devices and is shown in the applicable documents. www.maintronic.de info@maintronic.com... -
Page 4: Introduction
The contents of this document are for product in- maintronic product and the trust you have placed formation purposes only. Features of the products in us. We, the team of maintronic, wish you a lot of may be differing during the continuous product fun with this product. -
Page 5: Device Properties
• Control via DMX / RDM or push button input • Load types: LED retrofit, NV halogen lamps with coiled or electronic transformers and incandescent lamps • Adaptive dimming • Manual min-level • Load number display • Zero load dimming • Soft-Off • Fadetime www.maintronic.de info@maintronic.com... -
Page 6: Models

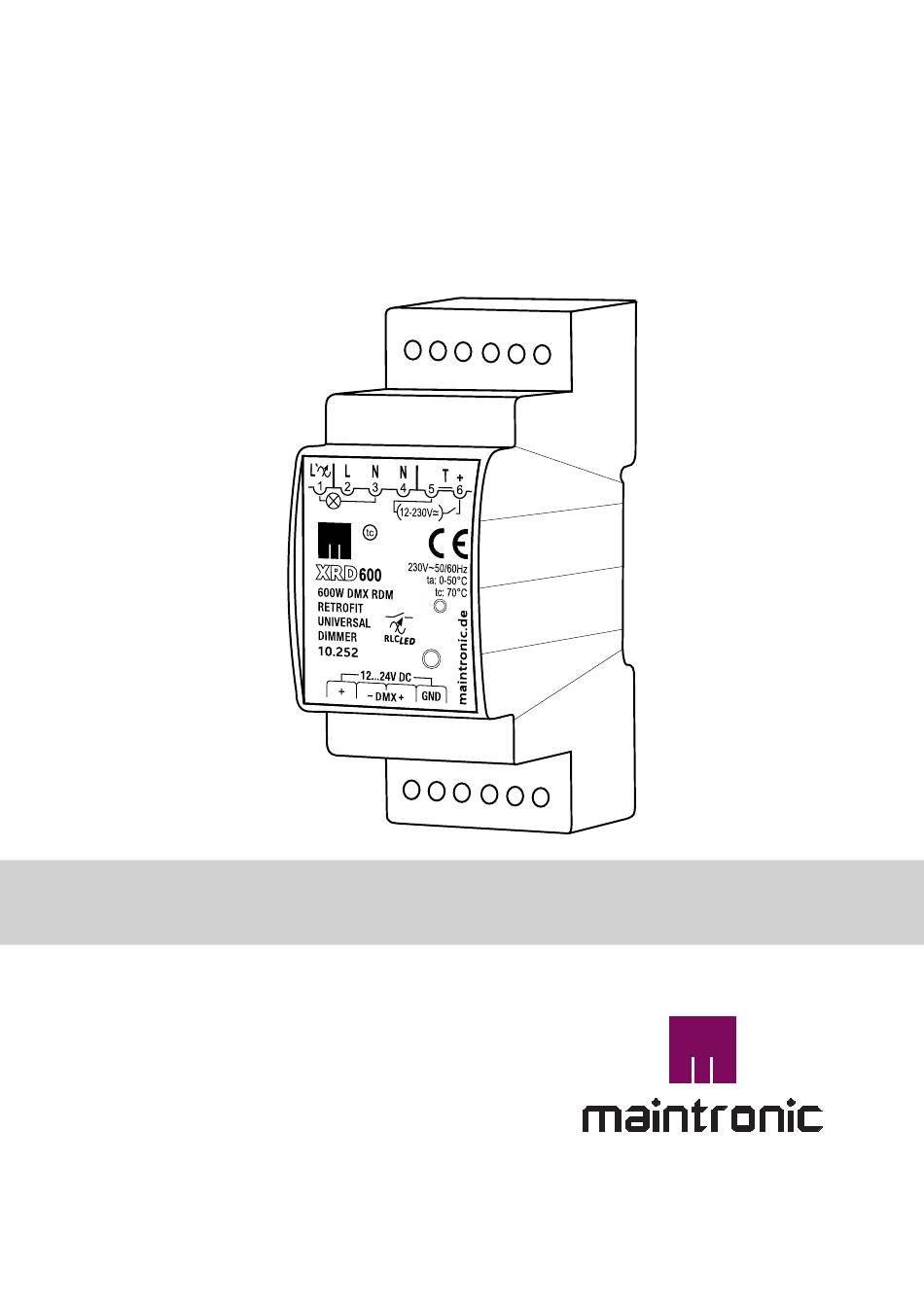

4. Models 4.1 XRD600 REG (top-hat rail) Module Item.No. Power Construction XRD600 REG 10.252 600W DIN rail housing (REG) Rail-mounted device according to DIN 43 880 for mounting on a top-hat rail in a switch cabinet (2TE = 36mm), in a junction box or small distributor (in- sulated enclosure). - Page 7 4.1.3. Connection diagram Fig. 2 - Connection diagram with push button 230 VAC Fig. 3 - Connection diagram with push button 24 VDC www.maintronic.de info@maintronic.com...
-
Page 8: Comissioning
As a rule: Example 28x 4W (rated power LED) + 20% power factor = 135 VA power to be processed. Specifi- cations depend on the light source used and may vary upwards and downwards. Manual XRD600 REG English... -
Page 9: Operation Via Buttons
So you can quickly switch from a low level to full brightness and back. Last Memory Level - The last set brightness level is saved and will be recalled at next power up. www.maintronic.de info@maintronic.com... -
Page 10: Set Min-Level Push Button
(Alternatively the min level can be configured via DMX - see 9.3) too bright, the in-level (the lowest dimming value) can be adjusted via a push button connected to the push button input. Perform the configuration with the following steps: Manual XRD600 REG English... -
Page 11: Commissioning And Diagnosis
1x short; pause; 1x long for 0 --------- 3x short; pause; and 5x short NOTE - A load number is only available for load type LED. The integrated load number display is a recommendation and helps to determine the maximum number of lamps. www.maintronic.de info@maintronic.com... -
Page 12: Start New Measument With The Device Button
; Dimming curve (fixed LED curve) * Factory setting ; Dimming curve (automatic) ; Dimming curve (fixed) To leave a set corridor mode, it is necessary to perform corridor mode a factory reset. Reset reset to factory default settings Manual XRD600 REG English... -
Page 13: Operation Via Dmx
One se- address. In the delivery state, the start address (of cond after the last DMX signal has been the device) is preset to 1. The module uses one received, the button inputs are reactivated DMX channel. again. www.maintronic.de info@maintronic.com... -
Page 14: Assign Dmx Start Address
3 times in succession. The address is displayed as a digit, for each digit the LED flashes as often as the value of the digit is. For the digit 0 the LED flashes long. Manual XRD600 REG English... -
Page 15: Dmx Parameters
(load jumps to 100%, 7%, 100% for half a sec- ond each), then the LED flashes consistently. NOTE - If the programming does not take place after 10 minutes, the programming mode will be exited and the device is back in normal operation. www.maintronic.de info@maintronic.com... -
Page 16: Operating Notes
1 DMX channel; power supply via external power supply unit 12 - 24V DC is required parallel connection of modules possible Alternative Ansteuerung Push button input (Universal voltage) 12...230V AC oder DC Detailed technical data can be found in the data sheet of the product. Manual XRD600 REG English... -
Page 17: Led Indicator
LED - dimmed Device LED OFF = Off Load type with leading edge Load type with trailing edge Device button External push button input Time for a key press in this case, press the button for more than 2 sec. www.maintronic.de info@maintronic.com... - Page 18 Carl-Zeiss-Str. 10-14 Tel. +49(0)9721-7766 0 www.maintronic.de 97424 Schweinfurt / Germany Fax. +49(0)9721-7766 18 info@maintronic.de...
