DeWalt DXGNP30E Owner's Manual

Hide thumbs

Advertisement

Quick Links

DXGNP30E
DXGNP35E
DXGNP65E
Generator Ow
DXGNP85E
DXGNP853E
n
r e
's Manual

Advertisement

loading

Related Manuals for DeWalt DXGNP30E

Summary of Contents for DeWalt DXGNP30E

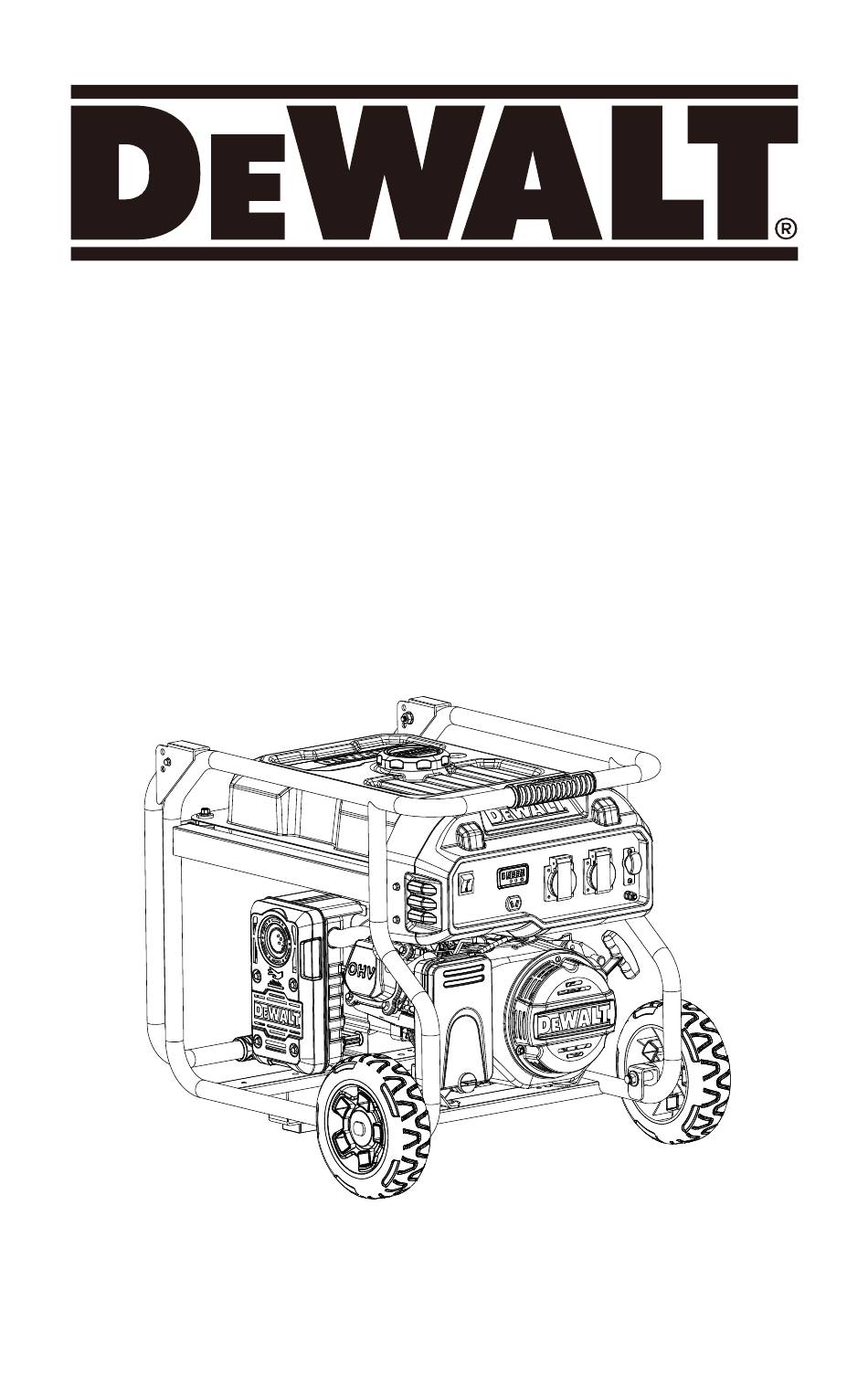

  • Page 1 DXGNP30E DXGNP85E DXGNP35E DXGNP853E DXGNP65E Generator Ow ’s Manual...
  • Page 3 SAFETY /SÉCURITÉ / SICHERHEIT/ SICUREZZA / SEGURIDAD / SEGURANÇA / VEILIGHEID Perform a visual inspection of the external and internal components. Effectuez une inspection visuelle des composants externes et internes. Führen Sie eine Sichtprüfung der externen und internen Komponenten durch Eseguire un’ispezione visiva dei componenti esterni e interni.
  • Page 4 SAFETY /SÉCURITÉ / SICHERHEIT/ SICUREZZA / SEGURIDAD / SEGURANÇA / VEILIGHEID The exhaust gases contain carbon monoxide. This gas is colorless and odorless and is very dangerous. NEVER USE THE EQUIPMENT IN A LOCATION CLOSED OR WITH POOR VENTILATION. Les gaz d’échappement contiennent du monoxyde de carbone. Ce gaz est incolore et incolore et est très dangereux.
  • Page 5 SAFETY /SÉCURITÉ / SICHERHEIT/ SICUREZZA / SEGURIDAD / SEGURANÇA / VEILIGHEID The guarantee is automatically canceled if you do not follow the described start and stop process. La garantie est automatiquement annulée si vous ne suivez pas le processus de démarrage et d’arrêt décrit.
  • Page 6 SAFETY /SÉCURITÉ / SICHERHEIT/ SICUREZZA / SEGURIDAD / SEGURANÇA / VEILIGHEID Good quality oil and fuel are imperatives for using the equipment. Une huile et un carburant de bonne qualité sont impératifs pour l’utilisation de l’équipement. Für die Verwendung der Geräte sind Öl und Kraftstoff von guter Qualität unerlässlich. Olio e carburante di buona qualità...
  • Page 7 SAFETY /SÉCURITÉ / SICHERHEIT/ SICUREZZA / SEGURIDAD / SEGURANÇA / VEILIGHEID The exhaust temperature is high during use of the equipment and remains warm even after the generator is turned off. Be careful not to touch the hot exhaust and wait for the equipment to cool down before moving it.
  • Page 8 SAFETY /SÉCURITÉ / SICHERHEIT/ SICUREZZA / SEGURIDAD / SEGURANÇA / VEILIGHEID Never place the generator in an inclined or vertical position, to avoid fuel loss and equipment damage. Ne placez jamais le générateur en position inclinée ou verticale pour éviter les fuites de carburant et les dommages à...

  • Page 10: Table Of Contents

    Components and Controls Table of Contents Safety ............3 Maintenance ..........16 Setup ............5 Storge ...........19 Componets and controls......6 Troubleshooting ........20 Specifications ..........22 Operation ........... 10 Definitions: Safety Guidelines The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.
  • Page 11 INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS WARNING – When using tools, basic precautions should always be followed, including the following: Setup Precautions 1. Gasoline fuel and fumes are flammable, and 9. Improper connections to a building electrical potentially explosive.

  • Page 12: Safety

    SAFETY Operating Precautions 8. Do not touch engine during use. Let engine CARBON MONOXIDE HAZARD cool down after use. Using a generator indoors CAN KILL YOU IN MINUTES. 9. Never store fuel or other flammable materials Generator exhaust contains carbon near the engine.
  • Page 13 SAFETY 18. Only use a suitable means of transport and 29. Parts, especially exhaust system components, get very hot during use. Stay clear of hot parts. lifting devices with sufficient weight bearing capacity when transporting the generator. 30. Do not cover the generator or its engine during operation.

  • Page 14: Setup

    SETUP Service Precautions 9. Store equipment out of the reach of children. 1. Before service, maintenance, or cleaning: a. Unplug all devices from the generator. 10.Follow scheduled engine and equipment b. Turn the engine switch to its “OFF” position. maintenance. c.

  • Page 15: Componets And Controls

    Components and Controls Fuel Cap Control Panel Recoil Starter Air Filter Fuel Valve Muffler Wheel Handle (Battery)
  • Page 16 Components and Controls (cont.) The following are descriptions of the controls WARNING! Connect tools and equipment on the control panel. Your generator has only to the Receptacle (230 volt or 400 /230 v olt) sockets to power your products with circuit that is compatible with the electrical breakers to protect the voltage flow.

  • Page 17: Operation

    Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. TO PREVENT SERIOUS INJURY: Operate only with proper spark arrestor installed. Operation of this equipment may create sparks that can start fires around dry vegetation. A spark arrestor may be required.
  • Page 18 High Altitude Operation Above 1000 m WARNING! TO PREVENT SERIOUS INJURY FROM FIRE: Carry out adjustments in a well-ventilated area away from ignition sources. If the engine is hot from use, shut the engine off and wait for it to cool before proceeding. Do not smoke. NOTICE Warranty void if necessary adjustments are not made for high altitude use.
  • Page 19 Operating Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Inspect tool before use, looking for damaged, loose, and missing parts. If any problems are found, do not use tool until repaired.
  • Page 20 Before Starting the Generator Engine Before starting the engine: a. Follow the Set Up Instructions to prepare the Generator. b. Unplug all loads from the Generator. c. Inspect the Generator and engine. d. Fill the engine with the proper amount and type of both fuel and oil. Basic Generator Use Procedure - See following pages for specific instructions 1.
  • Page 21 Starting the Engine 1. Open the Fuel Valve. 2. For MANUAL START a.Turn the Engine Switch to ON. b.To start a cold engine, move the Choke to the CHOKE position. To restart a warm engine, leave the Choke in the RUN position. c.Grip the Starter Handle of the Engine loosely and pull it slowly several times to allow the gasoline to flow into the Engine’s carburetor.
  • Page 22 b.Turn the Engine Switch to START. Note: To prolong starter life, use short starting cycles (5 seconds maximum). Then wait one minute before attempting to start again. c. Allow the Engine to run for several seconds. Then, if the Choke lever is in the CHOKE position, move the Choke Lever very slowly to its RUN position.
  • Page 23 Connecting Electrical Loads Familiarize yourself with the engine controls, power panel and how to start the engine before using the generator. Calculate the wattage of the products you will use with the generator and verify that the generator can handle the total load. WARNING! Connect only properly wired plugs to the generator.
  • Page 24 Stopping the Engine in an Emergency 1. To stop the engine in an emergency, turn the Engine Switch off. NOTICE: Generator shut-off under load may damage the generator and attached equipment. Stopping the Engine Under Normal Conditions 1. Before turning off the Engine, turn off all electrical loads, then unplug them. 2.
  • Page 25 User-Maintenance Instructions Procedures not specifically explained in this manual must be performed only by a qualified technician. TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn the Power Switch of the generator to its “OFF” position, wait for the engine to cool, and disconnect the spark plug cap before performing any inspection, maintenance, or cleaning procedures.
  • Page 26 Checking and Filling Fuel WARNING! TO PREVENT SERIOUS INJURY FROM FIRE: Fill the fuel tank in a well-ventilated area away from ignition sources. If the engine is hot from use, shut the engine off and wait for it to cool before adding fuel. Do not smoke.

  • Page 27: Maintenance

    Air Filter Element Maintenance 1. Remove the air filter cover and the air filter elements and check for dirt. Clean or replace as described below. 2. Wash the element in warm water and mild detergent several times. Rinse. Squeeze out excess water and allow it to dry completely.
  • Page 28 Storage When the equipment is to remain idle for longer than 20 days, prepare the engine for storage as follows: 1. CLEANING： Wait for engine to cool, then clean engine with dry cloth. NOTICE: Do not clean using water. The water will gradually enter the engine and cause rust damage.

  • Page 29: Troubleshooting

    Troubleshooting Problem Possible Causes Probable Solutions Engine will FUEL RELATED: FUEL RELATED: not start 1. No fuel in tank or fuel valve closed. 1. Fill fuel tank and open fuel valve. 2. Choke not in CHOKE position, cold 2. Move Choke to CHOKE position. engine.
  • Page 30 Troubleshooting (cont.) Problem Possible Causes Probable Solutions 1. Spark plug cap loose. 1. Check wire connections. 2. Incorrect spark plug gap or 2. Re-gap or replace spark plug. Engine misfires damaged spark plug. 3. Replace spark plug cap. 3. Defective spark plug cap. 4.

  • Page 31: Specifications

    SPECIFICATIONS Generator Model DXGNP30E DXGNP35E DXGNP65E DXGNP85E DXGNP853E Type Single cyclinder,four stroke, horizontal shaft output,the gasoline engine Displacement Bore×stroke(mm) 70x55 70x58 90x66 92x69 92x69 Compression ratio 8.7:1 8.7:1 8.5:1 8.5:1 8.5:1 Engine Recoil start Recoil start and electric start Starting system T.C.I...
  • Page 32 Certifie ici que • Certifica que as seguintes • Verklaart hierbij dat het navolgende • Con la presente certifica che il seguente Generadore • Generator • Stromerzeuger • Groupe Électrogène • Gerador • Stroomgenerator • Generatore DXGNP30E, DXGNP35E, DXGNP65E, DXGNP85E, DXGNP853E Cumple con las especificaciones de la directiva de la máquina y las modificaciones posteriores • Is in compliance with the specifications of the machine directive and subsequent modifications •...
  • Page 33 Belgique et WALT ‑ Belgium BVBA Tel: NL 32 15 47 37 63 www.dewalt.be Luxembourg België en Luxemburg enduser.BE@sBDinc.com Egide Walschaertsstraat 16 Tel: FR 32 15 47 37 64 2800 Mechelen Fax: 32 15 47 37 99 Danmark WALT (Stanley Black&Decker AS) Tel: 70 20 15 10 www.dewalt.dk kundeservice.dk@sbdinc.com Roskildevej 22 Fax: 70 22 49 10 2620 Albertslund Deutschland WALT Tel: 06126‑21‑0...
  • Page 36 Manufactured and distributed by ; Kat Power International, S.L. Avda.Alguema 6C 17771 Sta. Llogaia Alguema, SPAIN DeWALT®, GUARANTEED TOUGH ® and the yellow and black color scheme are trademarks the DeWALT Industrial Tool Co., used under license. G9304G3401010...
