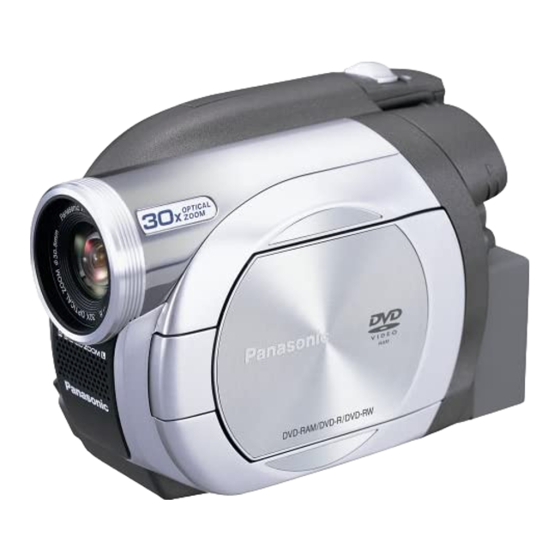

Panasonic VDR-D100EB Service Manual

Digital video camcorder
Hide thumbs Also See for VDR-D100EB:
Table of Contents

Advertisement

Quick Links

Download this manual

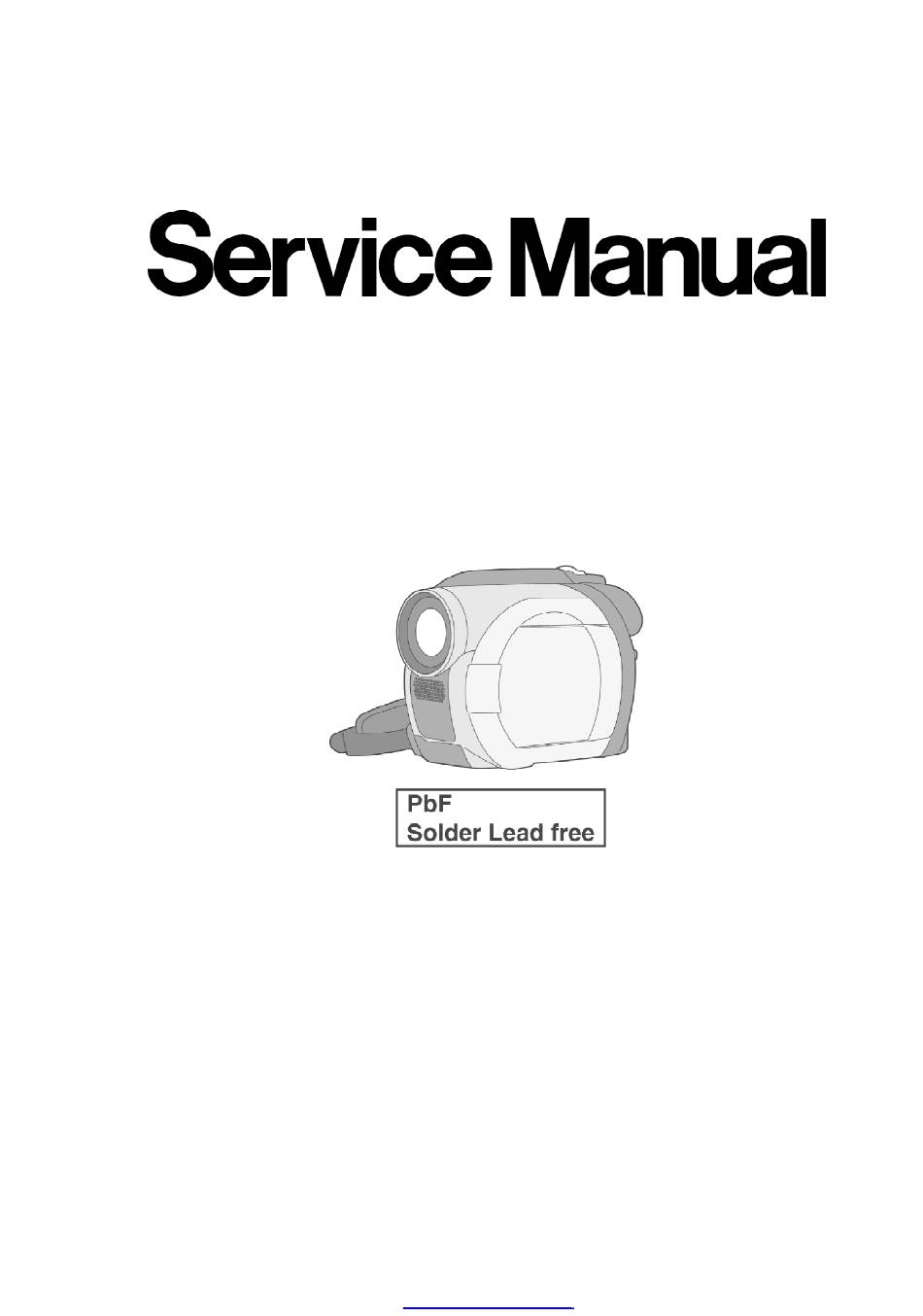

ORDER NO. VM0602006CE
Digital Video Camcorder
VDR-D100EB VDR-D100EG / VDR-D150E VDR-D150EB / VDR
-D150EE VDR-D150EF / VDR-D150EG VDR-D150EP / VDR-
D150GC VDR-D150GCS / VDR-D150GN VDR-D150SG / VDR-
D152EG VDR-D158GK
Vol. 1
Colours
(S)...................Silver Type
SPECIFICATIONS
1
PDF created with pdfFactory Pro trial version
www.pdffactory.com

Advertisement

Table of Contents
loading

Related Manuals for Panasonic VDR-D100EB

Summary of Contents for Panasonic VDR-D100EB

  • Page 1 ORDER NO. VM0602006CE Digital Video Camcorder VDR-D100EB VDR-D100EG / VDR-D150E VDR-D150EB / VDR -D150EE VDR-D150EF / VDR-D150EG VDR-D150EP / VDR- D150GC VDR-D150GCS / VDR-D150GN VDR-D150SG / VDR- D152EG VDR-D158GK Vol. 1 Colours (S)....Silver Type SPECIFICATIONS PDF created with pdfFactory Pro trial version...

  • Page 2: Safety Precautions

    2006 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. 1. Safety Precautions 1.1. General Guidelines 1. IMPORTANT SAFETY NOTICE There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic Diagrams, Circuit Board Layout, Exploded Views and Replacement Parts List.

  • Page 3: Sensitive (Es) Devices

    Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD).

  • Page 4: Caution For Ac Cord / (Vja0940 Type)

    If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety.

  • Page 5: How To Replace The Lithium Battery

    Instructions.") NOTE: This Lithium battery is a critical component. (Type No.: ML-621S/ F9D Manufactured by Panasonic.) (Not supplied) It must never be subjected to excessive heat or discharge. It must therefore only be fitted in equipment designed specifically PDF created with pdfFactory Pro trial version...

  • Page 6: Service Navigation

    for its use. Replacement batteries must be of the same type and manufacture. They must be fitted in the same manner and location as the original battery, with the correct polarity contacts observed. Do not attempt to re-charge the old battery or re-use it for any other purpose.

  • Page 7: About Lead Free Solder (Pbf)

    However, the AC Adaptor replacement part number is DE-974HA which should be used when ordering. 2. VSK0561 is indicated on AC Adaptor used in the following models: VDR-D100EB, VDR-D100EG, VDR-D150E, VDR-D150EB, VDR- D150EE, VDR-D150EF, VDR-D150EG, VDR-D150EP, VDR-D150GC, VDR-D150GCS, VDR-D150GN, VDR-D150SG, and VDR-D152EG.

  • Page 8: Location Of Controls And Components

    5. Location of Controls and Components Followings are the Operation Guide for VDR-D100EB/D150EB as a sample. For other models, refer to each original Operation Guide. PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 9 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 10 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 11 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 12 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 13 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 14 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 15 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 16 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 17 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 18 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 19 PDF created with pdfFactory Pro trial version www.pdffactory.com...

  • Page 20: Service Mode

    6. Service Mode 6.1. Error Display "PUSH THE RESET SWITCH" is displayed automatically on the EVF or the LCD Monitor when an undesirable condition has occurred. Fig. 1 PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 21 Note: When "PUSH THE RESET SWITCH" is displayed repeatedly, service is required. Check the Error Code which is listed in the Service Menu. 6.2. Service Menu When abnormal detection contents are confirmed, do the following operation. Automatic diagnosis code will bedisplayed. (Service Menu) To enter the Service Menu Push the [DELETE], [JOYSTICK CONTROL LEFT] and [RECORDING START/STOP] simultaneously for 3 seconds (with no SD Card...

  • Page 22: Service Fixture And Tools

    7. Service Fixture & Tools 7.1. Service Fixture and Tools PDF created with pdfFactory Pro trial version www.pdffactory.com...

  • Page 23: Service Position

    7.2. Service Position 7.2.1. Extension Cables for Service Position Using the following Extension Cables, place the unit as shown for check and service. Note : 1. The LCD open/close Switch is for changing between LCD Display or EVF Display. When turning on EVF Display, place some paper or tape, etc.
  • Page 24 2. To eject the DVD manually, slide the Lock lever on the Disc Cover Lock Unit for a short time. 3. Use a grounded ESD wrist strap while disassembling the Lens portion. 4. Connect the F.P.C.s to the connectors, verifying the direction of F.P.C.s as shown.
  • Page 25 Force) Connector Removal/Installation of F.P.C. from the Non ZIF (Zero Insertion Force) connector: 1. The Non ZIF connectors and the ZIF connectors are used on the unit. And there are 2 types (Type A, Type B) of Non ZIF connectors. 2.

  • Page 26: Method For Ejecting The Dvd Tray Manually

    7.4. Method for Ejecting the DVD Tray Manually Perform the following procedures; 1. Remove the 6 Screws, and remove the Top Cover Unit. (Refer to "Disassembly and Assembly Instructions.") 2. Slide the Lock Lever to open the Disc Cover. 3. Remove the Disc. Fig.

  • Page 27: Cabinet Section

    SENSITIVE (ES) DEVICES" section of this service manual. 7.7. IC6001 REPLACEMENT NOTE Two types of IC6001 (FLASH or MASK) are used on a running change basis, however MASK TYPE of IC6001 is supplied only as a replacement part. Perform the addtion (R6010 and R6029) and also deletion (R6009 and R6030) of the following part simultaneously, when exchanging from the "FLASH TYPE"...

  • Page 28: Measurements And Adjustments

    Note : 1. When removing the cabinet, work with care so as not to break the Locking Tabs. 2. Place a cloth or some other soft material under the P.C. Boards or Unit to prevent damage. 3. When reinstalling, ensure that the connectors are connected and electrical components have not been damaged.

  • Page 29: Com Mode

    9.1.2. Installation of USB-SERIAL driver Execute the "Setup.exe" file in "ComMass" folder by double clicking to install the USB-SERIAL driver. 9.1.3. COM Mode If a Disc or SD Card is inserted, remove before operation. To enter the PC connection (COM) mode, push the [DELETE], [RECORDING START/STOP] and [JOYSTICK CONTROL UP] simultaneously for 3 seconds without connecting the USB Cable.
  • Page 30 1. Turn on the PC and install the PC-EVR Adjustment Program into the PC. 2. Execute the "kdr2006.exe" file by double clicking to start up the PC-EVR Adjustment Program. The main menu will be displayed. 3. Select the appropriate model. 4.

  • Page 31: Maintenance

    Note: The adjusted data is stored in the EEPROM IC after each adjustment. 7. After adjustment, to close the software, select "Exit" in the File menu or close the window. Fig. E2-4 8. To release the PC connection (COM) mode, push the [DELETE], [RECORDING START/STOP] an [JOYSTICK CONTROL UP] simultaneously for 3 seconds without connecting the USB Cable.

  • Page 32: Printed Circuit Board

    10.2. Cleaning disc and optical pickup 11. Block Diagrams 12. Schematic Diagrams 12.1. SCHEMATIC DIAGRAM & CIRCUIT BOARD LAYOUT NOTES 12.2. FRONT SCHEMATIC DIAGRAM 12.3. SIDE R SCHEMATIC DIAGRAM 12.4. LCD BACKLIGHT SCHEMATIC DIAGRAM 12.5. JACK / EVF BACKLIGHT / DISK COVER LOCK SCHEMATIC DIAGRAMS 12.6.
  • Page 33 14.2. FRONT CASE, MAIN P.C.B. AND JACK P.C.B. SECTION PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 34 14.3. SIDE CASE R AND LCD SECTION PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 35 14.4. CCD AND LENS SECTION PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 36 14.5. REAR CASE AND EVF SECTION PDF created with pdfFactory Pro trial version www.pdffactory.com...

  • Page 37: Packing Parts And Accessories Section

    14.6. PACKING PARTS AND ACCESSORIES SECTION PDF created with pdfFactory Pro trial version www.pdffactory.com...

  • Page 38: Replacement Parts Lists

    15. Replacement Parts Lists BEFORE REPLACING PARTS, READ THE FOLLOWING: 1. Use only original replacement parts: To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list. PDF created with pdfFactory Pro trial version www.pdffactory.com...
  • Page 39 3. Definition of Parts supplier: A. Parts with mark "SPC" in the Remarks column are supplied from Spare Parts Center of Panasonic AVC Company. B. Parts without mark in the Remarks column are supplied from PSEC.

  • Page 40: Mechanical Replacement Parts List

    15.1. MECHANICAL REPLACEMENT PARTS LIST Definition of Parts supplier: 1. Parts with mark "SPC" in the Remarks column are supplied from Spare Parts Center of Panasonic AVC Company. 2. Parts without mark in the Remarks column are supplied from PSEC.
  • Page 41 Ref. No. Part No. Part Name & Description Remarks LSMD0818 LENS HOLDER LSYK1621 REAR CASE UNIT,ABS RESIN LSYK1622 EVF UNIT LSYK1648 SIDE CASE R UNIT,ABS RESIN 100EB/EG LSYK1631 SIDE CASE R UNIT,ABS RESIN 150E/EB/EF/EG/ EP/EE/GC/GN/ GCS/ SG,152EG,158GK LSYK1634 LCD SHAFT CASE UNIT,ABS RESIN LSYK1757 LCD CASE A UNIT,ABS RESIN 100EB/EG...
  • Page 42 Ref. No. Part No. Part Name & Description Remarks LSQT1044-A INSTRUCTION BOOK (PORTUGUESE/SPANISH) 150E LSQT1045-A INSTRUCTION BOOK (SWEDISH/DANISH) 150E LSQT1043-A INSTRUCTION BOOK (GERMAN/FRENCH) 150EF LSQT1041-A INSTRUCTION BOOK (GERMAN/FRENCH) 150EG,152EG LSQT1042-A INSTRUCTION BOOK (ITALIAN/DUTCH) 150EG,152EG LSQT1046-A INSTRUCTION BOOK (ENGLISH/POLISH) 150EP LSQT1047-A INSTRUCTION BOOK (CZECH/HANGARIAN) 150EP LSQT1051-A...

  • Page 43: Service Fixtures And Tools

    Ref. No. Part No. Part Name & Description Remarks LSEP8316C1 FRONT P.C.B. RTL 150E/EB/EF/ EG/EP/EE/GC/GN /GCS/ SG,152EG,158GK LSEP8317A1 JACK P.C.B. LSEP8318A1 LIQUID CRYSTAL DISPLAY BACKLIGHT P.C.B. NR LSEQ0805 CCD P.C.B. NR LSEP8339A1 SIDE R P.C.B. RTL 100EB/EG LSEP8339B1 SIDE R P.C.B. RTL 150E/EB/EF/ EG/EP/EE/GC/GN /GCS/...

  • Page 44: Integrated Circuits

    Ref. No. Part No. Part Name & Description Remarks LSEP8314P1 MAIN P.C.B. E.S.D. RTL 100EB/EG,150E/ EB/EF/EG/ EP,152EG LSEP8314Q1 MAIN P.C.B. E.S.D. RTL 150EE/GC/GN/ GCS/SG,158GK LSEP8316A1 FRONT P.C.B. RTL 100EB/EG LSEP8316C1 FRONT P.C.B. RTL 150E/EB/EF/ EG/EP/EE/GC/GN /GCS/ SG,152EG,158GK LSEP8317A1 JACK P.C.B. LSEP8318A1 LIQUID CRYSTAL DISPLAY BACKLIGHT P.C.B.
  • Page 45 Ref. No. Part No. Part Name & Description Remarks R4802 D0GA472JA015 MGF CHIP 1/16W 4.7K R4803 D0GA223JA015 MGF CHIP 1/16W 22K R4804 D0GA333JA015 MGF CHIP 1/16W 33K R4805 ERJ2GEJ124X MGF CHIP 1/16W 120K R4806 D0GA333JA015 MGF CHIP 1/16W 33K R4807 D0HA392ZA001 MGF CHIP 1/16W 3.9K R4808...
  • Page 46 DIODES Ref. No. Part No. Part Name & Description Remarks D7001 MAZM068H0L DIODE ZENER CHIP 6.8V D7002 MAZM068H0L DIODE ZENER CHIP 6.8V RESISTORS Ref. No. Part No. Part Name & Description Remarks R7001 D0GA122JA015 MGF CHIP 1/16W 1.2K R7002 ERJ2GE0R00X MGF CHIP 1/16W 0 R7003 ERJ2GE0R00X...
  • Page 47 Ref. No. Part No. Part Name & Description Remarks Q8101 2SD1819ARL TRANSISTOR SI NPN CHIP Q8102 2SD1819ARL TRANSISTOR SI NPN CHIP Q8103 2SD1819ARL TRANSISTOR SI NPN CHIP Q8104 2SD1819ARL TRANSISTOR SI NPN CHIP Q8105 XP0450100L TRANSISTOR COMPLX CMP SI NPN CHIP Q8106 XP0440100L TRANSISTOR COMPLX CMP SI PNP CHIP...
  • Page 48 Ref. No. Part No. Part Name & Description Remarks C8101 F1H1H330A230 C CHIP 50V 33PF C8102 F1H1H330A230 C CHIP 50V 33PF C8103 F1H1H330A230 C CHIP 50V 33PF C8104 F1J1C2250003 C CHIP 16V 2.2UF C8105 F1J1C2250003 C CHIP 16V 2.2UF C8106 F1H1C104A041 C CHIP 16V 0.1UF C8107...
  • Page 49 Ref. No. Part No. Part Name & Description Remarks R6301 ERJ3GEYJ220V MGF CHIP 1/16W 22 150E/EB/EF/EG/ EP/EE/GC/GN/ GCS/ SG,152EG,158GK R6302 ERJ3GEYJ220V MGF CHIP 1/16W 22 150E/EB/EF/EG/ EP/EE/GC/GN/ GCS/ SG,152EG,158GK R6303 ERJ3GEYJ220V MGF CHIP 1/16W 22 150E/EB/EF/EG/ EP/EE/GC/GN/ GCS/ SG,152EG,158GK R6304 ERJ3GEYJ220V MGF CHIP 1/16W 22 150E/EB/EF/EG/...

  • Page 50: Pin Headers

    Ref. No. Part No. Part Name & Description Remarks C6301 F3F0J226A032 TANTALUM CHIP 6.3V 22UF 150E/EB/EF/EG/ EP/EE/GC/GN/ GCS/ SG,152EG,158GK C6302 F1H1C104A041 C CHIP 16V 0.1UF 150E/EB/EF/EG/ EP/EE/GC/GN/ GCS/ SG,152EG,158GK C6303 F1H1C104A041 C CHIP 16V 0.1UF 150E/EB/EF/EG/ EP/EE/GC/GN/ GCS/ SG,152EG,158GK C6304 F1H1H330A230 C CHIP 50V 33PF 150E/EB/EF/EG/...
  • Page 51 Ref. No. Part No. Part Name & Description Remarks SW6301 K0F111A00472 PUSH SWITCH SW6302 K0D113B00087 SWITCH SLIDE MISCELLANEOUS Ref. No. Part No. Part Name & Description Remarks K1NA09E00063 SD UNIT 150E/EB/EF/EG/ EP/EE/GC/GN/ GCS/ SG,152EG,158GK 15.2.5. OPEN SWITCH P.C.B. SWITCHES Ref. No. Part No.
  • Page 52 R7001 R7002 R7003 R7004 Miscellaneous B7001 BT7001 JK7001 JK7002 R7003 TP7001 R7004 FL7001 B7001 TP7002 R7002 D7002 L7004 JK7001 S-VIDEO L7002 C7002 L7005 /VIDEO L7001 /AUDIO L7003 C7001 JACK LSJB8317 LSJB8317 (DUAL PATTERNS) (DUAL PATTERNS) JACK P.C.B. LSEP8317A1 VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
  • Page 53 C8110 D8105 C8104 R8118 C8105 C8105 R8119 C8106 R8120 R8119 Q8106 C8106 R8116 Q8104 R8113 R8117 D8107 Q8105 R8115 R8114 FP8102 R8122 C8104 R8125 R8126 Q8107 Q8108 R8121 LSJB8318 LSJB8318 (DUAL PATTERNS) LCD BACKLIGHT P.C.B. LSEP8318A1 (DUAL PATTERNS) VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
  • Page 54 C6305 R6323 C6306 R6324 C6307 R6325 LSJB8339 C6308 Miscellaneous LSJB8339 C6310 U6301 OPEN SWITCH P.C.B. LSEP8340A1 (COMPONENT SIDE) (FOIL SIDE) LCD OPEN /CLOSE SW8301 LSJB8340 LSJB8340 SIDE R P.C.B. LSEP8339A1/LSEP8339B1 (DUAL PATTERNS) OPEN SWITCH P.C.B. LSEP8340A1 (DUAL PATTERNS) VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
  • Page 55 The Number of pins of the Connector. POWER SUPPLY P.C.B. MAIN P.C.B. P1503 P3004 (10 Pins) Connector No. on Main P.C.B. SCHEMATIC DIAGRAM & CIRCUIT BOARD LAYOUT NOTES VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF /VDR-D150EG/VDR-D150EP/VDR-D150EE/VDR-D150GC/VDR-D150GN /VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
  • Page 56 [1608] C6505 D6503 MA3S132D0L Q6501 [SSMINI] 2SD10300SL Q6502 R6504 (SWITCHING) 2SD2216J08 [MINI] (SWITCHING) [1608] C6503 [SSMINI] 0.47[KB] R6507 [1608] D6504 C6504 1800 R6506 B3GA00000041 R6508 0.1[KB] 330K 4700 IR SENSOR LINK TO VOLTAGE CHART LSJB8316 FRONT SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
  • Page 57 [MF] 13 GND AUTO/MNL CARD_D0 CARD_D1 CARD_CLK DSC+315V R6313 CARD_CMD R6314 CARD_D3 R6315 CARD_D2 150E/EB/EF/EG/EP/ C6308 C6306 EE/GC/GN/GCS/SG, 150E/EB/EF/EG/EP/ CARD_DET C6310 C6309 0.01[KB] 33P[JC] 33P[JC] 152EG,158GK C6301 EE/GC/GN/GCS/SG, CARD_PRO C6307 22/6.3V 152EG,158GK 33P[JC] LSJB8339 SIDE R SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
  • Page 58 (LED DRIVE) (LED DRIVE) (LED DRIVE) 100K[D] R8108 R8109 R8110 R8111 47[D] R8117 47[D] 47[D] 47[D] R8119 R8115 12K[D] R8126 R8125 Q8107 R8124 R8121 (DRIVE) Q8108 (DRIVE) R8122 R8123 LINK TO VOLTAGE CHART LSJB8318 LCD BACKLIGHT SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
  • Page 59 K0C111B00006 K0C111B00006 OPEN_SW2 OPEN_SW1 MECHA_LOCK TO DVD DRIVE FRAME UNIT P2401 DGND DGND OPEN2 OPEN1 MOTOR- MOTOR- MOTOR+ MOTOR+ DGND MECHA_LOXK MOTOR 2 MOTOR- 1 MOTOR+ JACK SCHEMATIC DIAGRAM EVF BACKLIGHT SCHEMATIC DIAGRAM DISK COVER LOCK SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
  • Page 60 ZOOM_COM DISC_ACCESS_LED DISK_ACCESS DISK PLAY RIGHT(FF) LIGHT POWER_LED POWER GND(LED) CARD REC LEFT(REW) MENU EJECT_SW EJECT MODE_DIAL1 CARD PLAY UP(PLAY) DOWN(STOP) MODE DIAL CROSS KEY CCD SCHEMATIC DIAGRAM LCD SW SCHEMATIC DIAGRAM SIDE L / DISK SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
  • Page 61 P8301 (1 Pin) SIDE L / DISK UNIT P6301 (20 Pins) FP6301 (2 Pins) SPEAKER (22 Pins) JACK P.C.B. SD UNIT JACK B7001 CARD (20 Pins) SD CARD SLOT S-VIDEO /VIDEO /AUDIO JACK 150E/EB/EF/EG/EP/EE/GC/GN/GCS/SG, 152EG,158GK INTERCONNECTION SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 62: Front Schematic Diagram

    12.2. FRONT SCHEMATIC DIAGRAM NOTE: For placing a purch FRONT SCHEMATIC DIAGRAM be sure to use the Do not use the par ECM UNIT ECM_R WM-61A102B R4807 R4810 3900[D] 3900[D] FJ4801 C4804 8200P[KB] ECM_R ECM_L C4806 R4805 WM-61A102B A_GND 0.027[KB] 120K ECM_L C4805...
  • Page 63 8200P[KB] A_M_OUT_R R4805 [1608] D_GND 120K A_M_OUT_L C4805 C4802 D_GND 0.027[KB] 1[KB] [1608] IR_GND LIGHT_ON_H LIGHT_REG LIGHT_REG IR-REMOCON IRDET C4812 22/6.3V IC4801 C0ABBB000369 R6509 (OP AMP) C4808 0.027[KB] C4809 8200P[KB] LINK TO VOLTAGE CHART LSJB8316 FRONT SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 64: Side R Schematic Diagram

    12.3. SIDE R SCHEMATIC DIAGRAM NOTE: For placing a purch SIDE R SCHEMATIC DIAGRAM be sure to use the Do not use the par REC VIDEO OPEN SWITCH P.C.B. SW8301 K0LIAA000010 LCD OPEN/CLOSE P6303 LCD_OPEN P8302 P6304 P8301 R6311 (TO SPEAKER) P6301 R6312 R6307...
  • Page 65 (REGULATOR) 2 CMD R6323 R6304 1 DAT3 R6324 R6305 9 DAT2 13 GND R6313 R6314 R6315 150E/EB/EF/EG/EP/ C6308 C6306 EE/GC/GN/GCS/SG, 150E/EB/EF/EG/EP/ C6310 C6309 33P[JC] 0.01[KB] 33P[JC] 152EG,158GK C6301 EE/GC/GN/GCS/SG, C6307 22/6.3V 152EG,158GK 33P[JC] LSJB8339 SIDE R SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 66: Lcd Backlight Schematic Diagram

    12.4. LCD BACKLIGHT SCHEMATIC DIAGRAM NOTE: NOTE: For placing a purch LCD BACKLIGHT SCHEMATIC DIAGRAM ALL INDIVIDUAL PARTS EXCEPT D8101, D8103, D8105, AND D8107 be sure to use the ON LCD BACKLIGHT P.C.B. ARE SUPPLIED AS REPLACEMENT PARTS. Do not use the par WHEN SERVICING THESE PARTS, REPLACE LCD BACKLIGHT P.C.B.
  • Page 67 R8118 C8105 R8116 R8112 180K[D] Q8105 Q8106 XP0450100L XP0440100L (DRIVE) (DRIVE) R8113 R8114 R8120 100K[D] R8117 R8119 R8115 12K[D] R8126 R8125 Q8107 R8121 R8124 (DRIVE) Q8108 (DRIVE) R8122 R8123 LINK TO VOLTAGE CHART LSJB8318 LCD BACKLIGHT SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 68: Jack Schematic Diagram

    12.5. JACK / EVF BACKLIGHT / DISK COVER LOCK SCHEMATIC DIAGRAMS NOTE: For placing a purch be sure to use the Do not use the par JACK SCHEMATIC DIAGRAM REC VIDEO SIGNAL PB VIDEO SIGNAL REC AUDIO SIGNAL PB AUDIO SIGNAL JK7002 USB JACK R7002...
  • Page 69 L,R,V GND AUDIO_R PSIG Y,C GND D901 R909 R901 VUW1148L 33K[D] AUDIO_L BACKLIGHT C904 R910 Q901 0.1[KB] 2SD2216JRL P[KB] (LED DRIVE) R903 R902 47[D] 10K[D] LSJB8317 JACK SCHEMATIC DIAGRAM EVF BACKLIGHT SCHEMATIC DIAGRAM DISK COVER LOCK SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 70: Ccd Schematic Diagram

    12.6. CCD / LCD SW / SIDE L/DISK SCHEMATIC DIAGRAMS NOTE: For placing a purch be sure to use the Do not use the par NOTE: CCD SCHEMATIC DIAGRAM CCD P.C.B. IS NOT SERVICEABLE AND IS SUPPLIED AS A UNIT ONLY FOR REPLACEMENT. “FOR REFERENCE ONLY”...
  • Page 71 10 LCD_B LCD_G LCD_G LCD_R LCD_R LCD_STH2 LCD_STH2 LCD_COM LCD_COM LCD_STV2 LCD_STV2 LCD_OEV LCD_OEV LCD_CPV LCD_CPV LCD_U/D LCD_U/D LCD_STV1 LCD_STV1 LCD_RVS NORMAL/ REVERSE D IS ENT. CCD SCHEMATIC DIAGRAM LCD SW SCHEMATIC DIAGRAM SIDE L / DISK SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 72: Interconnection Schematic Diagram

    12.7. INTERCONNECTION SCHEMATIC DIAGRAM NOTE: For placing a purch INTERCONNECTION SCHEMATIC DIAGRAM be sure to use the Do not use the par MAIN P.C.B. DVD DRIVE FRAME UNIT DISK COVER LOCK UNIT P2401 (10 Pins) (60 Pins) (50 Pins) EVF UNIT (NO CONNECTION) EVF CASE 1 UNIT COLOR EVF LCD PANEL...
  • Page 73 (12 Pins) (3 Pins) SIDE R/SD UNIT SIDE R P.C.B. OPEN SW P.C.B. P6303 P8302 (1 Pin) P6304 P8301 (1 Pin) P6301 FP6301 (2 Pins) SPEAKER (22 Pins) SD UNIT CARD SD CARD SLOT 150E/EB/EF/EG/EP/EE/GC/GN/GCS/SG, 152EG,158GK INTERCONNECTION SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
  • Page 74 PIN NO. PIN NO. PIN NO. Q8101 IC4801 Q8102 Q8103 12.0 12.0 11.9 11.9 Q4301 11.2 11.2 Q8104 Q4302 Q8105 11.9 11.9 Q4305 Q8106 Q4306 Q8107 Q4307 Q8108 Q4801 TP8101 TP8102 Q6501 TP8103 TP8104 TP8105 TP8106 Q6502 VOLTAGE CHART VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE/VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 75: Overall Block Diagram

    CAMERA SIGNAL DIGITAL LCD/EVF-G PROCESS SIGNAL LCD/EVF-B EVF UNIT PROCESS EVF BACKLIGHT IC302 FP901 FP902 EVF-R EVF LCD PANEL EVF-G SIGNAL H1/H2//RESET PULSE CAMERA VD/HD (COLOR) EVF-B TIMING PROCESS IC304 GENERATOR V1-V4/CH1/CH2 PULSE CCD DRIVE OVERALL BLOCK DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 76: Ccd Drive Block Diagram

    CHANGE 5 ms LEVEL V4 PULSE FCK (18.0MHz) TO VIDEO SIGNAL PROCESS CHANGE BLOCK DIAGRAM LEVEL CAM HD SUB CONTROL PULSE CHANGE FP301 RESET PULSE IC303 FP301 36MHz H1 PULSE 2FCK FP301 H2 PULSE CCD DRIVE BLOCK DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 77: Video Signal Process Block Diagram

    B7001 AUDIO SIF SERIAL DATA 1 R7003 INTERFACE B7001 JACK IC6001 (SYSTEM MICROCONTROLLER) B7001 ADM (16BIT) 154, 159 , INTERFACE MICROCONTROLLER 186-193, 162-166, 169, DATA/ADDRESS(0-15) INTERFACE 195-202 171-176, 179, +2.8V PC ACCESS Q3002 VIDEO SIGNAL PROCESS BLOCK DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 78: Analog Video I/F Block Diagram

    AV PLUG IN DETECT (L) BLOCK DAGRAM IC3301 (VIDEO SIGNAL PROCESS) BUFFER CLAMP LUMA JK7001 B7001 JK7001 B7001 FROM VIDEO SIGNAL PROCESS JK7001 B7001 VIDEO BLOCK DAGRAM VIDEO JK7001 B7001 BUFFER CHROMA WIDE DET ANALOG VIDEO I/F BLOCK DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 79: Audio Signal Process Block Diagram

    AUDIO MASTER CLOCK B7001 JK7001 AUDIO(R) OUT DIVIDER B7001 JK7001 AUDIO(L) OUT RESET(L) RESET(L) AUDIO SIF CS AUDIO SIF SERIAL CLOCK SERIAL INTERFACE AUDIO SIF SERIAL DATA SIDE R P.C.B. FP6301 P6301 SPEAKER FP6301 P6301 AUDIO SIGNAL PROCESS BLOCK DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 80: System Control Block Diagram

    COVER SW2 50 DVD-CAM DRIVE FUNCTION BLOCK TO/FROM BATTERY (D) BATTERY (D) MECHA LOCK POWER SUPPLY BLOCK DIAGRAM LIGHT ON (H) LIGHT ON (H) OPEN SW1 BATTERY VOLTAGE DET BATTERY VOLTAGE DET OPEN SW2 SYSTEM CONTROL BLOCK DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 81: Af Block Diagram

    LENS DRIVE VD FP701 LENS DRIVE CS SERIAL D/A CONVERTER /DRIVE CONTROL LENS DRIVE DATA PARARELL FP701 V-REF DECODER LENS DRIVE CLOCK FP701 ZOOM MOTOR FP701 DRIVE FP701 IC3001 (CAMERA DIGITAL SIGNAL PROCESS) Q3001 4.5MHz CLOCK BUFFER AF BLOCK DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 82: Lcd Drive Block Diagram

    SERIAL DATA CONTROL REVERSE(UP/DOWN) REVERSE(L/R) CONTROL CONTROL FP8101 FP8101 BL+5V BACKLIGHT D8101 D8103 D8105 D8107 3.5 Vp-p 3.5 Vp-p 7.0 Vp-p 3.5 Vp-p Q8101 Q8102 Q8103 Q8104 20 s 20 s 20 s 20 s LCD DRIVE BLOCK DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 83: Evf Block Diagram

    LCD/EVF SERIAL CLOCK CONVERTER LCD/EVF SERIAL DATA D901 BACKLIGHT FP901 EVF BL+5V 2.3 Vp-p 2.4 Vp-p 2.3 Vp-p 4.0 Vp-p Q901 0.5 V 20 s 0.5 V 20 s 20 s 0.5 V 20 s EVF BLOCK DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...

  • Page 84: Power Supply Block Diagram

    Q1041 L1061 Q1018 CAM +12V +12V DRIVE CONTROL CONTROL Q1036 Q1031 ERROR AMP D1027 Q1032 D1024 D1001 ON/OFF CONTROL Q1003 SCP COMP. (FROM IC6001 (115)) Q1002 Q1044 CCD ON (H) V-REF Q1024 D1025 D1026 POWER SUPPLY BLOCK DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
  • Page 85 (1) Cleaning disc Disc cleaning cloth provided or 1) Use the provided disc cleaning cloth, or a soft, dry cloth to lightly clean the soft and dry cloth disc from the inner to outer edges in axial direction. 2) If the dirt cannot be removed with the above procedure, put a few droplets of absolute alcohol in a soft, dry cloth, and use it to lightly clean the disc from the inner to outer edges in axial direction.
  • Page 86 MAIN PARTS PORTION STEP Ref. Section NOTE PART REMOVE Top Cover Unit (519), 5(533) 3(519), 2(533), FP2, Front Case Ass'y Hand Strap 3(519), 3(533), Side R & FP1, FP4 LCD Ass'y Rear Case & 6(519), FP5, P1 EVF Ass'y 2(519), FP301, Lens Ass'y FP701 (419), 5(519),...

  • Page 87: Main Parts Section

    Note: MAIN PARTS SECTION 1. Parts with no Ref. No. in "EXPLODED VIEW" are not supplied. And some Ref. No. will be skipped. Be sure to make your orders of replacement parts according to the parts list. 2. The parts indicated by the dotted line are for Ass'y only and are not supplied.
  • Page 88 FRONT CASE, MAIN P.C.B. & JACK P.C.B. STEP Ref. Section NOTE PART REMOVE (519), B2 Jack P.C.B ----- Main P.C.B STEP Ref. Section NOTE PART REMOVE Front P.C.B. 5(533) (For models with Light) ----- LED Light Lens ----- Front Case Unit How to read chart shown above: A: Order of Procedure steps.
  • Page 89 2. The parts indicated by the dotted line are for Ass'y only and are not supplied. 3. Disregard Ref. No. suffixes when ordering parts. They are used to describe parts in "Disassembly and Assembly Instructions" section. (VDR-D100EB/EG)
  • Page 90 SIDE CASE R PORTION LCD PORTION STEP Ref. Section STEP Ref. Section NOTE PART REMOVE PART REMOVE NOTE 2(519), 2(546), Side R/SD Ass'y (408), (457) LCD Case A Unit 7(L-1) LCD Shaft Case Speaker 2(533), (46) FP8101 Unit 2(533), (533), (L-2), LCD Backlight Side R P.C.B.

  • Page 91: Side Case R And Lcd Section

    Note: SIDE CASE R AND LCD SECTION 1. Parts with no Ref. No. in "EXPLODED VIEW" are not supplied. And some Ref. No. will be skipped. Be sure to make your orders of replacement parts according to the parts list. 2.
  • Page 92 CCD & LENS PORTION STEP Ref. Section NOTE PART REMOVE CCD P.C.B. 2(536) ----- Filter Rubber Optical Filter ----- STEP Ref. Section NOTE PART REMOVE Lens Holder 2(533) 2(538), Zoom Motor Unit Unsolder 3(538), Focus Motor Unit Unsolder How to read chart shown above: A: Order of Procedure steps.

  • Page 93: Ccd And Lens Section

    Note: CCD AND LENS SECTION 1. Parts with no Ref. No. in "EXPLODED VIEW" are not supplied. And some Ref. No. will be skipped. Be sure to make your orders of replacement parts according to the parts list. 2. The parts indicated by the dotted line are for Ass'y only and are not supplied.
  • Page 94 REAR CASE & EVF PORTION STEP Ref. Section NOTE PART REMOVE EVF Unit 2(433), (L-1) ----- Rear Case Unit STEP Ref. Section NOTE PART REMOVE EVF Base Frame FP901 EVF Earth Plate ----- EVF F.P.C. STEP Ref. Section NOTE PART REMOVE Eye Cap 2(533), (L-2)
  • Page 95 Note: REAR CASE AND EVF SECTION 1. Parts with no Ref. No. in "EXPLODED VIEW" are not supplied. And some Ref. No. will be skipped. Be sure to make your orders of replacement parts according to the parts list. 2. The parts indicated by the dotted line are for Ass'y only and are not supplied.
  • Page 96 Notes in chart 3. Installation of Side R & LCD Ass’y 1. Removal of Top Cover Unit 1) Connect the LCD F.P.C. and Side R F.P.C. to the 1) Open the LCD and remove the 5 Screws (533). Connectors FP4 and FP1 so as not to damage the 2) Slide the EVF to extend it, then remove Screw (519).
  • Page 97 4. Removal of Rear Case & EVF Ass'y 6. Removal of Main P.C.B. and Jack P.C.B. 1) Disconnect the EVF F.P.C. and the Connector Cable 1) Remove the 6 Screws (419, 519). from Connector FP5 and P1. 2) Disconnect the Zoom Switch F.P.C. from Connector 2) Remove the 6 Screws (519).
  • Page 98 8. DVD Drive Frame Unit Caution 9. Installation of Jack P.C.B. 1) Connect the Connector B2 (B to B Connector). Caution 2) Tighten Screw (519). Laser light striking the eye may cause your eyesight Main P.C.B. to be lost: For safety, be sure to remove any power supply (AC adaptor/charger, battery, etc.) from the DVD video camera/recorder before starting work.
  • Page 99 11. Removal of Side R/SD Ass'y 12. Installation of LCD Backlight P.C.B., LCD Panel Ass'y, 1) Close the LCD (Ass'y). LCD Shield Case Unit and LCD Case B 2) Remove the 2 Screws (408, 457) as shown below. Be extremely careful of LEDs when handling the LCD Backlight P.C.B.
  • Page 100 13. Installation of LCD Panel, Reflect Sheet, Lead Light Panel, Diffusion Sheet, BEF Sheet, BEF Sheet A and Panel Holder Unit a. When replacing the LCD Panel, the Diffusion Sheet, the BEF Sheet and the BEF Sheet A, be sure to remove the Protection Sheets.
  • Page 101 14. Removal of CCD P.C.B., Filter Rubber and Optical Filter 16. Removal of EVF Unit CAUTION: 1) Remove the 2 Screws (433). 1) When removing the CCD P.C.B., take care that the 2) Slide to extend the EVF Unit. Optical Filter does not fall out. 3) Push to release the Locking Tab (L-1), and remove the 2) Use extreme caution when removing the CCD P.C.B.
  • Page 102 17. Installation of EVF Base Frame, EVF F.P.C. 18. Removal of Eye Cap 1) Pass the EVF F.P.C. through the EVF Base Frame hole. 1) Remove the 2 Screws (533). 2) Connect the EVF F.P.C. to Connector FP901. 2) Remove the Eye Cap, then release the Locking Tab (L- 3) Install the EVF Case Ass'y into EVF Base Frame so that the ribs are inserted into the slots of the EVF Base Frame.
  • Page 103 Caution Laser light striking the eye may cause your eyesight to be lost: For safety, be sure to remove any power supply (AC adaptor/charger, battery, etc.) from the DVD video camera/recorder before starting work. <CSA requirement> CAUTION: VISIBLE LASER RADIATION DO NOT STARE INTO THE BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS CLASS 2M Optical pickup...
  • Page 104 B-3 C Miscellaneous Q6501 LED LIGHT C4810 A-4 C U6501 D6503 D6504 C4812 C-3 C IR SENSOR C6501 C-2 C R6506 C6504 C6503 A-1 C C6504 A-1 C LSJB8316 LSJB8316 C6505 (DUAL PATTERNS) (DUAL PATTERNS) FRONT P.C.B. LSEP8316A1/LSEP8316C1 VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
