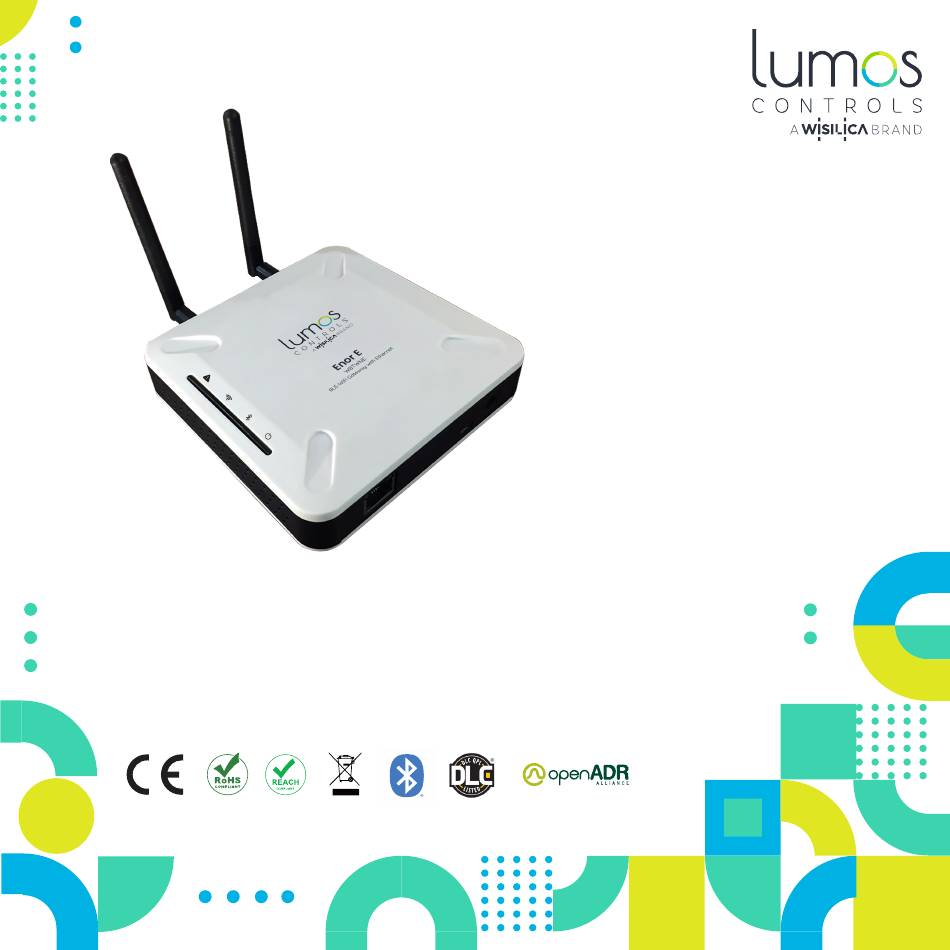

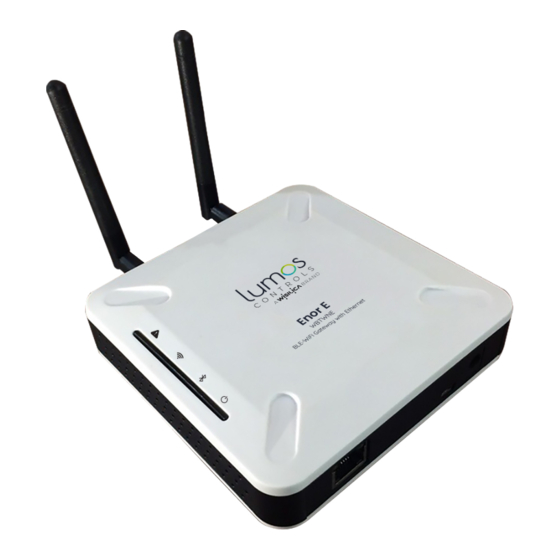

- Page 1 www.lumoscontrols.com Enor E BLE-WiFi Gateway With Ethernet...
- Page 2 Features WiFi/BLE 5.2 Gateway providing ubiquitous connectivity to BLE devices* Support 802.11b/g/n modes Unit powered by a mini-USB or a 5 VDC adaptor Single Ethernet port LED indications for power, BLE and WiFi status AES 128 encryption and decryption support Edge processing capability Supports TPM(Trusted Platform Module) and digitaly signed binary firmware files Supports WiFi security modes WPA/WPA2...
- Page 3 Environmental Mechanical Specifications Specifications Value Value Remarks Operating temperature -20 to 55ºC (-4 to 131°F) Dimensions 4.7 x 4.7 x 1.2in L x W x H (120 x 120 x 29.5mm) Storage temperature -20 to 85ºC (-4 to 185°F) Relative humidity Product Dimensions 1.18in(30mm) 4.3in(110mm)
- Page 4 Interface Description Antenna WiFI Antenna Power Status -Red LED Ethernet 5V DC Bluetooth Status Mini-USB -Blue LED Wi-Fi Status -Green LED Antenna Information Antenna Properties Stick antenna Frequency range 2.4GHz-2.5GHz Impedance 50Ω VSWR - < Return loss 12dB Gain(peak) 2dBi Power handling Polarization Vertical...
- Page 5 Smart Ecosystem Control Device Radiar AF10 Internet Connectivity Sensor Mesh Network Enor E Gateway Switch 45m(147.6ft) is the device to device communication distance ideally with clear LoS Certifications Details Radio test standard Article 3, RED 2014/53/EU EMC test standards ETSI EN 300 328 V2.2.2 (2019-07) Health test standard: ETSI EN 301 489-1 V2.2.3 (2019-11) ETSI EN 301 489-17 V3.2.4 (2020-09)
- Page 6 DC adaptor) The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by WiSilica Inc. is under license. Other trademarks and trade names are those of their respective owners. +1 949-397-9330 All Rights Reserved WiSilica Inc Ver 1.4 Apr 2023...
