WiSilica lumos CONTROLS ENOR E Quick Start Manual

ENOR E
Gateway With Ethernet & Real Time Clock (RTC)

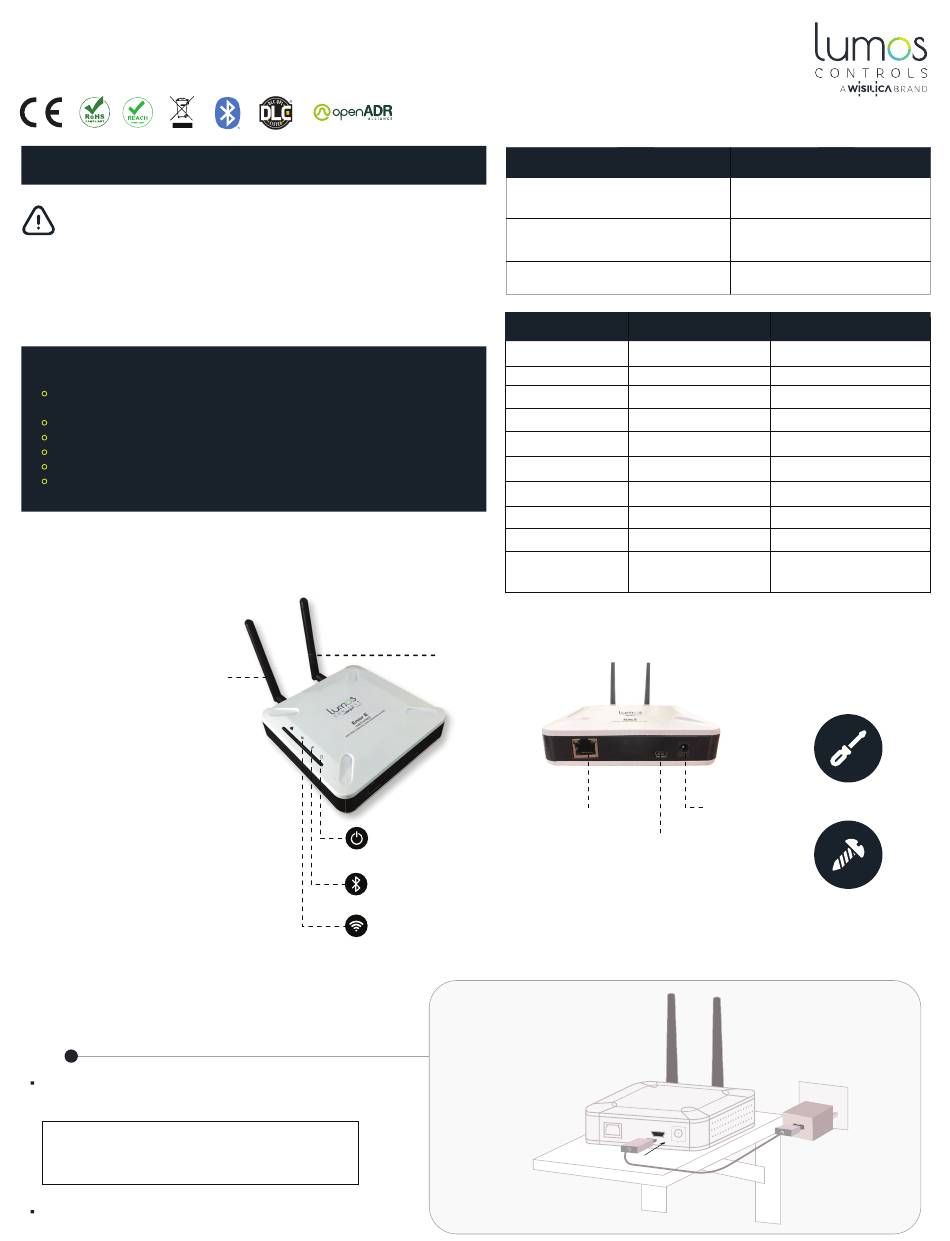

INSTALLATION AND QUICK START SHEET

WARNING AND GUIDELINES!!!

Read and follow all safety instructions!!
DO NOT INSTALL DAMAGED PRODUCT! This product has been properly packed so that
no parts should have been damaged during transit. Inspect to confirm. Any part
damaged or broken during or after assembly should be replaced.
WARNING: Risk of Product Damage
Electrostatic Discharge (ESD): ESD can damage product(s). Personal grounding
equipment should be worn during all installation or servicing of the unit
Do not stretch or use cable sets that are too short or are of insufficient length
Do not modify the product
Do not mount near gas or electric heater
Do not change or alter internal wiring or installation circuitry
Do not use product for anything other than its intended use

PRODUCT OVERVIEW

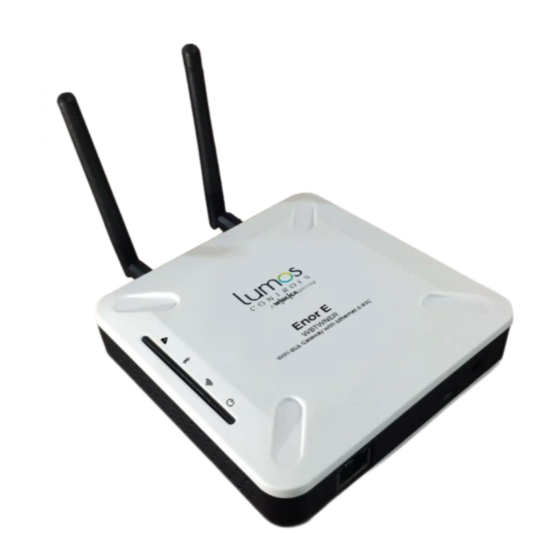

ENOR E is an enterprise
gateway providing cloud
connectivity to your smart
lighting network. The device
comes with an Ethernet port
WiFI
that supports zero-downtime
Antenna
Over-the-Air (OTA) firmware
updates for mesh devices.
RTC delivers highly accurate
data on time and date for
various end applications.
It is a part of Lumos Controls
ecosystem, which includes
controllers, sensors, switches,
modules, drivers, gateways,
and analytical dashboards.

INSTALLATION INSTRUCTIONS

Installation Steps
Option
1
Step 1: Ensure the gateway is in range with Lumos Controls devices.
You can place it on a table or mount it on the wall using screws.
Note:
Ensure that the antenna is positioned parallel to the wall
Make sure you have a stable INTERNET connection
Step 2: Connect to power.
Do's
Installation should be performed by a
qualified electrician
Installation shall be in accordance with
all applicable local and NEC codes

Specifications

Input voltage
Input current
Input voltage for RTC
Frequency band
Max BLE Output power
Data transmission rate
Operating temperature
Storage temperature
Relative humidity
Dimensions
BLE
Antenna
Power Status -Red LED
Bluetooth Status -Blue LED
Wi-Fi Status -Green LED
Don'ts
Don't use outdoors
Avoid input voltage exceeding
maximum rating
Don't disassemble the products
Value
5V
2A
3VDC
2400-2480MHz
8dBm
10/100Mbps
-20 to 55ºC (-4 to 131°F)
-20 to 85ºC (-4 to 185°F)
85%
4.7 x 4.7 x 1.2in
(120 x 120 x 29.5mm)
5V DC
Ethernet
Mini-USB
Remarks
Micro-USB/DC Adaptor
Micro-USB/DC Adaptor
CR2032 coin-cell battery
IEEE 802 Part 11b/g/n
_
_
_
_
_
L x W x H
Required tools &
supplies
Screwdriver
Screws
