WiSilica lumos CONTROLS ENOR E Basic Installation And Quick Startup Manual

ENOR E
Gateway With Real Time Clock (RTC)
INSTALLATION AND QUICK START SHEET
WARNING AND GUIDELINES!!!
Read and follow all safety instructions!!
DO NOT INSTALL DAMAGED PRODUCT! This product has been properly packed so that
no parts should have been damaged during transit. Inspect to confirm. Any part
damaged or broken during or after assembly should be replaced.
WARNING : TURN THE POWER OFF AT THE CIRCUIT
BREAKER BEFORE WIRING
WARNING: Risk of Product Damage
Electrostatic Discharge (ESD): ESD can damage product(s). Personal grounding
equipment should be worn during all installation or servicing of the unit
Do not stretch or use cable sets that are too short or are of insufficient length
Do not modify the product
Do not mount near gas or electric heater
Do not change or alter internal wiring or installation circuitry
Do not use product for anything other than its intended use
WARNING - Risk of Electric Shock
Verify that supply voltage is correct by comparing it with the product
information
Make all electrical and grounded connections in accordance with the National
Electrical Code (NEC) and any applicable local code requirements
All wiring connections should be capped with UL approved recognized wire
connectors
All unused wiring must be capped

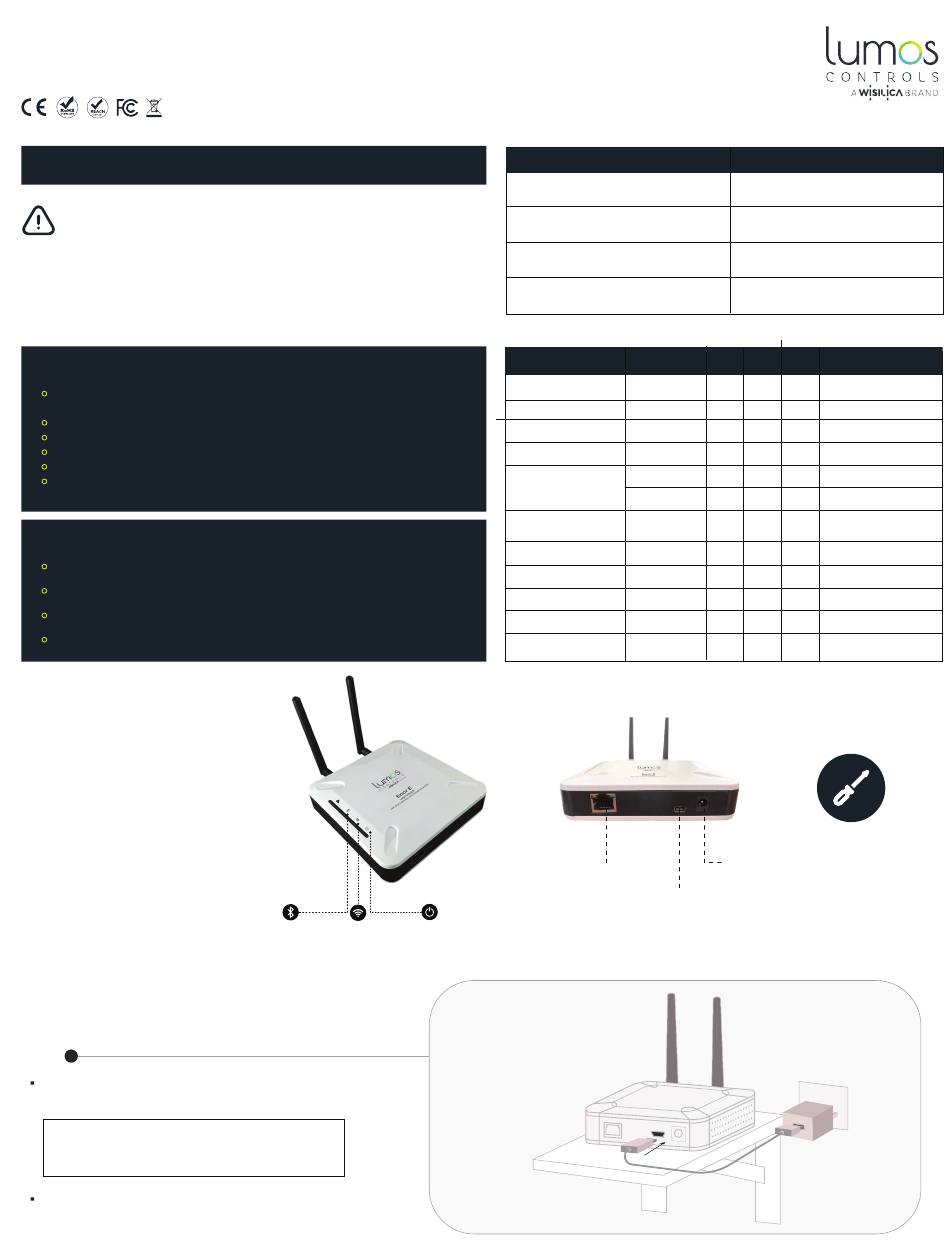

Product Overview

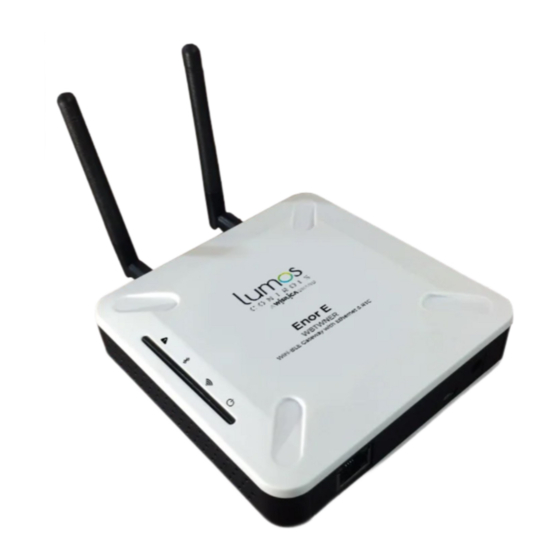

ENOR E is an enterprise gateway
providing cloud connectivity to your
smart lighting network. The device
comes with an Ethernet port that
supports zero-downtime Over-the-Air
(OTA) firmware updates for mesh
devices. RTC delivers highly accurate
data on time and date for various
end applications.
It is a part of Lumos Controls
ecosystem, which includes controllers,
sensors, switches, modules, drivers,
gateways, and analytical
dashboards.
INSTALLATION INSTRUCTIONS
Installation Steps
Option
1
Step 1: Ensure the gateway is in range with Lumos Controls devices.
You can place it on a table or mount it on the wall.
Note:
Ensure that the antenna is positioned parallel to the wall
Make sure you have a stable INTERNET connection
Step 2: Connect to power.
Wi-Fi Status Power Status
Bluetooth Status
-Green LED -Red LED
-Blue LED
Do's
Installation should be performed by a
qualified electrician
Installation shall be in accordance with
all applicable local and NEC codes
Turn the power OFF at circuit breakers
before wiring
Observe the correct polarity of output
terminal
Specifications Min
Input Voltage
_
Input current _
Input Voltage for RTC _
Frequency Band 2400
12
Output Power
17.5
10
Speed
Operating Temperature
-20
Storage Temperature -20
Relative Humidity
0
Dimensions 120 x 120 x 29.5
Dimensions
4.7 x 4.7 x 1.2
Ethernet
Mini-USB
Don'ts
Don't use outdoors
Avoid input voltage exceeding
maximum rating
Don't dissemble the products
-
Type Max Unit Remarks
_
Micro-USB/DC Adaptor
5 V
Micro-USB/DC Adaptor
2 _ A
CR2032 coin-cell battery
3 _ V
_ 2480 MHz IEEE 802 Part 11b/g/n
13 14 dBm 11n, MCS7
18.5 20 dBm 11b mode
Mbps 10/100 Ethernet port
_ 100
supports PoE
55 ºC
_ _
_
_ 85 ºC
_ 85 % _
_ _
mm L x W x H
_ _
in
L x W x H
Required tools &
supplies
Screwdriver
5V DC
