- Page 1 XLOCK 102 INSTALLATION Guide MTA_9 344 050 00...
-
Page 2: Packaging Content

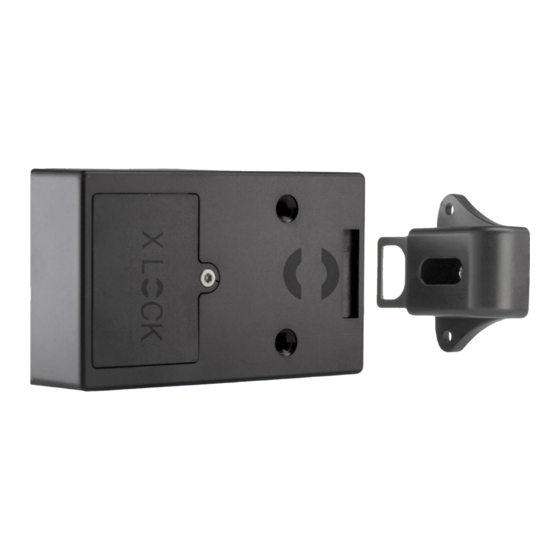

PACKAGING CONTENT Lock XL102 Important: Closing part Please order batteries separately. 2CR5, 6V Lithium Battery Always use lithium batteries! 2 x Countersunk screws 4 x 40 mm for Lock. 3 x Lens head screws 1 x Countersunk screw 3 x 12 mm for closing part 4 x 25 mm for Lock. - Page 3 DIMENSIONS Lock XL102 Closing part External antenna XL-A3NFC...
- Page 4 TRANSPONDER Optional ! Please order separately. KEY FOB ISO ID-Card KEY FOB XL-AUMIFCL-2 XL-SAMIFCL XL-AUMIFCL Encapsulated housing with stainless steel ring Ultraviolet welded case with stainless RFID card transponder ISO14443a RFID transponder ISO14443a type Mifare steel ring RFID transponder type Mifare Classic reading range Classic reading range up to 3cm ISO14443a type Mifare Classic reading up to 2,5cm...
- Page 5 ANTENNA HOUSING with handle Optional ! Please order separately. XLOCK Antenna housing with handle XLOCK Antenna housing with handle XLOCK Antenna housing with handle XL-A3B XL-A3S XL-A3W without antenna and cable without antenna and cable without antenna and cable Colour: Black...
- Page 6 PREPARATION FROM THE LOCK Your lock is now ready Open the battery cover and Close the battery cover 1-piece 2CR5, 6V for operation. insert the batteries with the and fix it with the screw. lithium battery correct polarity (+/-). For error-free operation, please always use lithium batteries!
- Page 7 Smartphone (IOS + Android). Simply scan the QR code with your camera: After the installation create your XLOCK account and confirm in the email -> done. For the operation of an XLOCK lock, the location Bluetooth must be activated in...
-
Page 8: Create An Account
To confirm, shown above. type your password again email address by XLOCK. The XL LOCK Manager app. confirmation email may have ended type it in. Click on Register. - Page 9 ADD LOCK TO XLOCK ACCOUNT 3. Have the XLOCK lock ready. Press and hold the reset button with a screwdriver. 4. The lock is displayed 5. Give the lock a name . The XLOCK lock has 1. Click on the button 2.
- Page 10 ADDING A TRANSPONDER 6) The lock signals when it is ready. Then hold the transponder to the antenna of the lock as shown in the photo. 1. Tap on the lock. The 2. Tap the card 5) Give the transponder 3) Tap the in the lower 4) Select Bluetooth 7) Your transponder is...
-
Page 11: Unlock And Lock
UNLOCK and LOCK Hold a programmed transponder to the antenna of the Unlocking with the smartphone and the app is very easy. A lock. The reading distance depends on the installation swipe to the right unlocks the lock for 5 seconds. The and the medium. -
Page 12: Assembly View
ASSEMBLY VIEW Mounting Right Explosion Mounting right interior view Fastening the lock Tighten the screws with feeling. Do not use drill. -
Page 13: Assembly Drawing
ASSEMBLY DRAWING... - Page 14 XLOCK GATEWAYS Optional ! Please order separately. XLOCK Gateway G2-WIFI XLOCK Gateway G3-Ethernet incl. XLOCK Gateway G3 POE Ethernet incl.USB C charging cable. USB C charging cable. incl. USB C charging cable. 2.4 GHz WIFI compatible USB USB power supply necessary...
-
Page 15: Bluetooth Accessories
XLOCK BLE 20 meters - cable-free. Wireless keyboard The wireless keypad can be used to 4x AAA Lithium program all XLOCK pin code functions such as fixed, time and one-time code. All other functions, such as unlocking and locking with a transponder or smart phone, continue to work. - Page 16 More information and support at www.xlockgroup.com XLOCK by data mobile Landstrasse 35-39 AUT – 6911 Lochau info@xlockgroup.com www.xlockgroup.com...
