Steelmate 2-Way Car Alarm System Manual

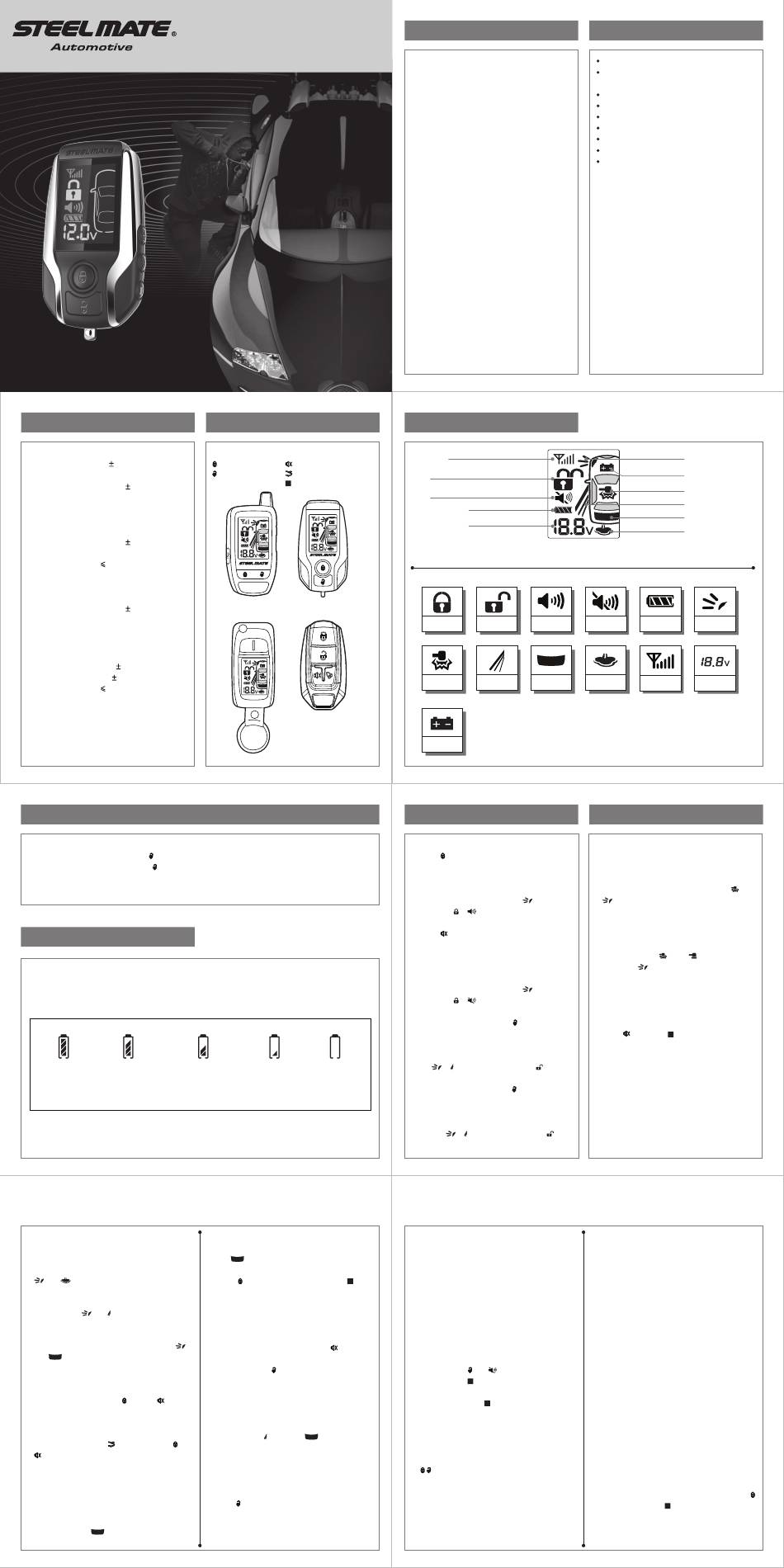

2-Way Car Alarm System
Manual

Specifications

System:
Operating voltage: 12 3V
Operating current: (FSK modem)< 20 mA
Operating frequency: 433.92 0.15MHz
Horn sound level: 105 ~ 125 dB
2-Way transmitter:
Modulation mode: FSK
Operating frequency: 433.92 0.15MHz
Operating voltage: 3.2~4.2V
Static current: 35 uA
1-Way transmitter:
Modulation mode: FSK
Operating frequency: 433.92 0.15MHz
Operating voltage: 2.0~3.3V
Static current: < 0.5 uA
Charging:
Operating voltage: 12V 3V
Output voltage: 5V 0.5V
Static current: 5mA

Turn transmitter ON/OFF (For 2-Way transmitter)

The transmitter needs to be turned on before the first use, the default setting is OFF.
Turn transmitter ON: Press and hold button for 2 seconds.
Turn transmitter OFF: Press and hold button for 5 seconds.
Note: Transmitter will be shut down when the battery is used up. If the transmitter cannot be turned on,
please charge it according to "Transmitter charging".

Battery level indication

When transmitter's battery level is low, the transmitter will have warning sound after any button is pressed.
When the battery indicator is empty, the transmitter needs to be charged immediately.
Battery is full Battery is enough
Voltage: 3.75V Voltage: 3.75V~3.60V
Note: The transmitting range will be affected when the battery is low.
signals flashing continuously, the engine will be
immobilized.
If the system is triggered by ignition on, the
transmitter will "Bi" with vibrations, the
and icon will be flashing on the screen.
If the system is triggered by footbrake pressed
or doors opened, the transmitter will "Bi" with
vibrations, the and icon will be flashing on
the screen.
If the system is triggered by trunk released, the
transmitter will "Bi" with vibrations, the
and will be flashing on the screen.
7. Alarm pause
In armed status, opening door/ trunk/ hood,
ignition on will trigger the system and alarm
chirping continuously, press button or
to stop the alarm and system will return to its
former arming status.
8.

Remote trunk release

Press and hold the button or hold
buttons together for 2 seconds to release
trunk. In arming mode, after trunk release, the
shock sensor will be bypassed, if detected
ignition on, opening door or footbrake is pressed,
the system will alarm with turn signals flashing.
If the trunk is not closed completely after 2
minutes, the transmitter will "Bi" with vibrations
for 3 times, and icon will be flashing on
screen.

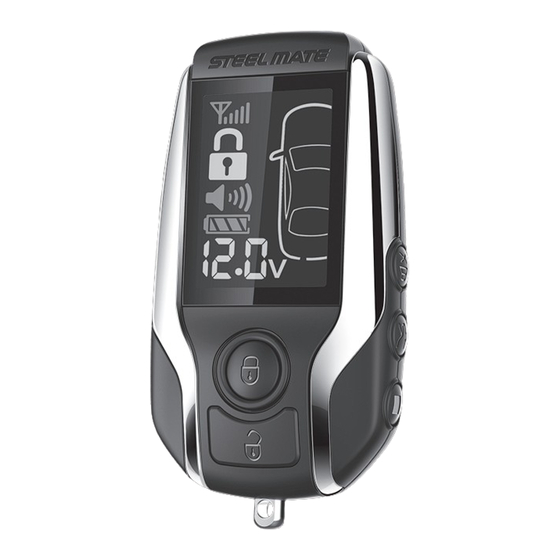

Brief look of 2-Way transmitters

Buttons
: Arm button : Mute
: Disarm button :Trunk release
/SET: SET
Battery is in a half Battery is low Battery is empty
Voltage: 3.60V~3.40V Voltage: 3.40V~3.20V Voltage: <3.20V
If the trunk is not close completely, the transmitter
will "Bi" after 3 minutes, with 3 times vibrations
and icon will show on the screen.

9.Car locating

Press button for 2 seconds or press
button, the siren will chirp for 10 seconds with
turn signals flashing for 10 seconds to locate the
car. Yet, the siren will not chirp in the mute
warning mode.

10.Anti-hijack

When ignition is on, press and hold
2 seconds, the siren will chirp with turn signals
flashing until the button be pressed.
11.Door closing reminder
When the system is armed in alarm mode and
button
the door or trunk did not close properly in 20
seconds, the siren will "Bi" 3 times with turning
signals flashing. The transmitter will "Bi" with
vibrations, the icon or the
+
screen.
The doors should be closed properly, or 70
seconds later, the siren will chirp sharply for 4
minutes.
12.Re-arming automatically
Press button once, the system will be disarmed
with the doors unlocked. If the door is not opened
in 25 seconds, the system will re-arm
automatically.
Disclaimer
1. This system is for vehicles with 12V DC only.
2. System should be installed by a professional
auto technician.
3. The installation position of ECU should be kept
away from water and dust.
4. All components should be fixed tightly and the
wires must be long enough to avoid
disconnection from heavy vibration during
driving.
5. This system will help to reduce the possibility
of losing the vehicle by discouraging. Please
take out the valuables when leaving the vehicle.
6. When the transmitter operating distance is
shorter or its indicator light turns dark, please
recharge the transmitter battery ASAP.
7. It is highly recommended to read this manual
before using this system.
8. Perform a functional test after installation.
9. The operation distance may affected by
constructions, topography or weather.
10. Please do not open or change the PCB without
authorization.

Interface

Signal bar
Arm
Mute
Battery indicator
Vehicle battery
voltage
Arming with
door locked
Impact on
vehicle
Vehicle battery
lower than 10.5v

Functions

1. Alarm arming & locking the doors (Active arming)
Press button once on transmitter, the doors
will be locked with chirp and turn signals flash
once. The LED light flashes to indicate that
system is armed in alarm arming mode.
The transmitter will "Bi" once with
once, and &
2. Mute arming & locking the doors (Active arming)
Press button once on transmitter, the doors
will be locked with turn signals flash once and
the siren will not chirp. The LED light flashes
to indicate that system is armed in mute arming
mode.
The transmitter will "Bi" once with
once, and &
3. Disarming & unlock the doors
In alarm arming mode, press button once, the
doors will be unlocked, the siren will "Bi" twice
with turn signals flashing, then the system will
be disarmed. The transmitter will "Bi" twice with
the & icon flash twice, and the
show on the screen.
In mute arming mode, press button once, the
doors will be unlocked, the siren will not chirp,
turn signals will flash twice. Then the system
will be disarmed. The transmitter will "Bi" twice
with the & icon flash twice, and the
will show on the screen.
For the car with dome light function, the system
will re-arm automatically after the dome light
turned OFF.
13.Dome light delay
/SET The function is specially designed for the vehicle
with dome light function. The system will enter
the arming mode automatically once the dome
light turned OFF.

14.Passive arming

When the engine is OFF and system did not
button for arm in 1 minute, system will enter the mute
arming mode automatically but the doors will not
be locked, the
screen. Hold
twice to indicate that the system exit the passive
arming mode. Hold
will "Bi" once to indicate that the system enter
the passive arming mode.
will flash on the 15.Central locking automation
The doors will be locked by pressing the footbrake
after the engine is running 15 seconds. Press
/ button, the doors will be locked/unlocked
during driving.
If door or trunk did not close properly, the siren
will "Bi" for 3 times while turn signals will flash
3 times as a reminder.
The doors will be unlocked automatically after
engine OFF.

Key features

Technology
Ultra long operation distance with 2-way LCD
transmitter
Rechargeable lithium battery for transmitter
Comfort closure
Vehicle battery voltage display on transmitter
Match with central locking system
Valet mode
Emergency Override
Anti-hijack
Disarming with Arming in Arming in
door unlocked alarm mode mute mode
Trunk- ACC
Door opened
triggered
released
4.

Shock sensor triggering

In alarm arming mode, the first impact to vehicle
will trigger the system, the siren will chirp for 3
times with turn signals flash for 5 times. The
transmitter will "Bi" with vibrations, the
icon flashes icon will be flashing on the screen. If the
icon will show on the screen. system is triggered again within 15 seconds,
the siren will chirp sharply and turn signals will
flash for 30 seconds, the engine will be
immobilized. The transmitter will "Bi" with
vibrations, the
alternately,
In mute arming mode, the shock impact will
icon flashes trigger the system. The siren will not chirp, other
icon will show on the screen. actions are the same as that in alarm arming
mode.
5. Shock sensor bypass
Press
for 2 seconds, shock sensor will be by passed
and system will "Do Re Mi" without any vibrations.
icon will This function is suitable for thunderstorm and
severe weather or other situation which is easy
to trigger vibration alarm
6. Ignition on, opening door/ trunk, footbrake trigger
In alarm arming mode or in mute arming mode,
if the system is triggered by ignition on, doors
icon opened, trunk released or footbrake pressed,
the siren will chirp for 30 seconds with the turn
16.Warning for roadside stop
When stopping by the roadside with the door
opened, the turn signals will flash for 15 seconds
to warn the approaching vehicles.
17.Warning for triggered system
If the system has been triggered in armed status,
the siren will alarm when the system is disarmed
and the door is opened:
1) The siren will chirp twice when shock sensor
is triggered.
2) The siren will chirp 4 times when door/ trunk/
hood is opened, or ACC is ON, or footbrake
and icon will be flash on the
is pressed.
/SET, the transmitter will "Bi"
3) In mute arming mode, the LED indicator will
flash continuously to indicate that the vehicle
/SET again, the transmitter
has been triggered.
18.Staus preserving
The system will return to the former status when
the power is on again, even the power is cut off.
19.Valet mode
In valet mode, the system will not arm even with
the transmitter, but convenience functions (door
lock/ unlock and trunk release) will work normally.
Press footbrake and turn ACC ON, then hold
button or press the
will chirp 3 times with turn signal flash 3 times
and enter valet mode.
Turn signals flashing
Low vehicle battery
Impact on vehicle
Door opened
Trunk-released
ACC triggered
Turn signal
Battery
flashing
indicator
Vehicle battery
Signal bar
voltage
and
and icon will show
icon will be flashing on the screen.
button and button(seorching button)
/SET button once, system
