E-2293

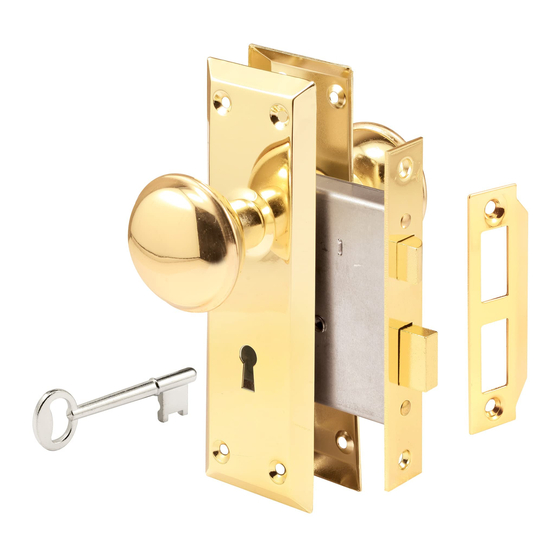

Mortise Lockset
Ensemblaje de cerradura con muesca
Ensemble de serrure à mortaise
NOTE: Installation drawings are typical for this style of replacement part.
They may not show a part identical to the one you are installing.
NOTA: Los dibujos para la instalación son genéricos para repuestos de este
tipo; por lo que podrían no mostrar una pieza idéntica a la que usted esté
instalando.
REMARQUE : Les dessins d'installation sont typiques pour ce style de pièce
de rechange. Ils pourraient ne pas illustrer une pièce identique à celle que
vous installez.
4"
10.2 cm
7/8"
22 mm
2-1/4"
57 mm
7"
17.8 cm
2-3/8"
60 mm
26950 San Bernardino Ave., Redlands, CA 92374
©
2010 Prime-Line Products
E 2293-INS
5-1/2"
14 cm
7/8"
22 mm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Prime-Line E-2293
Summary of Contents for Prime-Line E-2293
- Page 1 REMARQUE : Les dessins d'installation sont typiques pour ce style de pièce de rechange. Ils pourraient ne pas illustrer une pièce identique à celle que 26950 San Bernardino Ave., Redlands, CA 92374 vous installez. © 2010 Prime-Line Products...
- Page 2 Bit Key Mortise Lock For Item Number E-2293 New Installation Instructions New installation for 1-3/8" and 1-3/4" doors (replacement installation instructions on back of page) Note: Prior to installing this lock, check to ensure that installation procedures contained in these instructions will not damage door, frame or other areas upon which the lock is to be installed.
- Page 3 Bit Key Mortise Lock Replacement Installation Instructions (new installation instructions on other side) E. Insert screws provided into holes on faceplate and tighten. A. Loosen set screw on one knob and unscrew knob from spindle (Fig. 1). F. If your mortise lock set came with trim plates, align plates and secure with wood B.
