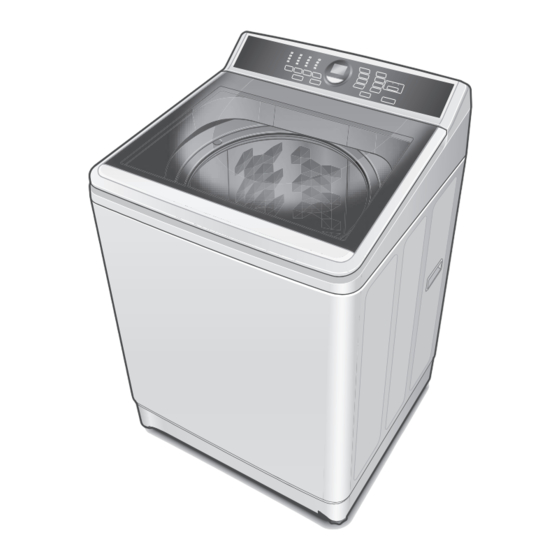

Safety Precautions Read and follow these safety precautions. WARNING May cause serious injury or death. Do not allow children to use on their own. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 3
WARNING Never disassemble, repair or modify the appliance yourself. In case of malfunction or failure (burnt odour smell, fume, etc.), immediately stop use, unplug the power cord, and ask your nearest service centre for repair. Keep away from fire. Do not put flammable materials or clothes with such things attached in the tub.
Page 4
Safety Precautions (continued) CAUTION May cause injury or property damage. Do not wash, rinse, or spin waterproof sheets or clothes. (To prevent injury, damage to the main unit, walls, floor or laundry, or water leakage if the appliance falls over or oscillates extremely while spinning) Raincoats, wet suits, etc.
Page 5
CAUTION Observe the following Be careful not to get your fingers caught. Beware of sudden Soft closing when lid closing. fully opened. New hose-sets supplied with the appliance are to be used and old hose-sets should not be reused. Do not obstruct the openings of the bottom face with carpet, etc.
Before Washing Laundry preparation and check Wash separately for clothes Use laundry nets for delicates losing colour easily Underwire brassieres, lacy clothes, lingerie and stockings Pre-laundry check (To prevent damage to clothes, Do not overpack. malfunction and drainage failure) ...
Operation Panel Change water amount Water amount/remaining time During the wash process, press “Water Level” to check and change the water amount. Some water amounts cannot be selected depending on After starting After approx. the program. operation, indicates 5 seconds, ...
Page 9
Water level/water amounts High Extra Low Level Model 10-8 Detergent* NA-F150A5 Water NA-F130A5 96 88 81 73 66 58 52 46 38 amount (L) : 1 scoop of detergent Each water level, except “Extra Low”, has three water amount options that can be switched while the level is lighted by pressing “Water Level”.
Variety of Programs Program Purpose Everyday clothes Normal (P. 14) Daily washing Speedy washing for light soil Speedy (P. 14) Delicates Gentle Hand Wash (P. 16) Washing delicates gently Clothes for babies & people with sensitive skin Baby Care (P.
Page 11
Maximum capacity NA-F150A5 NA-F130A5 15.0 kg 13.0 kg 15.0 kg 13.0 kg 2.5 kg 15.0 kg 13.0 kg 15.0 kg 13.0 kg 4.2 kg 15.0 kg 13.0 kg 5.0 kg 3.0 kg ― ―...
Detergent Put in detergent, bleach and softener according to the water amount Follow the instructions on each package Detergent/ Bleach inlet Bleach Do not use whiten bleach (chlorine bleach) for coloured clothes to prevent loss of colour. Do not use bleach for the “Gentle Hand Wash”...
Page 13
Detergent and softener drawer Do not fill above the MAX line. (Approx. 100 ml) NOTE Powder detergent Do not put in too much detergent. Liquid detergent For cleaning (P. 22) Softener Detergent Softener Do not put detergent directly into ...
Washing Preparation: Check if the washing machine is properly installed. (P. 24) Turn on the water faucet. When using Temp Setting, turn on both hot and cold water faucets. Timer preset Temp Setting After loading laundry Press to select Hot/Warm/ Turn the power on.
Page 15
According to the water amount After pressing “Start” indication You can change the water level Put in detergent. until the end of the wash process. Approx. 20 seconds after the You can change each of the water amount is displayed, “Wash”, “Rinse”...
Washing Options Comforter Gentle Hand Wash Washable comforters and Use this program to gently wash blankets delicate clothes and stylish garments. • Material: 100 % synthetic fibre or Attach the washing board. 100 % cotton • Weight: 4.2 kg or less 1) Double up the board and put it •...
Stain Master Preparation: Turn on the water faucet. When using Temp Setting, turn on both hot and cold water faucets. After loading laundry NOTE Turn the power on. Amount that can be washed at one time: Max. 5.0 kg Select a “Stain Master”...
Washing Options (continued) Super Dry Wash / Rinse / Spin (90 min) Water is removed from clothes by the Preparation: air blown from the tub rotation. Turn on the water faucet. Clothes that can be dried After loading laundry •...
Contents of Programs Total time Program Wash Rinse Spin (approx.) Normal 60 min 12 min 2 times 5 min Speedy 55 min 9 min 2 times 5 min Gentle Hand Wash 45 min 12 min 2 times 1 min Baby Care 75 min 12 min 2 times...
Convenient Functions Cancelling end buzzer Setting Child Lock To prevent children from falling into Pressing down, the tub and drowning, if the lid is press. opened while the washing machine is operating, this function sounds a buzzer until it is closed. Not closing it Then hold on for 3 seconds.
Maintenance Lint filter After each operation Lint filter Attach the filter in its original position. Remove the filter. Click NOTE Do not wash laundry without the filter. (To prevent damage to Open the filter and remove clothes) lint. Turn the tub by hand if it is difficult ...
Page 22
Maintenance (continued) Detergent and softener drawer Main unit, lid If stained with detergent If stained with detergent or softener or softener Wipe with a soft cloth. Remove the drawer. (To prevent damage to resin parts or metal corrosion) For heavy soil, wipe with a neutral kitchen detergent.
Page 23
Water supply filter If water does not flow smoothly Once a week <Super Dry> Follow the procedure below to After operation ends prevent splashing of water. Run the “Super Dry” program without loading laundry. (P. 18) After turning off the water faucet Once a month <Tub Hygiene>...
Make sure to ask a service person for installation. Do not install by yourself. If the installation, test run and inspection of the washing machine are not carried out following this installation method, Panasonic will not be liable for any accident or damage caused.
Page 25
3. Attach the drain hose. Connect. Do not connect here. Insert all the way. Slide the hose band in the arrow direction. Slide all the way until it stops. Hose band Attach the hose to position A Hose holder or B with the hose holder and the screw.
Page 26
Installation (continued) 4. Connect the water tap adaptor and water supply hose. Water faucet CAUTION Water tap adaptor Do not make wrong connection for the HOT and COLD water supply Water supply hose faucets. Tighten the nut firmly. ...
Page 27
COLD 6. Check that the washing machine is level. Water supply valve screw The bubble should be at the centre Water tap COLD of the mark. adaptor Mark Bubble Leveller If the bubble is out of the mark Water supply hose 1 Turn the adjustable leg knob to the left to loosen.
Error Display The buzzer sounds and “U”/“H” and a number are alternately displayed. Cancel Child Lock if it is set. (P. 20) Error Display Points to be checked Check the drain water hose for the following abnormalities: - Is it crushed? - Is it clogged with lint? - Is the hose tip under water? - Is it partially raised higher than 10 cm above the floor?
Troubleshooting Symptoms Points to be checked - Time indication is approximate. Remaining time is Time indication increases or does not decrease corrected during operation and displayed. - The operation time may be longer if laundry is Operation time is longer than the time indication.
(P. 12) - This is normal. It is the noise of the drain pump There is noise when water drains out. working. Specifications Model No. NA-F150A5 NA-F130A5 Rated voltage 220 V 220 - 240 V Rated frequency 60 Hz 50 Hz...
