Please read this manual and save it with your
original sales receipt.
Tool needed for assembly: Phillips Screwdriver
(not included).
Use only with a Power Wheels
®
6 Volt (4.0 Amp/Hr.)
Rechargeable Battery with Built-in Thermal Fuse
®
and a Power Wheels
6 Volt (4.0 Amp/Hr.) Charger
(both included).
Requires one "AA" (LR6) battery for sounds
and lights box operation (not included).

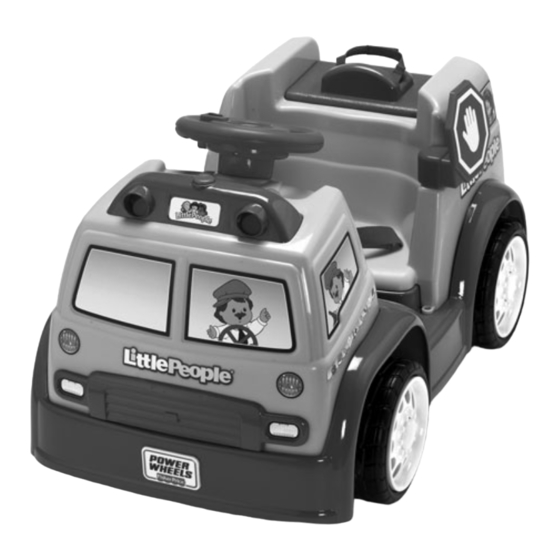

Product features may vary
from the picture above.
Owner's Manual
with Assembly Instructions
For Models N8415
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fisher-Price POWER WHEELS LittlePeople N8415
Summary of Contents for Fisher-Price POWER WHEELS LittlePeople N8415

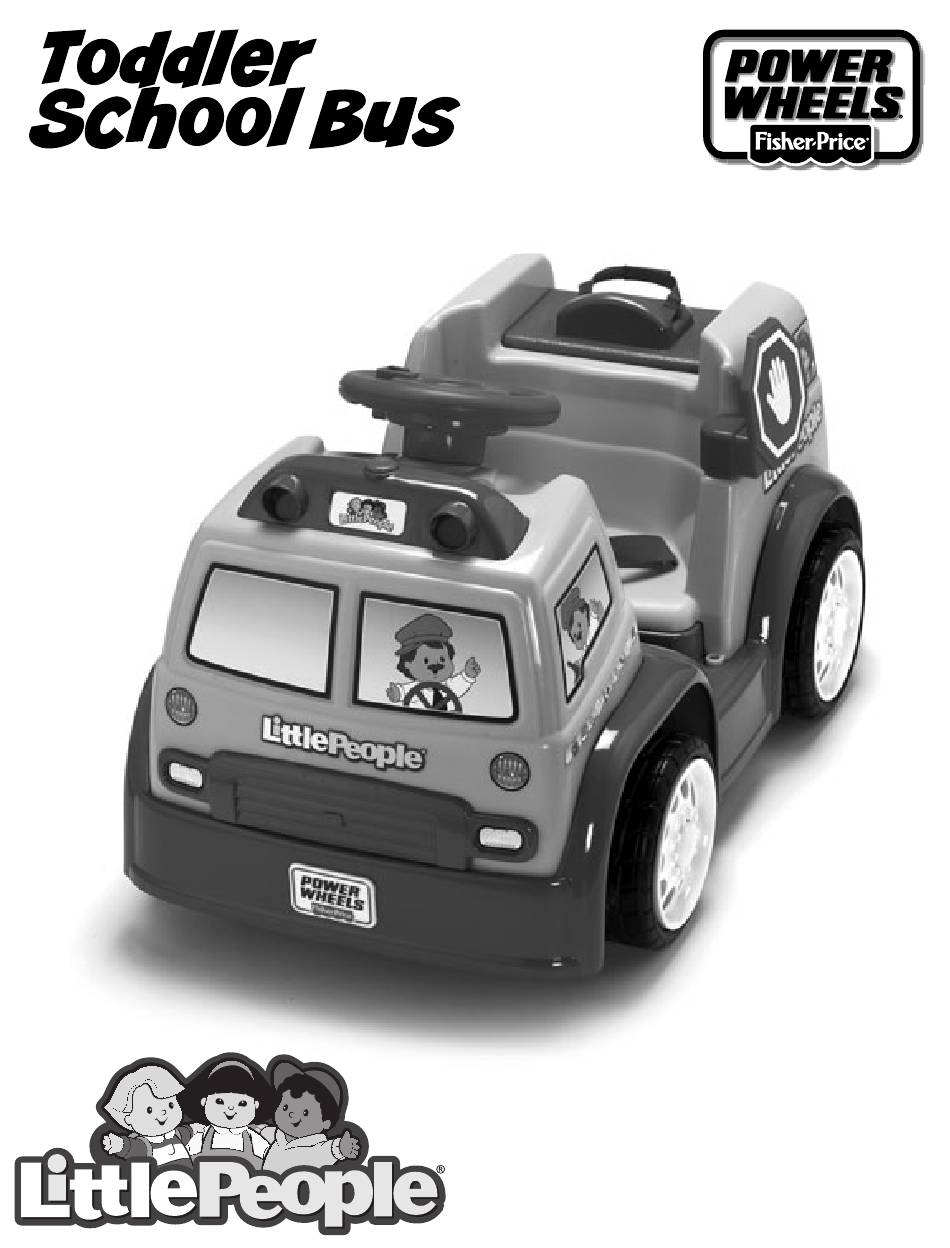

- Page 1 Please read this manual and save it with your original sales receipt. Tool needed for assembly: Phillips Screwdriver (not included). Use only with a Power Wheels ® 6 Volt (4.0 Amp/Hr.) Rechargeable Battery with Built-in Thermal Fuse ® and a Power Wheels 6 Volt (4.0 Amp/Hr.) Charger (both included).
-
Page 2: Table Of Contents
• Use this vehicle ONLY outdoors. Most interior flooring can perform non-warranty repairs for a minimal charge. To find the be damaged by riding this vehicle indoors. Fisher-Price ® will... -
Page 3: Warnings And Cautions
WARNINGS AND CAUTIONS ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. -
Page 4: Parts
PARTS • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751; rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. -
Page 5: Parts Picture
PARTS PICTURE Seat Belt Doll Seat Belts Seat Belt Stop Sign Steering Wheel Sounds and Lights Box Vehicle N8415pr-0920... -
Page 6: Battery Charging
BATTERY CHARGING ELECTRICAL HAZARD ELECTRICAL HAZARD WARNING CAUTION • Battery can fall out and injure a child if vehicle Use the charger in dry locations only. tips over. Always use battery retainer. • PREVENT FIRE About Thermal Fuses - Never modify the electrical system. Your Power Wheels®... - Page 7 BATTERY CHARGING IMPORTANT! The battery must be removed from your vehicle for Battery Installation the initial charge in order to complete assembly. After assembly is complete, you do not need to remove the battery from your vehicle to recharge it. 1.5V x 1 “AA”...
-
Page 8: Assembly
ASSEMBLY WARNING Seat Belt Fasteners Children can be harmed by small parts, sharp edges and sharp points in the vehicle's T-Loops unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle. - Page 9 ASSEMBLY Steering Wheel Connector Motor Harness Connector • Plug the steering wheel connector into the motor • While pushing down on the steering wheel, insert two #8 x½" harness connector. (1.3 cm) screws into the holes in the steering wheel base. Tighten the screws.
-
Page 10: Decoration
DECORATION LEFT SIDE VIEW RIGHT SIDE VIEW N8415pr-0920... -
Page 11: Battery Installation
BATTERY INSTALLATION ® IMPORTANT! Use only a Power Wheels 6 volt (4.0 Amp/Hr.) Battery Door battery and built-in thermal fuse. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels ®... -
Page 12: Battery Care And Disposal
BATTERY CARE AND DISPOSAL Care Disposal If a battery leak develops, avoid contact with the leaking acid • Your Power Wheels ® battery is a non-spillable sealed lead-acid and place the damaged battery in a plastic bag. See information battery. It must be recycled or disposed of in an environmentally below for proper disposal. -
Page 13: Safe Driving Rules
SAFE DRIVING RULES Teach Safety Rules to Children RIDING HAZARD While children can quickly develop the skill necessary to drive this vehicle, it is important to remember that their judgment skills are WARNING still very immature. Unsupervised driving by children can lead to serious injury. -
Page 14: Vehicle Operation
® Fisher-Price will not be responsible for damage to the floor • During snowy or rainy weather, the vehicle should be stored if the vehicle is used indoors. -
Page 15: Limited Warranty
LIMITED WARRANTY Bumper-to-Bumper* Limited Warranty *One year limited warranty from the date of purchase on the Power Wheels ® vehicle. Six month limited warranty on the 6 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ®... -
Page 16: Problems And Solutions Guide
PROBLEMS AND SOLUTIONS GUIDE IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Relations, toll-free at 1-800-348-0751 between 9 AM - 7 PM (EST) Monday through Friday and 11 AM - 5 PM (EST) Saturday. - Page 17 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Short run time (Less than Undercharged battery Charge the battery. A new battery should have been charged for at least 18 hours before using the vehicle for the first time. After first- 1 - 3 hours per charge) time use, recharge the battery for at least 14 hours after each use.
- Page 18 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Sometimes the vehicle doesn’t Loose wire or connector Check all wires around the motors and all connectors to make sure run, but other times it does they are tight. Motor or electrical switch damage Contact your local Power Wheels ®...
-
Page 19: Fcc Statement
FCC STATEMENT (United States Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 20 Authorized Service Center. For the location nearest you, visit us on-line at www.powerwheels.com. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2008 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
