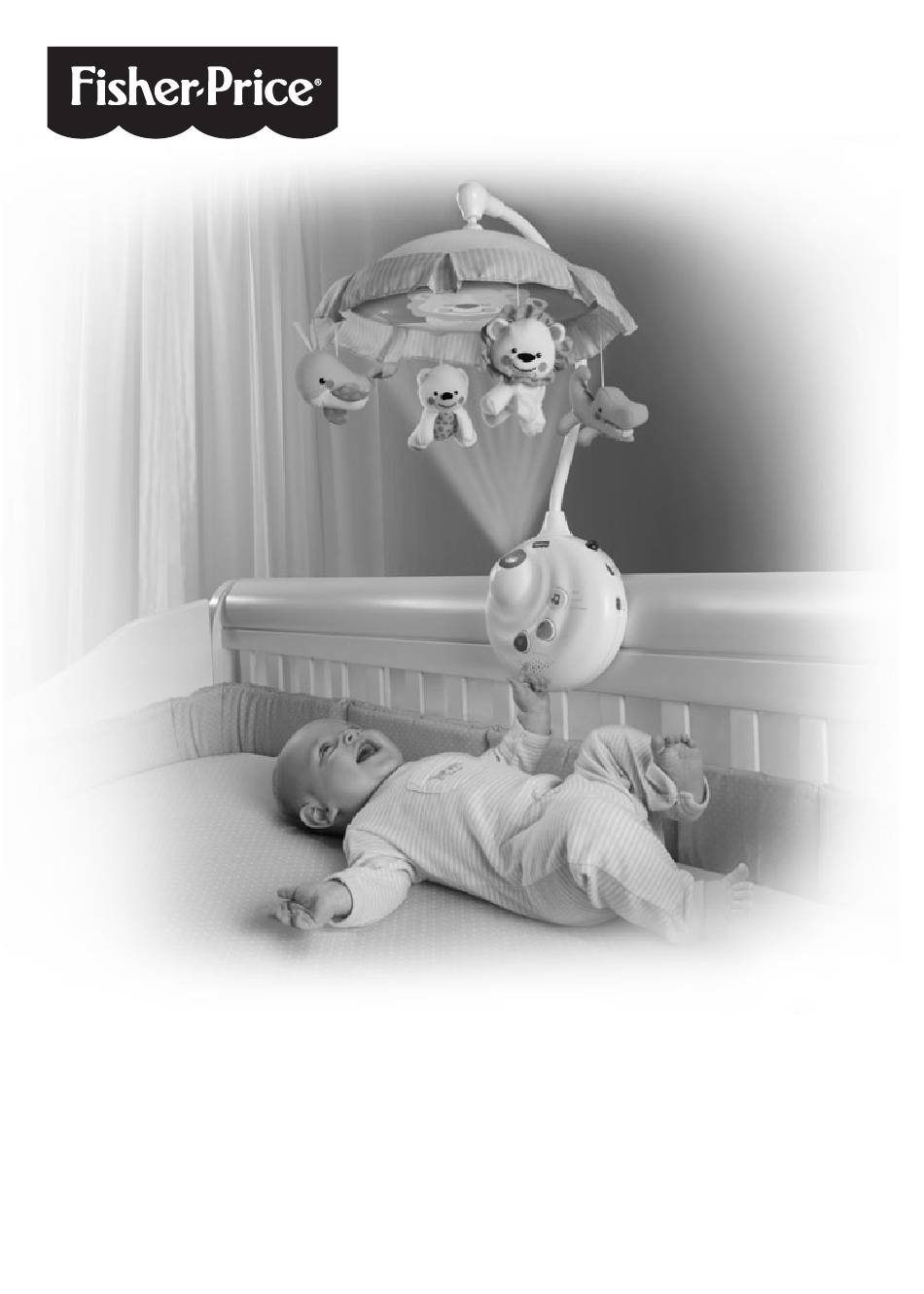

N8849
Please keep this instruction sheet for future reference,
as it contains important information.
Requires four "D" (LR20) alkaline batteries for mobile
operation and two "AAA" (LR03) alkaline batteries for
remote operation (batteries not included).
Adult assembly is required.
Tool required for assembly: Phillips screwdriver (not included).
fisher-price.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fisher-Price N8849
Summary of Contents for Fisher-Price N8849
- Page 1 N8849 Please keep this instruction sheet for future reference, as it contains important information. Requires four “D” (LR20) alkaline batteries for mobile operation and two "AAA" (LR03) alkaline batteries for remote operation (batteries not included). Adult assembly is required. Tool required for assembly: Phillips screwdriver (not included).
-
Page 2: Consumer Information
Consumer Information WARNING Prevent Entanglement Injury • K eep out of baby’s reach. • R emove mobile portion of product from crib or playpen when baby begins to push up on hands and knees. • T his product may not attach to all crib designs. Do not add additional strings or straps to attach to crib or playpen. • U se ONLY attached to a crib. IMPORTANT! Always attach with all provided fasteners tightly to a crib or playpen according to the instructions. - Page 3 Parts Canopy 4 Soft Toys Crib Adaptor Base Remote Note: All of the screws used to assemble this toy are attached to the product. Follow these instructions carefully to fully secure the screws. Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten the screws.
-
Page 4: Battery Installation
Battery Installation We recommend using alkaline batteries for longer battery life. 1,5V x 4 “D” (LR20) Mobile Base • L oosen the screws in the battery compartment door with a Phillips screwdriver and remove the door. • I nsert four “D” (LR20) alkaline batteries. • R eplace the battery compartment door and tighten the screws. IMPORTANT! Under normal use conditions, the batteries in the mobile base will require replacement more often than the batteries in the remote. When sounds or lights become faint or stop, it’s time for an adult to change the batteries. 1,5V x 2 "AAA" (LR03) Remote • L oosen the screw in the battery compartment door with a Phillips screwdriver and remove the door. - Page 5 Assembly Base Crib Adaptor • Fit the crib adaptor to the base and tighten the screws. IMPORTANT! Make sure the straps are over the top of the crib adaptor. Canopy • Fit the canopy onto the peg on the end of the arm. Push to "snap" in place.
- Page 6 Assembly PRESS SLIDE Socket • F irst, press the button on the mobile base, next to the socket and then slide the socket door open • Fit the arm into the socket in the base and tighten the screws. • F it the string on a soft toy through the slot in the canopy. Pull down gently on the soft toy to secure the string on the canopy. • Repeat this procedure to attach the remaining soft toys to the canopy. ©2012 Mattel. All Rights Reserved. PRINTED IN CHINA N8849b-0921...
- Page 7 Crib Attachment Crib Top Rail Base Buckles • Position the base so that the decorated side faces the inside of the crib. • Fit the base onto the crib top rail. • M ake sure the top strap is hanging over the crib top rail. Pull the bottom strap through the crib rails. • Buckle the straps. Make sure you hear a “click”. • Make sure the straps are tightened securely around the crib rail. • W hile pushing the tab at the bottom of the buckle, pull the free end of the strap to tighten on the rail. Hint: You can secure the free end of the strap to the base. • T o loosen the strap for removal, simply pull the buckle down.
- Page 8 Crib Attachment • Tie the base strings to a crib spindle. Note: It is better the tie the strings in a knot than a bow, since a bow may be easily untied. Bottom of Base At Least 7 Inches (18 cm) Mattress • I f the distance between the base and the mattress is less than 7 Inches (18 cm), lower the crib mattress.
- Page 9 Remote • I n the unlikely event that use of the remote interferes with normal use of other remote controlled equipment, such as televisions or stereos, or use of other electronic or battery powered appliances interfere with operation of the mobile, do not use both at the same time. • Y ou may notice a loss of range between the remote and the mobile when using in bright light. For best performance, avoid using the remote in areas of bright light. Move the mobile, or reduce the amount of light to improve performance. • P osition the mobile so that the receiver arrow points towards the area that the remote will be used.
- Page 10 Projector/Sound Switch Slide the switch to: - turns on sounds, mobile and projector - turns on sounds and mobile - turns on sounds only Power/Volume Switch • S lide the switch to ON with low volume or ON with high volume . When finished using the product, slide the switch OFF . Music or Sound Select Buttons Press a music or sound button on the front of the mobile base: - f or Bach, Beethoven...
- Page 11 Convert to Music Box Remove the mobile and use as a music box with a projection show! • L oosen both screws in the arm near the mobile base. Lift and remove the arm. • C lose the socket door on top of the mobile base. IMPORTANT! The socket door must be closed for sound and projection operation. If sounds or lights are not working, make sure the door is completely closed.
- Page 12 These limits are designed to provide reasonable protection against harmful interference in a residential installation. Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052. Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052. Hearing-impaired consumers: 1-800-382-7470. Hearing-impaired consumers: 1-800-382-7470.
