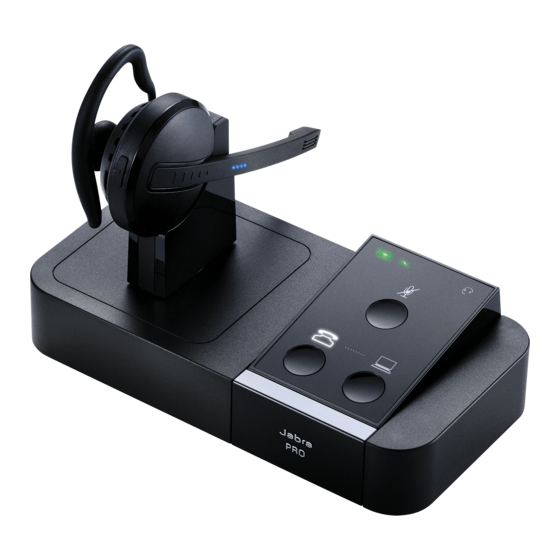

Jabra Pro 9450 Duo

How to connect my Jabra Pro 9450 with Alcatel Touch 4029,

4039

Prerequisite:

Jabra Pro 9450 + Jabra Link 14201-36

In combination with one of the following phones:

Touch 4029

Touch 4039

2-sided end:

Insert the RJ45 plug (red banderole) into the red socket marked with "

AUX" and the RJ10 plug (blue banderole) into the blue socket identified

with the "phone" symbol on the base of the Jabra Pro 94x0.

2-fold Y-coupling end :

Insert the 3.5 mm phone plug into the "headset" interface and the RJ12

plug into the bell socket on the phone. Now plug the phone lead of the

phone directly into the additional socket of the Y cable.

https://www.apac.jabra.com/supportpages/jabra-pro-9450/9450-29-707-

103/faq/e9368bf8-9c81-4952-a09b-639003487ec5

13/12/2023 04:53

Page 1 of 4

Table of Contents

Do you have a question about the Pro 9450 Duo and is the answer not in the manual?

Page 1 Insert the RJ45 plug (red banderole) into the red socket marked with " AUX" and the RJ10 plug (blue banderole) into the blue socket identified with the “phone” symbol on the base of the Jabra Pro 94x0. 2-fold Y-coupling end : Insert the 3.5 mm phone plug into the "headset"...
Page 2 If the automatic configuration has not worked, please select the MSH mode manually. Base setup: Set the phone set-up switch to position "A". Microphone level setup: Remove the cover from the base of the Jabra Pro 9450 and make a call https://www.apac.jabra.com/supportpages/jabra-pro-9450/9450-29-707- Page 2 of 4 103/faq/e9368bf8-9c81-4952-a09b-639003487ec5...
Page 3 Important: The dial tone signal in the headset will only transfer when one of the following ring tones has been selected on your phone. Standard / Classic / Cold River / Dooing-Dooing . > Menu > Settings > Dial tone > Internal / External https://www.apac.jabra.com/supportpages/jabra-pro-9450/9450-29-707- Page 3 of 4 103/faq/e9368bf8-9c81-4952-a09b-639003487ec5...
Page 4 Dial phone number > the following now appears in the phone display "transfer" > now press the appropriate function button next to the phone display > when connected you must now end the call using the button identified with the "handset". https://www.apac.jabra.com/supportpages/jabra-pro-9450/9450-29-707- Page 4 of 4 103/faq/e9368bf8-9c81-4952-a09b-639003487ec5...
