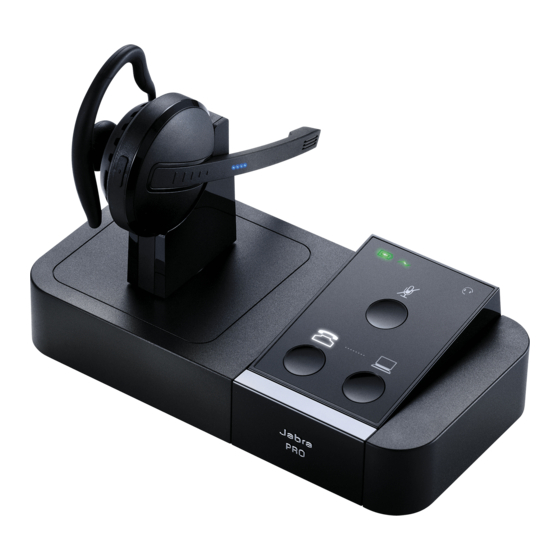

Jabra Pro 9450 Duo

How to connect my Jabra PRO 9450 with Nortel IP 1120E,

1140E, 1150E, 1165E

Prerequisite:

Jabra PRO 9450 + Jabra LINK 14201-32

In combination with one of the following phones:

Nortel IP 1120E

Nortel IP 1140E

Nortel IP 1150E

Nortel IP 1165E

from firmware release 3.1 for IP phones.

1. Connect the 1-sided end (USB plug) of the EHS adapter with the USB

socket on your phone.

2. Insert the RJ9 plug into the socket marked with a "phone" symbol and

the RJ45 plug into the socket marked with "AUX" on the base.

You now have the option of setting up the headset on your phone via the

automatic or manual configuration.

To start the automatic configuration, ask someone to call you on this

phone and wait at least 10 seconds before taking the call. The appropriate

EHS mode should now be installed.

https://www.apac.jabra.com/supportpages/jabra-pro-9450/9450-29-707-

103/faq/990d213f-23b1-4173-877c-de7230746d09

19/01/2023 18:32

Page 1 of 3

Table of Contents

Do you have a question about the Pro 9450 Duo and is the answer not in the manual?

Page 1 19/01/2023 18:32 Jabra Pro 9450 Duo How to connect my Jabra PRO 9450 with Nortel IP 1120E, 1140E, 1150E, 1165E Prerequisite: Jabra PRO 9450 + Jabra LINK 14201-32 In combination with one of the following phones: Nortel IP 1120E Nortel IP 1140E...
Page 2 Set the phone set-up switch to position "A". Microphone level setup: Remove the cover from the base of the Jabra PRO 9450 and make a call with the headset, to a colleague for example. If you are too loud or too quiet to the person you are calling, please use the volume adjuster until you achieve the optimum volume level.
