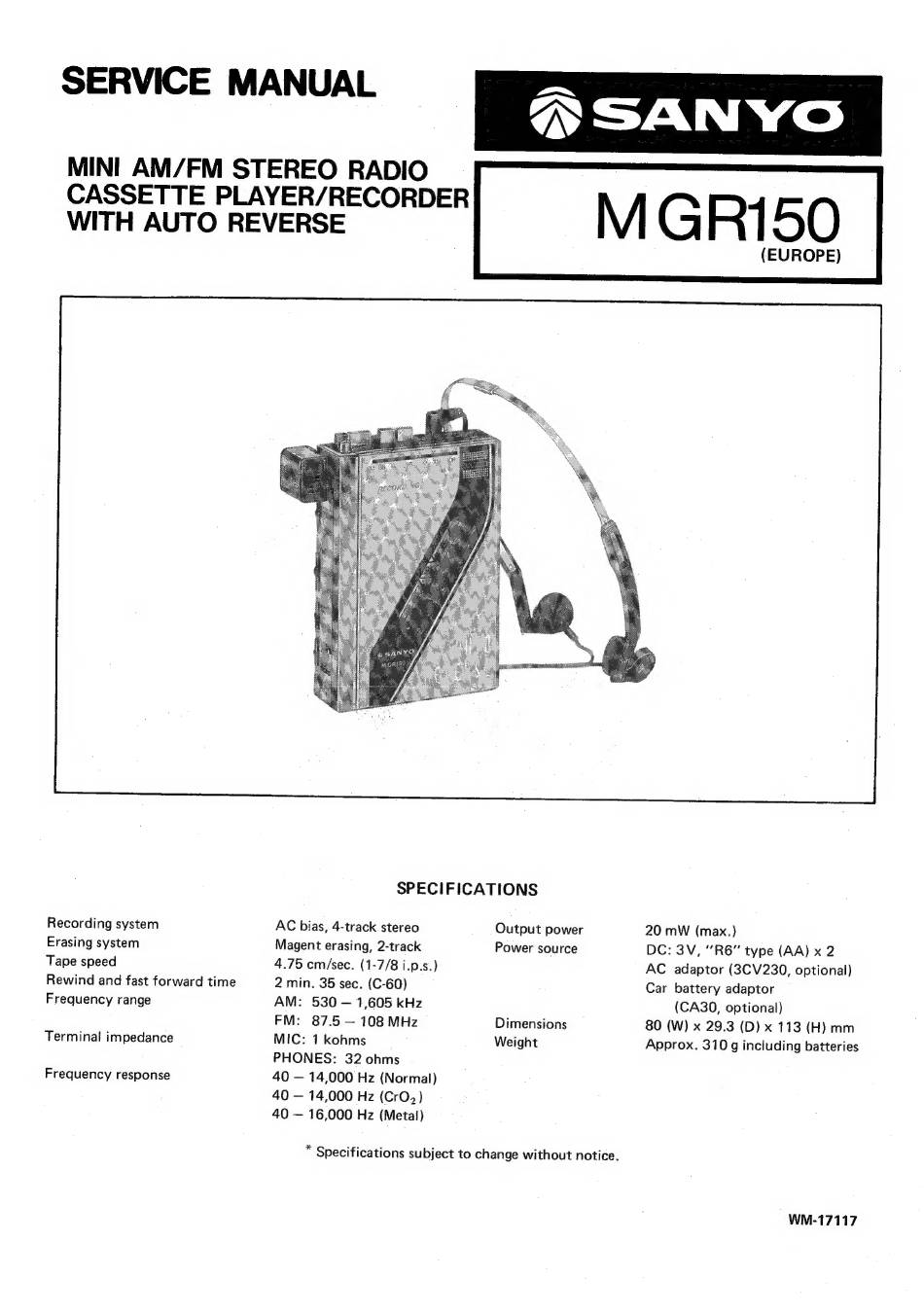

Sanyo MGR150 Service Manual

SERVICE MANUAL
(EUROPE)
Recording system
Erasing system
Tape speed
Rewind and fast forward time
Frequency range
Terminal impedance
Frequency response
SPECIFICATIONS
Output power
Power source
AC bias, 4-track stereo
Magent erasing, 2-track
4.75 cm/sec. (1-7/8 i.p.s.)
2 min. 35 sec. (C-60)
AM: 530 — 1,605 kHz
FM: 87.5 — 108 MHz
MIC: 1 kohms
PHONES: 32 ohms
40 — 14,000 Hz (Normal)
40 — 14,000 Hz (CrO,)
40 — 16,000 Hz (Metal)
Dimensions
Weight
20 mW (max.)
DC: 3V, "R6" type (AA) x 2
AC adaptor (3CV230, optional)
Car battery adaptor
(CA30, optional)
80 (W) x 29.3 (D) x 113 (H) mm
Approx. 310 g including batteries
WM-17117
