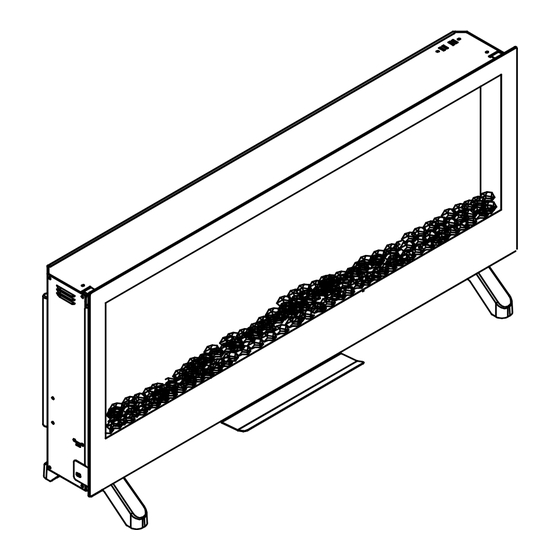

PACKAGE CONTENTS DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY PART Wall Mount Bracket A Foot Remote Control Crystal Wall Mount Bracket B Wall Mount Template Electric Fireplace Wall Mount Bracket C Wall Mount Bracket D Glass Front Warm Air Deflector...
HARDWARE CONTENTS (shown actual size) Bolt Allen wrench Flat washer Spring washer Bracket IMPORTANT INSTRUCTION When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read all instructions before installing or using this heater.
Page 4
Always unplug this fireplace when not in use. Turn off all controls prior to removing the plug from the power source. This fireplace is designed for indoor use only. NEVER use this device outdoors. Connect this fireplace only to properly grounded outlets. Make sure plug is fully inserted into the electrical outlet to avoid fire caused by short circuit.
Wall Mount Instructions NOTE: Front view of fireplace WALL NOTE: Front view of fireplace WALL Hardware Used x 10...
Page 6
Wall Mount Instructions Hardware Used NOTE: Bolt View from behind the fireplace...
Page 7
Wall Mount Instructions NOTE: Left view of fireplace WALL NOTE: Front view of fireplace WALL Hardware Used Bracket...
Page 8
Wall Mount Instructions 7.Place the hooks on the top of the Glass WALL Front(G) into the corresponding holes in the top of the Electric Fireplace(D) as shown in figure 7. Then, secure the Glass Front(G) to the side of the Fireplace with Bolt(DD) using the screwdriver (Not provided).
Stand Instructions 2. With assistance from another adult, place the Electric Fireplace(D) upside down on a soft, smooth surface. Attach Warm Air Deflector(H) to Electric Fireplace(D) with Bolt(CC) using the screwdriver (Not provided). NOTE: The Warm Air Deflector (H) is required when the stand option is chosen.
Page 10
Stand Instructions Hardware Used NOTE: Bolt View from behind the fireplace 4.With assistance from another adult, stand unit upright. Place the Crystals (B) evenly across the ember bed area as shown in figure 4.
Page 11
Stand Instructions 5. Place the hooks on the top of the Glass Front(G) into the corresponding holes in the top of the Electric Fireplace(D) as shown in figure 5. Then, secure the Glass Front(G) to the side of the Fireplace with Bolt(DD) using the screwdriver (Not provided).
Page 12
OPERATING INSTRUCTIONS Remote Control(J) Control Panel on Electric Fireplace(D) WARNING-The fireplace must be properly installed before it is used. Turns the electric fireplace insert either on or off. When the heater is off, press this button once to turn the heater on; press it again to turn the heater off. Controls the heating element.
Page 13
OPERATING INSTRUCTIONS is the children lock setting button. Press once and the display panel will show up "L". When children lock function is activated, the electric fireplace will be locked to prevent misuse by children. To unlock, press this button again, the "L" displayed on the digital panel disappears and will now show the environmental temperature, indicating that the electric fireplace has been unlocked.
OPERATING INSTRUCTIONS Temperature setting and operation Under the use of electric fireplace, touch , if the temperature shown on digital display is greater than the environmental temperature, heater will be turned on, hot air will start blowing; if temperature shown on digital display is less than the environmental temperature, heater will not turn on, but fan will turn and blow cold air for a while and then stop.
OPERATING INSTRUCTIONS Display panel hibernate mode Under the status that the electric fireplace is turned on, if there isn't any operation in 12-15 seconds, any numbers or indication light shown on digital display will all disappear. At this condition, touch any buttons(either those on remote control or control panel), digital display will show the current environmental temperature.
CARE AND MAINTENANCE Make sure the unit is turned OFF, unplugged and the heating elements of heater are cool whenever you are cleaning the heater. Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim.
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION No power, unit does not 1. Unit is not plugged into a 1. Verify that unit is plugged turn on, or power lights do standard 120-volt outlet. into a standard 120-volt outlet. not light up. 2.
Page 18
CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
