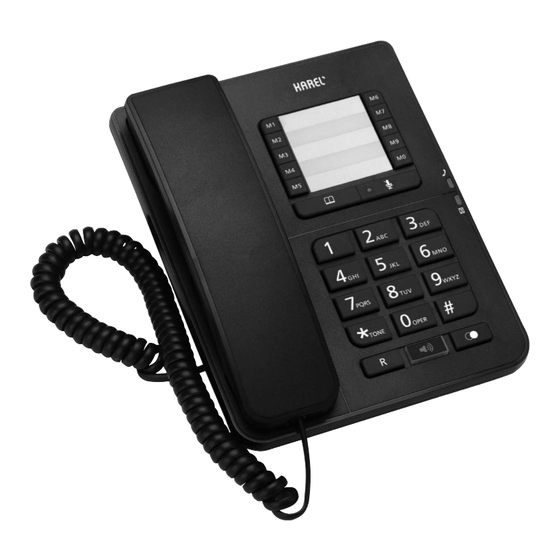

The guide is a user manual for the Karel TM142 analog phone. It includes a parts checklist, installation instructions, details on telephone keys and configuration, phone operation guidelines, safety instructions, and an appendix.

This answer is automatically generated

abdil balcı
February 22, 2025

hafızaya tel.nosunu kaydetme işlemini gerçekleştirme

Subscribe to Our Youtube Channel

Summary of Contents for Karel TM142

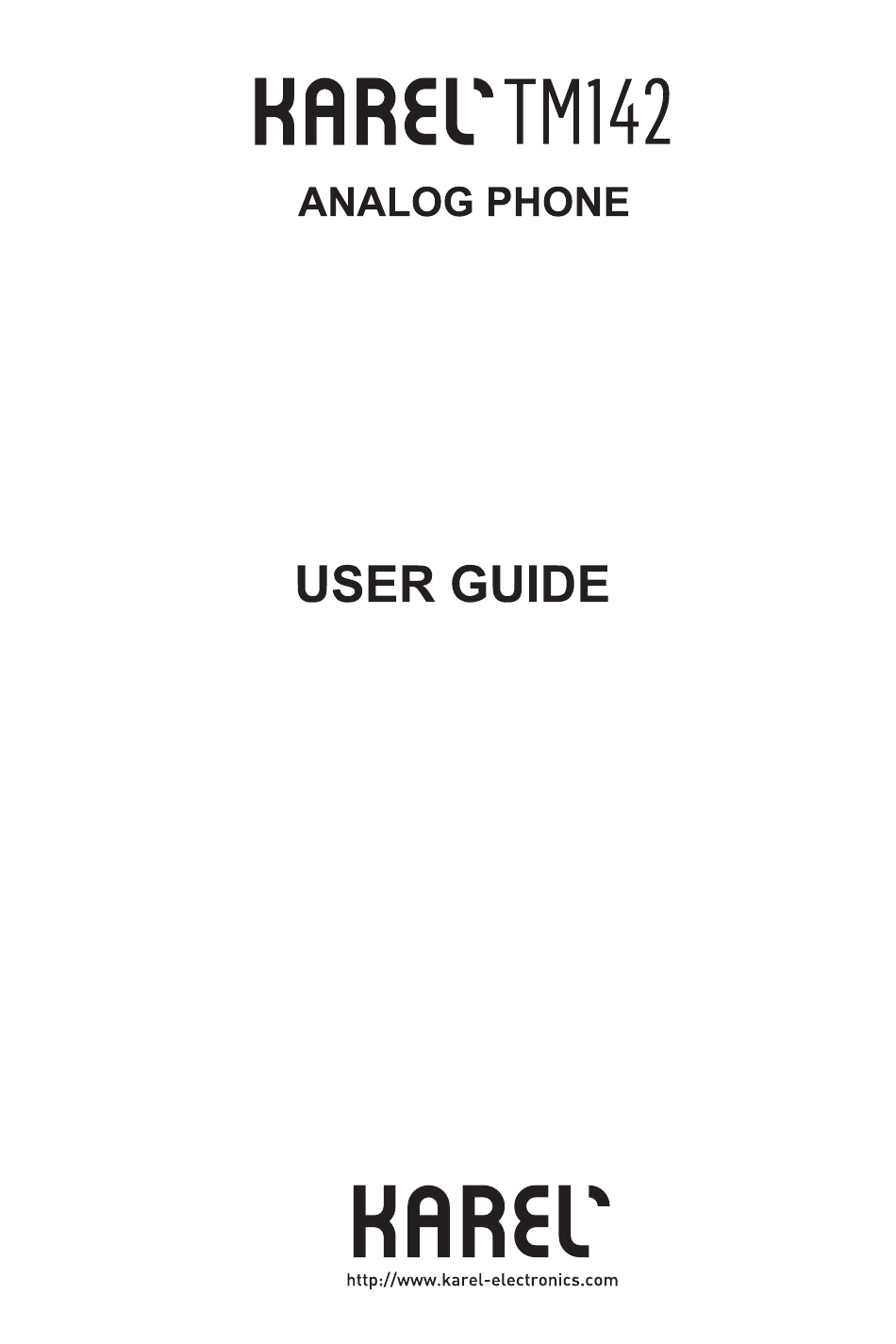

  • Page 2 ANALOG PHONE USER GUIDE TM142...
  • Page 3: Table Of Contents

    CONTENTS PARTS CHECKLIST:..............1 INSTALLATION:..............1 TELEPHONE KEYS:..............3 TELEPHONE CONFIGURATION:..........4 PHONE OPERATION:..............5 SAFETY INSTRUCTIONS:............7 APPENDIX:................8...
  • Page 4: Parts Checklist

    ANALOG PHONE USER GUIDE PARTS CHECKLIST • 1 base • 1 line cord • 1 handset • 1 handset cord • 1 user manual INSTALLATION Installing the phone Connecting the handset. Connecting the telephone line. Wall mounting: Rotate the wall mounting knob as shown in the following illustration:...
  • Page 5 2. Install the base unit on the wall and then plug one end of the line cord into the tele-phone connection socket and the other end into the modular telephone line Jack marked ( 3. Attach the telephone at the wall as shown in the following figure.
  • Page 6: Telephone Keys

    ANALOG PHONE USER GUIDE TELEPHONE KEYS...
  • Page 7: Telephone Configuration

    TELEPHONE CONFIGURATION Note: Immediately change the following factory settings. Speaker volume level adjustment: You can adjust the speaker volume level to high, middle, low using the switch on the right side of your telephone. Ringer volume level: The phone will ring when there is an incoming call. You can set the ringer volume to high, middle or low level.
  • Page 8: Phone Operation

    ANALOG PHONE USER GUIDE PHONE OPERATION...
  • Page 9 Mute: In off-hook state, the user can press the button to activate the mute function. When (MUTE) is on, the MUTE symbol will appear on the screen. Press the button to deactivate the mute function and resume normal conversation. Access telephone operator services: During conversation, press button to interrupt momentarily the telephone conver- sation and to access your telephone operator’s services.
  • Page 10: Safety Instructions

    ANALOG PHONE USER GUIDE SAFETY INSTRUCTIONS Please observe the following instructions: • Place the phone at the appropriate distance: • – from sources of heat, • – from direct sunlight, • – from other electrical appliances. • Protect your phone from damp, dust, aggressive liquids and steam. •...
  • Page 11: Appendix

    APPENDIX Care: Your telephone is a sophisticated product in terms of design and construction, and should therefore be handled with care. To clean the telephone, wipe first with an antistatic cloth or a damp, soft leather cloth and then dry using a dry cloth. Recycling (environmental protection): At the end of the product’s life cycle, the telephone must not be disposed of in normal domestic waste.
  • Page 12 ANALOG PHONE USER GUIDE Approval and conformity: This corded analog telephone complies with the basic requirements contained in the R&TTE Directive 1999/5/EC on radio equipment and telecommunications terminal equip- ment and is suitable for connection and operation in the member state indicated on the base station and/or packaging.
