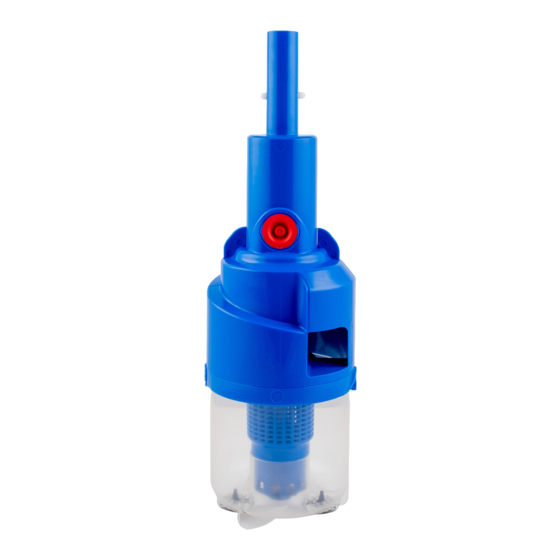

- Page 1 ® DYNAMO ® Operator Manual Cordless Skimmer Basket Vacuum READ AND SAVE THESE INSTRUCTIONS WARNING: Read carefully and understand all safety warnings before operating. Failure to do so may result in serious personal injury.
-
Page 2: Important Safety Instructions
20. Keep hair, loose fitting clothing and all body parts away from openings and moving parts of this cleaner. USAGE INFORMATION 21. Use this product only for its intended purpose as described in this manual. Use only Water Tech accessories and filters. 22. This product is not intended for commercial use. -
Page 3: Safety Alert
SAFETY AND USAGE SYMBOLS The following symbols and meanings are intended to explain the levels of risk associated with this product: SYMBOL SIGNAL MEANING WARNING! Indicates a hazardous situation, which, if not avoided, could result in death or serious injury. DANGER! Indicates a hazardous situation, which, if not avoided, could result in death or serious injury. - Page 4 RMA number in thick black indelible marker on two sides of the box. (4) Send the package by USPS or express courier of choice to: Water Tech Corp, 10 Alvin Court, East Brunswick, New Jersey 08816; (WT suggests you insure the contents of your package.) WT is not responsible for lost, stolen or damaged property in transit to WT.
-
Page 5: Product Breakdown
Product Breakdown Model: 18001JL (1) Debris Chamber (2) Drain Valve (3) 2-Piece Pole Set (P18X031) (P18X881) (P15X2PC) (4) Pole Hook Adapter (5) Charger (P18X061) (LC099-2S6SQ) Only use the battery charger supplied with the cleaner. Specifications Battery charger Input..............100-240V-50/60HZ, 0.3A Maximum Battery charger Output....................8.4V, Battery Tech Data................7.4V, 2200mAH, 16.28Wh Li-Ion Water temperature range..........Maximum 96°F, (35°C) Minimum 40°F, (5°C) - Page 6 STEP 2: Attach Poles Use the (2) Section Poles and connect them to the skimmer basket vacuum, creating an extended pole for stand-up use. STEP 3: Connect Hook Attachment Connect the Hook Attachment piece to the top of the pole. The Hook Attachment uses the same telescopic connection method as the Pole Attachments and all other standard telescopic poles.
- Page 7 STEP 4: Fully Charge the Unit Using the Wall-Charger included with the skimmer basket vacuum, charge the unit fully before beginning use. The charging port is located at the top of the unit (see photo below). Light on the charger will turn green once the unit is fully charged. To Begin Use Once you have completed the set-up/assembly, you are ready to begin vacuuming the skimmer basket debris.
- Page 8 STEP 2: Start the Unit Turn the unit on by pressing the Red Button located near the Debris Chamber. You will hear the motor turn on, which is how you know it is charged and ready for use. STEP 3: Purge the Air Place the unit in the water, keeping the debris intake below the water line.
- Page 9 STEP 4: Begin Vacuuming Debris Once the air is fully purged, the skimmer basket vacuum will begin to suction the debris into the Debris Chamber. Follow the tips below for proper product use and optimal debris intake/suction power: 1. Keep the Debris Intake below the water line to maintain suction power. Water line Intake 2.
- Page 10 When To Stop Vacuuming For Regular Maintenance: Debris will be gone from skimmer basket and there will be no more debris floating in the skimmer basket. For Heavy Debris Collection: Debris will stop entering the intake. This is how you know to turn off the unit and empty the debris chamber (see Step 5) and continue vacuuming if need be.
- Page 11 4. Reattach for next use. Storage and Charging Storage and Charging • Always store and charge your cleaner in a cool, dry indoor shelter. • Recharge the cleaner indoors for 4 hours after each month of inactivity. • Never leave your charger connected to the cleaner for more than 24 hours. Suggestions / Tips 1.
- Page 12 END OF LIFE BATTERY DISPOSAL - EN The maintenance free, Lithium Ion battery in your unit must be properly disposed of in accordance to State and local law. To confirm if recycling is required; contact your local authority for information. WARNING! •...
