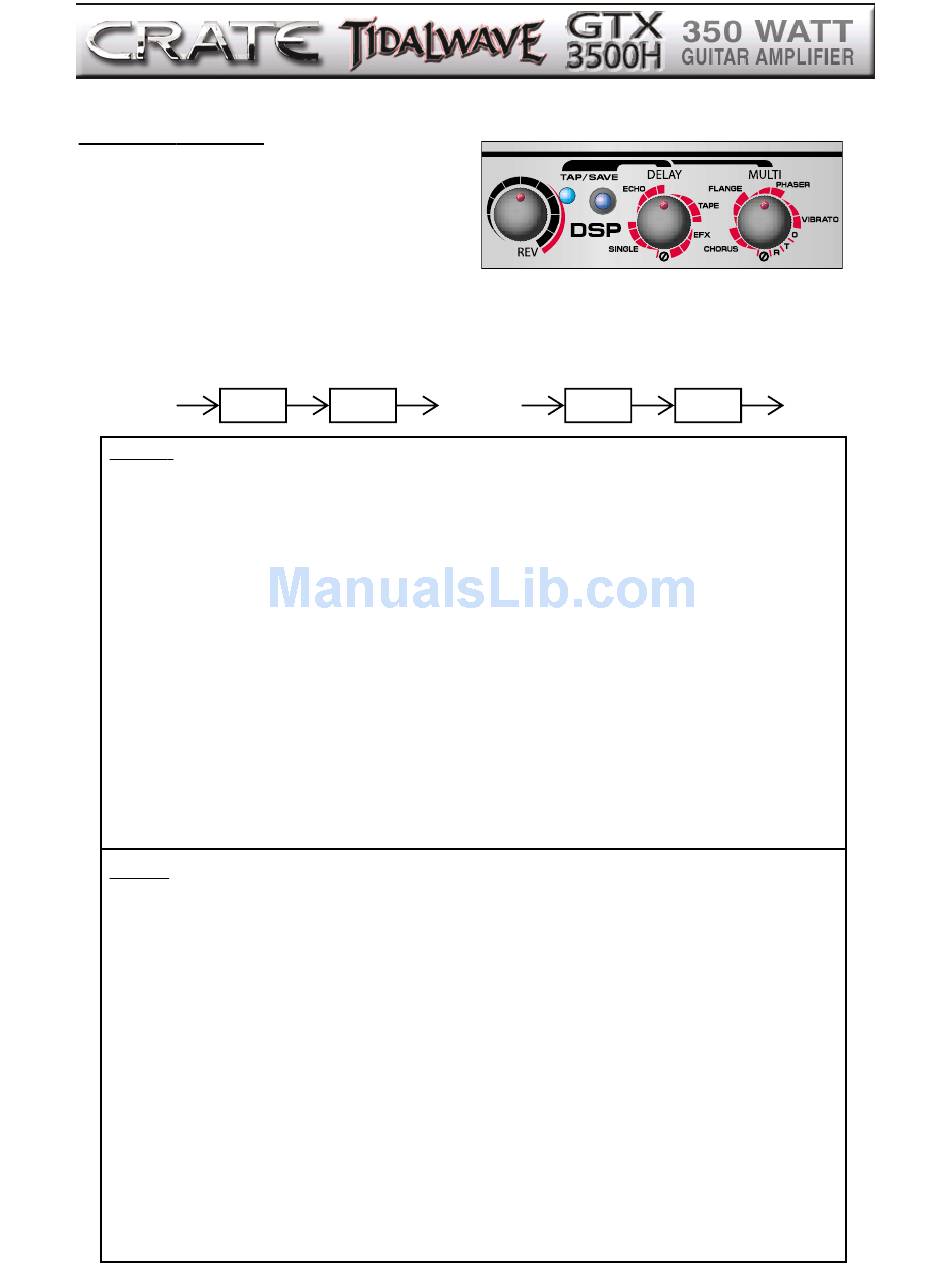

The DSP Section:

The GTX3500H features DSP controls
for Reverb, Delay and Multi. Complete
information about the Delay and Multi
effects is given below. The Delay control
selects the delay or echo effects. All of
these effects have their speed controlled by the Tap/Save button. The Multi control
selects the "pitch modified" and wah effects. Many of these effects have their speed
controlled by the Tap/Save button. Additional information is provided on pages 5 and 10.
SIGNAL PATH FOR ECHO LO, MID & HI EFFECTS:
DELAY
DELAY:
NAME DESCRIPTION
Single LO Single delay w/low level
Single MID Single delay w/medium level
Single HI Single delay w/high level
Single MAX Single delay w/maximum level
Echo LO Echo w/low level
Echo MID Echo w/medium level
Echo HI Echo w/high level
Echo MAX Echo w/maximum level
Tape LO Tape echo w/low level
Tape MID Tape echo w/medium level
Tape HI Tape echo w/high level
Tape MAX Tape echo w/maximum level
Echo FX LO Echo w/low level, before multi effect
Echo FX MID Echo w/medium level, before multi effect
Echo FX HI Echo w/high level, before multi effect
Bypass dry signal - no effect
MULTI:
NAME DESCRIPTION
Chorus LO Chorus w/low depth
Chorus MID Chorus w/medium depth
Chorus HI Chorus w/high depth
Flange LO Flanger w/low depth
Flange MID Flanger w/medium depth
Flange HI Flanger w/high depth
Phaser LO Phaser w/low feedback
Phaser MID Phaser w/medium feedback
Phaser HI Phaser w/high feedback
Vibrato LO Vibrato w/low depth
Vibrato MID Vibrato w/medium depth
Vibrato HI Vibrato w/high depth
Octave Down Adds signal one octave lower
Touch Wah Touch-sensitive wah-wah
Reverse Wah Inverted wah-wah
Bypass Dry signal - no effect
SIGNAL PATH FOR ALL OTHER EFFECTS:
MULTI
TAP/SAVE BUTTON CONTROLS:
speed: 1 cycle/tap - tap period: .05–1 second
speed: 1 cycle/tap - tap period: .05–1 second
speed: 1 cycle/tap - tap period: .05–1 second
speed: 4 cycle/tap - tap period: .05–1 second
speed: 4 cycle/tap - tap period: .05–1 second
speed: 4 cycle/tap - tap period: .05–1 second
speed: 2 cycle/tap - tap period: .05–1 second
speed: 2 cycle/tap - tap period: .05–1 second
speed: 2 cycle/tap - tap period: .05–1 second
speed: 1 cycle/tap - tap period: .05–1 second
speed: 1 cycle/tap - tap period: .05–1 second
speed: 1 cycle/tap - tap period: .05–1 second
n/a
n/a
n/a
n/a
MULTI DELAY
TAP/SAVE BUTTON CONTROLS:
time: .05–1 second
time: .05–1 second
time: .05–1 second
time: .05–1 second
time: .05–1 second
time: .05–1 second
time: .05–1 second
time: .05–1 second
time: .05–1 second
time: .05–1 second
time: .05–1 second
time: .05–1 second
time: .05–1 second
time: .05–1 second
time: .05–1 second
n/a
