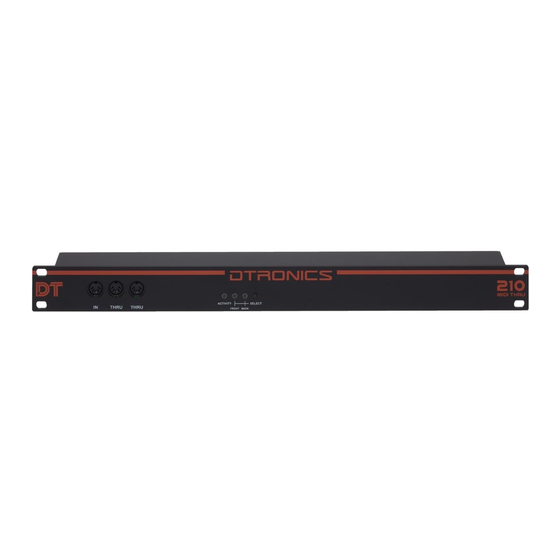

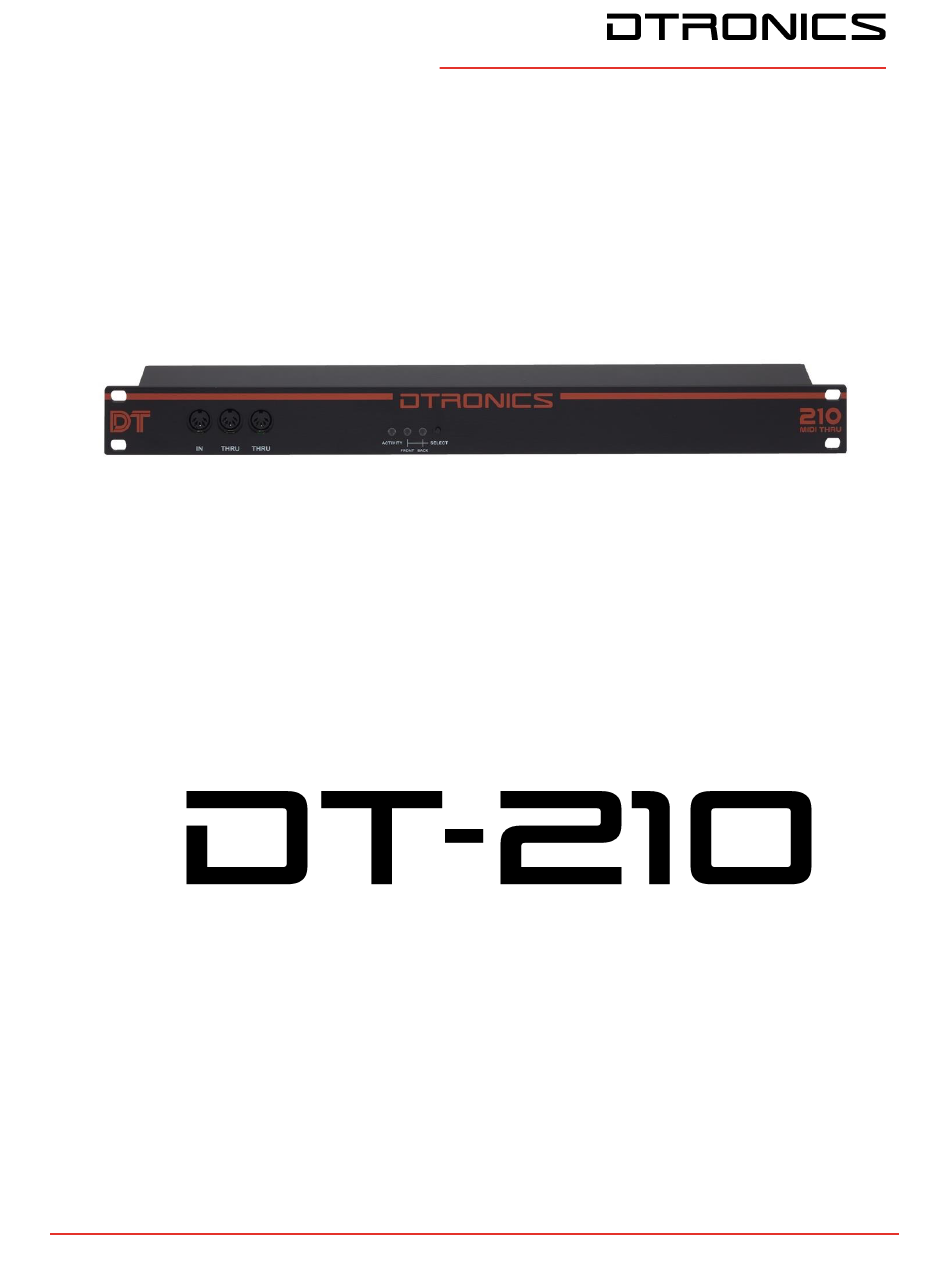

- Page 1 User’s Manual DT-210 MANUAL...
- Page 2 Index Document revisions ................3 1 Setup ....................4 Intended use ..................4 What is included ................. 4 Installation ..................4 2 Specifications ..................5 DT-210 MANUAL...
- Page 3 Document revisions FW version Date Doc. revision Change 20-09-2023 R1.0 V1.0 Initial document DT-210 MANUAL...
- Page 4 2. Connect the USB cable to a USB power adaptor. 3. Connect the receiving MIDI devices to the DT-210 outputs 4. Connect the sending MIDI device to the DT-210 input on the front or on the back. 5. Select the proper input with the input selector 6.
- Page 5 • Compatible with 3.3 V and 5V MIDI standard Dimensions DT-210 • width: 19” RACK mount model (483,00mm) • height: 1U (43,60mm) • depth: 36,20mm Weight DT-210, 670 gram Power consumption USB: 0.7 Watt max, < 0.1 Watt at standby DT-210 MANUAL...
- Page 6 DT-210 MANUAL...
