- Page 1 DTRONICS User’s Manual MANUAL...
-
Page 2: Introduction

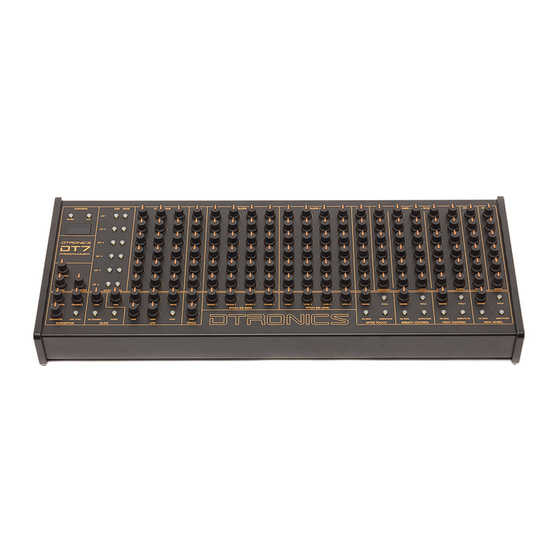

DTRONICS INTRODUCTION The DTronics DT7 Programmer was designed to give the DX/TX user the programming possibilities of an analogue synth. This makes FM-programming easier, more intuitive and more fascinating. It works with the YAMAHA DX-7, TX-7, DX-5,DX-1, TX-802, TX816 (TF-1) -
Page 3: Table Of Contents
DTRONICS Index INTRODUCTION ................... 2 Document revisions ................4 1 SETUP ....................5 Intended use ..................5 Box content ..................5 MIDI Connections IN / OUT ..............5 2 Operation ..................6 POWER UP ..................6 SET MIDI CHANNEL................6 MIDI LOOPS .................. -
Page 4: Document Revisions
DTRONICS Document revisions Date Version Change 16-01-2018 Initial document MANUAL... -
Page 5: Setup
The DT7 is intended for DX/TX user to create more programming possibilities and give the user the feeling of an analogue synth. It is recommended to disconnect the DT7 from your synth when playing your synth over midi. The DX7 is an old instrument from the beginning of midi. -
Page 6: Operation
The DX7 is an old instrument from the beginning of midi. It sometimes can’t handle large amounts of midi data. The DT7 has a DATA SPEED knob, turn it to the right to slow down midi messages from the DT7. -
Page 7: Operation
For the TX-216/816 it is not possible to set the LIMIT-LOW and LIMIT-HIGH with the programmer. Please refer to the YAMAHA manual for more information about this parameters. The INIT switch will create an INIT patch on the DX-7 The DUMP switch will dump ALL parameters from the DT7 MANUAL... -
Page 8: Troubleshooting
This can happen especially when used with a fast sequencer tempo and/or very short notes or turning some knobs fast on the DT7. In this case, simply turn of both devices and turn them on again. Adjust the DATA SPEED knob as described earlier. -
Page 9: Specifications
DTRONICS 5 SPECIFICATIONS Front Panel Indicator screen x 1 LFO Knob x 6 LFO Button x 1 Control Button x 2 Pitch Knob x 2 OSC MOD Button x 12 Pitch-EG-Rate x 4 Oscillator Knob x 18 Pitch-EG-Level x 4... -
Page 10: Rear Panel
DTRONICS Rear Panel Power switch Power input MIDI IN Connector MIDI OUT Connector Consumption: 3Watt (9VDC) Weight: 5.7 kg (Box included) Dimensions: 645(W) x 245(D) x 75(H) mm Dimensions box: 750(W) x 320(D) x 160(H) Accessories MIDI/Sync Cable x 1...
