- Page 1 DTRONICS DT-800 User’s Manual DT-800 MANUAL...
-
Page 2: Table Of Contents
Intended use ..................4 What is included ................. 4 Installation ..................4 2 Operation ..................5 Memory ....................5 Usb ...................... 5 Firmware version ................5 Firmware version update ..............5 3 Panel description ................7 4 Specifications ..................8 DT-800 MANUAL... -
Page 3: Document Revisions
DTRONICS Document revisions Date Doc. revision FW version Change 25-04-2020 R1.0 V1.0 Initial document DT-800 MANUAL... -
Page 4: Setup

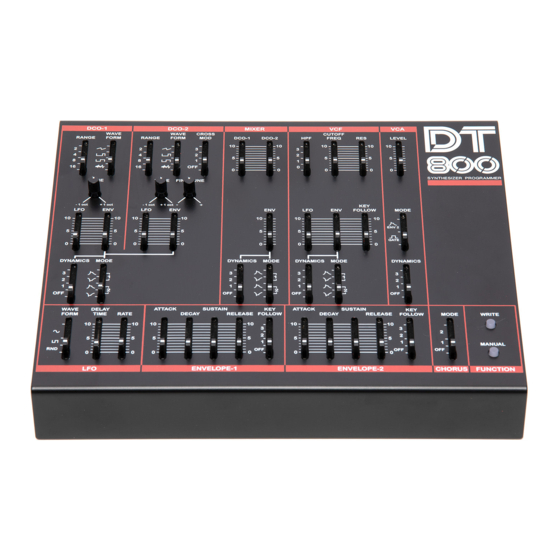

Setup Intended use The DT-800 is intended to create new sounds for your synthesizer. The DT-800 is a programmer for the JX-8P, MKS-70 and the JX-10 synthesizers. What is included Please ensure that your DT-800 includes the following: • DT-800 Programmer •... -
Page 5: Operation
Example: When the WRITE led flashes 2 times and the MANUAL led flashes 3 times the firmware version is 2.3 Firmware version update To use the bootloader in the DT-800 to update the firmware in the DT-800 follow the following steps: 1. Press the WRITE button 2. - Page 6 3. WRITE en MANUAL leds will burn to indicate bootloader mode. 4. Release WRITE button 5. Send firmware file with SysEx tool. (for example MIDI-OX) 6. During the upload the MANUAL led will flash. 7. When the upload is completed the DT-800 will reboot. DT-800 MANUAL...
-
Page 7: Panel Description
28. Dynamics selector 44. Chorus Mode Selector 13. Tune 29. Envelope Mode Selector 45. Write Button 14. Fine Tune 30. Dynamics selector 46. Manual Button 15. LFO Modulation 31. LFO Waveform Selector 16. Envelope modulation 32. LFO Delay Time DT-800 MANUAL... -
Page 8: Specifications
Dynamics Selector Write Button Envelope Mode Rear Panel jack DIN6P HPF (High-pass Filter) Cutoff Frequency Dimensions DT-800 240(W) 210(D) x 45(H)mm Resonance Weight DT-800 0.85 kg LFO Modulation Dimensions Box 330(W) 220(D) x 70(H)mm Envelope Modulation Total weight box 1.088 kg... - Page 9 DTRONICS DT-800 MANUAL...
