Toshiba TLP-680U Quick Reference Card

3LCD DATA PROJECTOR
QUICK REFERENCE CARD

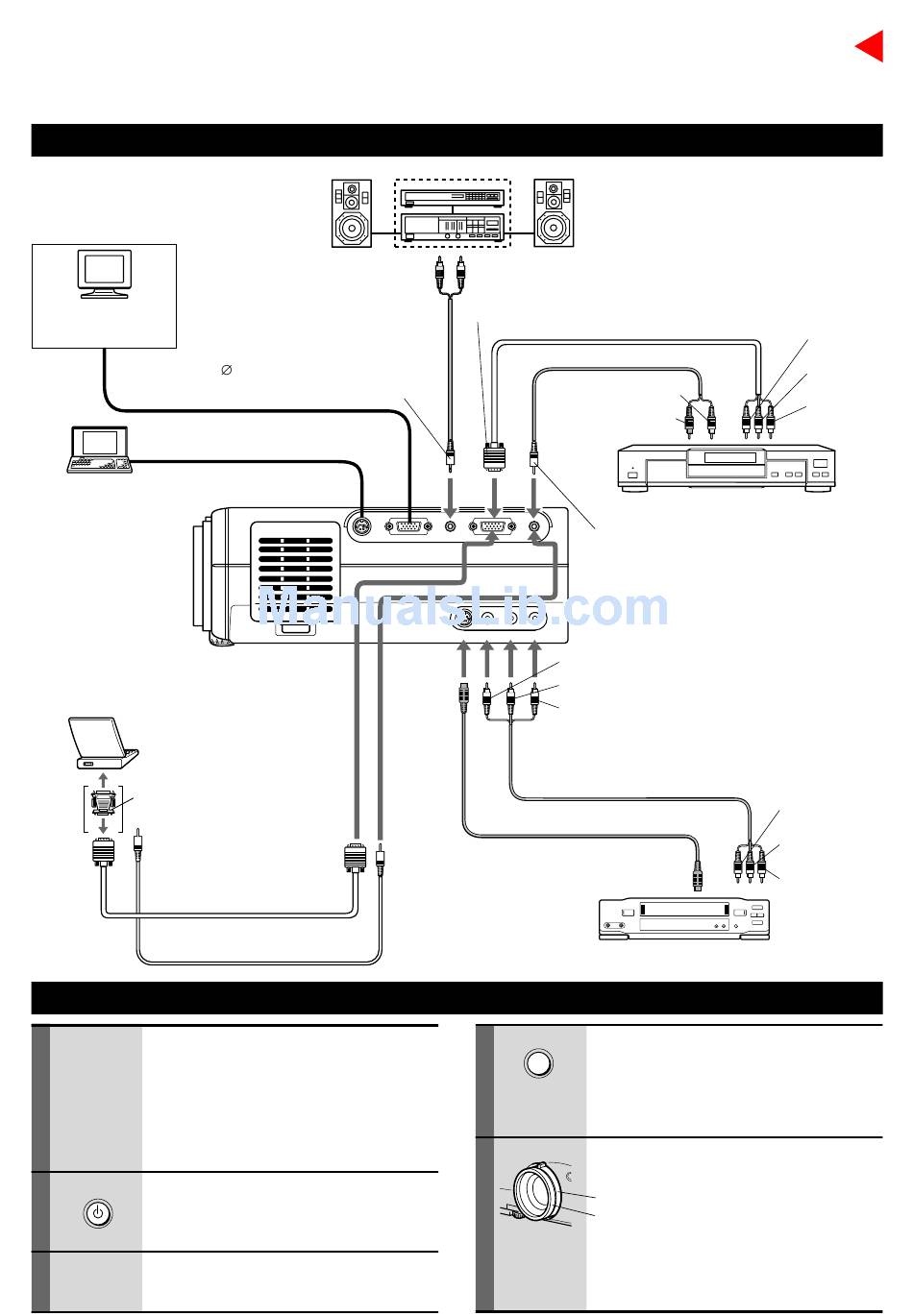

Connection with External Equipment
You can connect an
extra monitor to view
the picture.
You can connect a computer
to control the projector.
Computer
Adapter for Macintosh
computers only (supplied)
To
To
monitor
audio
port
output port
RGB cable (supplied)
PC audio cable (supplied)
Projecting a Picture
• Connect external equipment
1
such as a computer or
video tape player. (See
above)
• Connect the power cord to
the projector.
2
Press ON/STANDBY.
ON/STANDBY
Both the ON and LAMP indications light up
in green.
3
Turn on the connected equipment
and put it in playback mode.
"Camera" function is equipped only with the model which has a document imaging camera model.
Audio cable
(not supplied)
To MONITOR OUTPUT (AUDIO)
3.5mm STEREO mini plug
(Audio output level is constant.)
RS-232C
CONTROL
To VIDEO
(S-VIDEO)
To RGB
To RGB
INPUT
INPUT (RGB)
(AUDIO)
To audio input
To RGB INPUT (RGB)
Audio cable (not supplied)
To audio output R
(red)
To audio output L
(white)
RGB AUDIO RGB AUDIO
MONITOR OUTPUT RGB INPUT
VIDEO INPUT
S-VIDEO VIDEO L - AUDIO -R
To VIDEO INPUT (VIDEO) (yellow)
To VIDEO INPUT (AUDIO L) (white)
To VIDEO INPUT (AUDIO R) (red)
INPUT
Audio/Video cable (supplied)
S-VIDEO cable (not supplied)
To S-VIDEO output
4
INPUT
5
Connect a stereo system
for dynamic sound.
(not supplied)
Video player with color difference output
To RGB
INPUT
(AUDIO)
Video tape player
Press INPUT to select the
input source.
RGB: RGB input picture
Video: VIDEO input picture
Camera: Camera input picture
Adjust the picture size and
focus.
Zoom ring: Adjust the picture size.
Focus ring: Focus the picture.
To C R (P R )
output
To C B (P B )
output
To Y output
To Video output
(yellow)
To Audio output
(white)
To Audio output
(red)
