September 2022© Mahindra 1626 ROPS Cab Operation Manual
Mahindra 1626 ROPS Cab

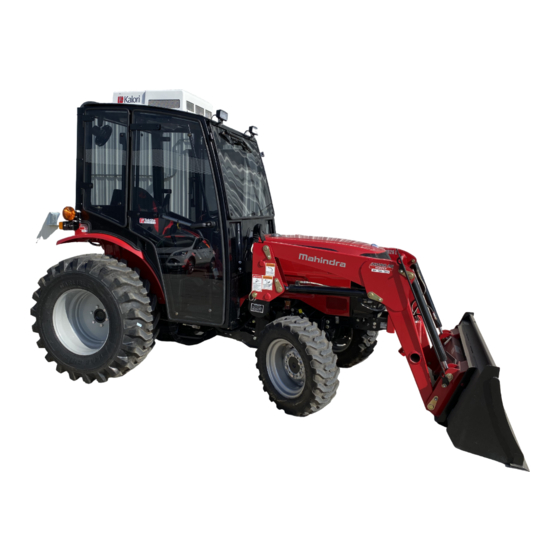

Please note: Cab is shown with optional accessories.
Mahindra 1626 ROPS Cab
This ROPS cab is designed and built to fit the Mahindra 1626 tractor.
Designed and Built by:
Tektite Manufacturing Inc:
427 Buffalo Street
P.O. Box 639
Winkler, MB
R6W 4A8
Canada
PH: 204-331-3463
Fax: 204-331-4159
@tektite.ca
www.tektite.ca
One year standard product warranty provided by Tektite.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1626 ROPS Cab and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mahindra 1626 ROPS Cab

Summary of Contents for Mahindra 1626 ROPS Cab

  • Page 1 September 2022© Mahindra 1626 ROPS Cab Operation Manual Mahindra 1626 ROPS Cab Please note: Cab is shown with optional accessories. Mahindra 1626 ROPS Cab This ROPS cab is designed and built to fit the Mahindra 1626 tractor. Designed and Built by: Tektite Manufacturing Inc: 427 Buffalo Street P.O.
  • Page 2 September 2022© Mahindra 1626 ROPS Cab Operation Manual DO NOT PROCEED FURTHER UNTIL YOU HAVE READ THE INFORMATION BELOW 1) Always wear personal protective equipment 2) A minimum of two people is necessary to safely install the cab 3) This ROPS cab is heavy. A lift assist device such as an overhead hoist or high lift forklift is required.
  • Page 3 September 2022© Mahindra 1626 ROPS Cab Installation Manual Tektite’s ROPS products are designed to provide safe and dependable service during operation when they are properly maintained according to the instructions. Please read this installation manual carefully before installing and using this ROPS product.
  • Page 4 September 2022© Mahindra 1626 ROPS Cab Installation Manual Parts List Standard Cab: Description Bolt, Hex, M8 x 16, YD Connector, Butt Wire Wrap, 1” Long Wire Harness Extension, Hazard Lights 1 set Wire Loom, 18” Long, Small Left Under-seat Shield...
  • Page 5 September 2022© Mahindra 1626 ROPS Cab Installation Manual Alternator Extension Harness Wires 1 set Connector, Bullet, Male V-Belt, A33, Alternator V-Belt, AX42, Main Drive Compressor Tensioner Bracket Alternator Bracket Weldment Compressor Bracket Weldment Page | 4...
  • Page 6 September 2022© Mahindra 1626 ROPS Cab Installation Manual Page | 5...
  • Page 7 September 2022© Mahindra 1626 ROPS Cab Installation Manual Standard Cab Installation Instructions: Park the tractor in a well-ventilated area. Lower front-end loader and remove quick-attach arms to make installation easier. Disconnect the battery. The hydraulics control lever will need to be bent to provide clearance to the cab.
  • Page 8 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Take the right rear bracket and slide into opening where the 2-post ROPS was located on the right rear side of the tractor. Fasten into place with the factory hardware. Note orientation of the right rear bracket.
  • Page 9 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Remove the three bolts, top two and one rear, on the right loader sub-frame attachment point to the tractor. Position the right front bracket onto the outside of the bracket and then loosely fasten into place with the factory hardware.
  • Page 10 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Position the left floormat around the left rear bracket, on top of the fender. Page | 9...
  • Page 11 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Position the right floormat around the right rear bracket, on top of the fender. . Take the left under-seat shield and position onto seat platform. Use two M8 x 16 hex bolts to fasten shield into place.
  • Page 12 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Take the right under seat shield and position onto seat platform. Use two M8 x 16 hex bolts to fasten shield into place. Ensure the bristles cover the opening as best as possible.
  • Page 13 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Un-bolt the hydraulics cover to provide easier installation of cab onto tractor. Pull back rubber boot. Page | 12...
  • Page 14 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Return to the cab to install lift brackets next. To remove the gas shock on the left cab door, slide a flat screwdriver underneath the small clip on the end cap that must be pulled UP order to pop the shock off the ball stud.
  • Page 15 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Take one of the ½” x 4 ½” hex bolts and fasten to the weld nut located at the top of the door opening on the left side of the cab. Use the other bolt for the right door weld nut tab.
  • Page 16 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Take the plastic shroud, make 1” at bottom, and 3” along vertical side. Cut out plastic to provide clearance for the rubber seal. . Re-install the plastic shroud that covers the hydraulic control lever.
  • Page 17 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Take the short wide bristle and position onto the right shield underneath the joystick. Mark the holes on bristle, and drill out ¼” holes. . Slide bristle onto the shield and retain with fir tree fasteners.
  • Page 18 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Repeat for the right side step. For cabs equipped with heater/AC option, proceed with the following steps now. . Un-bolt and remove the alternator tensioner bracket to relieve belt tension. Slip belt off alternator.
  • Page 19 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Drain the engine coolant. . Take the compressor mount bracket and slide between the ears of the compressor as shown below. Use provided 3/8” x 4” hex bolt and flange nut. Note location of removed ears with respect to the bracket location.
  • Page 20 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Remove the upper radiator hose for now. . Remove the engine bypass hose. Page | 19...
  • Page 21 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Take the heater bypass assembly and install into both ports where the bypass was located. Page | 20...
  • Page 22 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Remove the three fasteners at the front of the thermostat housing along with the top fastener on the right side (driver perspective). Page | 21...
  • Page 23 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Place the alternator mount bracket into place and fasten with three of the original four bolts (not tensioner bracket bolt). Page | 22...
  • Page 24 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Take the compressor tensioner bracket provided and loosely fasten into place in factory location with provided M8 x 70 bolt. Tighten the remaining bracket fasteners, but the tensioner bolt just yet.
  • Page 25 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Take the alternator and fasten to the mounting bracket at the bottom with the provided 3/8” x 2” flange bolt. Page | 24...
  • Page 26 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Remove the main drive belt from the tractor. . Use the provided AX42 V-belt and slip onto main drive pulley, fan pulley, and rear compressor pulley. . Tighten the compressor bracket, then apply tension and tighten the tensioner bracket on the compressor.
  • Page 27 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Re-connect the alternator harness with extended harness. . Re-install the upper radiator hose. . Route the heater hoses along the right side of the tractor from the rear of the cab to the engine bay.
  • Page 28 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Route hoses to the heater bypass installed earlier. Cut hose and connect both ends to the heater bypass with the provided hose clamps. . Route the AC hoses, AC power harness, and clutch wire from the rear of the cab, underneath the tractor to the left side of the engine bay.
  • Page 29 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Install the large #10 hose onto the compressor. Ensure it is pointing down and away from the muffler. . Install the #8 hose onto the compressor, ensure it is pointing down and away from the exhaust.
  • Page 30 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Connect the main red power wire of the AC harness to the positive terminal on the battery. Connect the black wire of the AC harness to the negative terminal on the battery.
  • Page 31 September 2022© Mahindra 1626 ROPS Cab Installation Manual . Take the right taillight assembly and bolt to the rear right cab mount plate. Use factory hardware. . Taillight harness for each light needs to be extended. Use provided green and black wires. Cut and solder the extension wires into place.
  • Page 32 September 2022© Mahindra 1626 ROPS Cab Installation Manual . To ensure a better seal of all weather stripping and floor mat pieces, it is recommended that you use a black silicone seal to seal the cab parts to the tractor.
  • Page 33 September 2022© Mahindra 1626 ROPS Cab Operation Manual Mahindra 1626 ROPS Cab Please note: Cab is shown with optional accessories. Mahindra 1626 ROPS Cab This ROPS cab is designed and built to fit the Mahindra 1626 tractor. Designed and Built by: Tektite Manufacturing Inc: 427 Buffalo Street P.O.
  • Page 34 September 2022© Mahindra 1626 ROPS Cab Operator Manual Tektite Manufacturing Incorporated thanks you for purchasing a Mahindra 1626 ROPS cab! Tektite has worked very hard to design and build this ROPS product and we hope that it provides you with many years of ROPS protection.
  • Page 35 September 2022© Mahindra 1626 ROPS Cab Operator Manual Limited Warranty Tektite Manufacturing Inc. (Tektite) warrants to the original purchaser (the “Claimant”), that Tektite products will be free from defective materials or workmanship, under normal use and service, for a period of (1) full year (or 1500 hours, whichever is less) from the original invoice date.

  • Page 36: Safety Precautions

    September 2022© Mahindra 1626 ROPS Cab Operator Manual Safety Precautions Safety First Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to assemble or use the features that are on this cab/ROPS.
  • Page 37 September 2022© Mahindra 1626 ROPS Cab Operator Manual General Safety 1. Never let an unqualified or untrained driver operate the tractor. 2. Keep a fire extinguisher, with ABC rating securely fastened in the ROPS. Maintain it and be familiar with its use.
  • Page 38 September 2022© Mahindra 1626 ROPS Cab Operator Manual Safe Operation on Rough Terrain 1. Drive the tractor slowly on hillsides and curves to eliminate the danger of tipping. Avoid slopes which are too steep for safe operation. Avoid sharp uphill turns.
  • Page 39 September 2022© Mahindra 1626 ROPS Cab Operator Manual 9. Use your turn signals, checking for traffic well in advance of turning. If the tractor is not equipped with turn signals and law requires them, install them prior to operating on or near public roads.
  • Page 40 September 2022© Mahindra 1626 ROPS Cab Operator Manual Operating Instructions Important The following section locates, identifies and briefly describes the functions of all cab controls. All operators should familiarize themselves with control location and function prior to operating the tractor. Failure to do so may result in unsafe operation of the tractor and possible injury or death to operators and bystanders.
  • Page 41 September 2022© Mahindra 1626 ROPS Cab Operator Manual Note: indicator light activates when work light is on. 5. Washer Momentary Switch (Front and Rear optional) Low position: On Mid position: Off High Position: On 6. Beacon Rocker Switch (optional) Low position: Off High position: On Note: indicator light activates when work lights are on.
  • Page 42 September 2022© Mahindra 1626 ROPS Cab Operator Manual Service Parts Breakdowns: Following are parts breakdowns for components that may require service parts replacement during the life of the ROPS. If you require replacement parts, please contact the dealer that you purchased the ROPS from and indicate which parts you require.
