Toshiba Tecra R10-S4422 Specifications

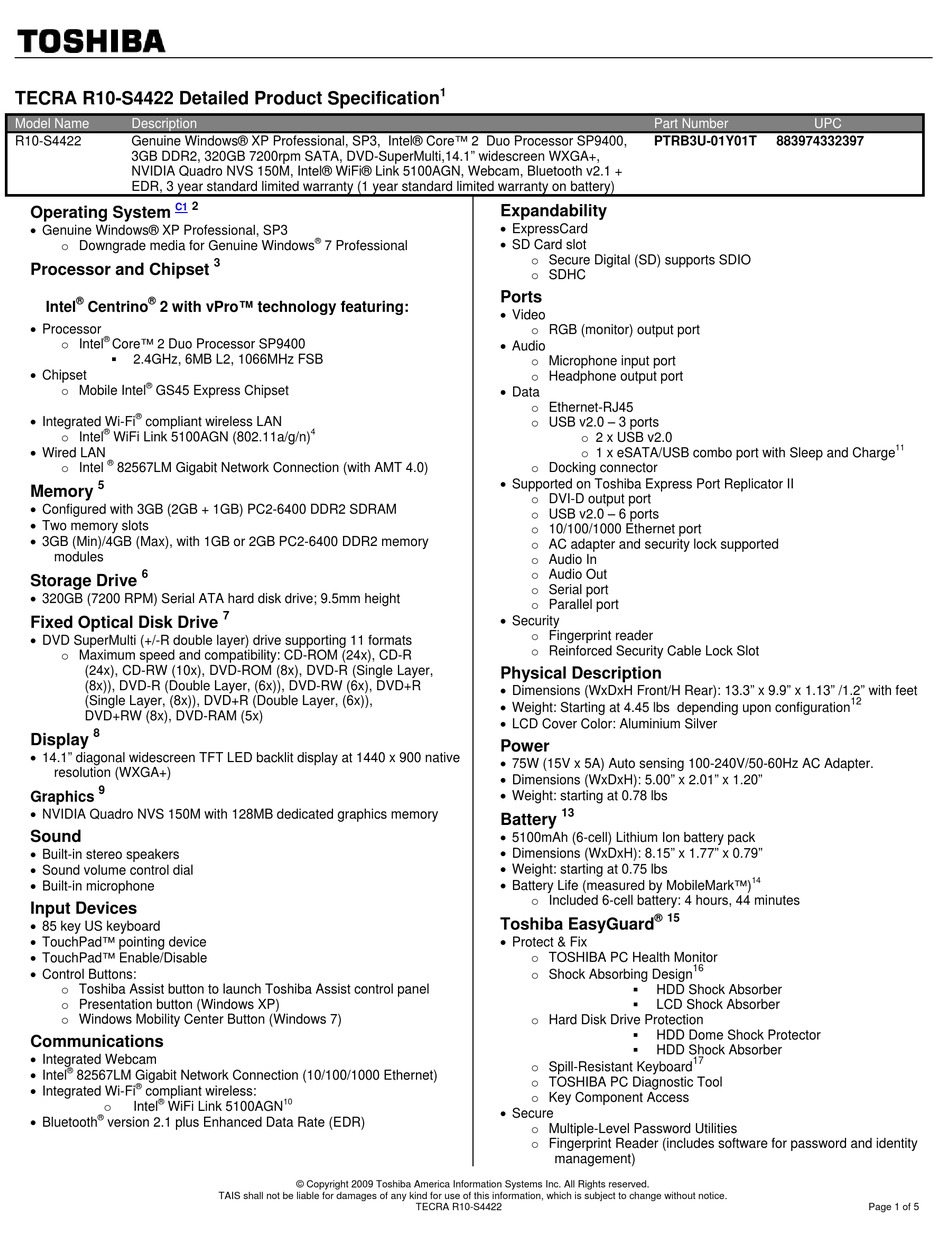

TECRA R10-S4422 Detailed Product Specification
Model Name Description
R10-S4422 Genuine Windows® XP Professional, SP3, Intel® Core™ 2 Duo Processor SP9400,
3GB DDR2, 320GB 7200rpm SATA, DVD-SuperMulti,14.1" widescreen WXGA+,
NVIDIA Quadro NVS 150M, Intel® WiFi® Link 5100AGN, Webcam, Bluetooth v2.1 +
EDR, 3 year standard limited warranty (1 year standard limited warranty on battery)
2
C1
Operating System
 Genuine Windows® XP Professional, SP3
o Downgrade media for Genuine Windows
Processor and Chipset
® ®
Intel Centrino 2 with vPro™ technology featuring:
 Processor
®
o Intel Core™ 2 Duo Processor SP9400

2.4GHz, 6MB L2, 1066MHz FSB
 Chipset
®
o Mobile Intel GS45 Express Chipset
 Integrated Wi-Fi ®
compliant wireless LAN
®
o Intel WiFi Link 5100AGN (802.11a/g/n)
 Wired LAN
®
o Intel 82567LM Gigabit Network Connection (with AMT 4.0)
5
Memory
 Configured with 3GB (2GB + 1GB) PC2-6400 DDR2 SDRAM
 Two memory slots
 3GB (Min)/4GB (Max), with 1GB or 2GB PC2-6400 DDR2 memory
modules
6
Storage Drive
 320GB (7200 RPM) Serial ATA hard disk drive; 9.5mm height
Fixed Optical Disk Drive
 DVD SuperMulti (+/-R double layer) drive supporting 11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R
(24x), CD-RW (10x), DVD-ROM (8x), DVD-R (Single Layer,
(8x)), DVD-R (Double Layer, (6x)), DVD-RW (6x), DVD+R
(Single Layer, (8x)), DVD+R (Double Layer, (6x)),
DVD+RW (8x), DVD-RAM (5x)
8
Display
 14.1" diagonal widescreen TFT LED backlit display at 1440 x 900 native
resolution (WXGA+)
9
Graphics
 NVIDIA Quadro NVS 150M with 128MB dedicated graphics memory
Sound
 Built-in stereo speakers
 Sound volume control dial
 Built-in microphone
Input Devices
 85 key US keyboard
 TouchPad™ pointing device
 TouchPad™ Enable/Disable
 Control Buttons:
o Toshiba Assist button to launch Toshiba Assist control panel
o Presentation button (Windows XP)
o Windows Mobility Center Button (Windows 7)
Communications
 Integrated Webcam
 Intel
®
82567LM Gigabit Network Connection (10/100/1000 Ethernet)
 Integrated Wi-Fi
®
compliant wireless:
®
Intel WiFi Link 5100AGN
o
 Bluetooth ®
version 2.1 plus Enhanced Data Rate (EDR)
®
7 Professional
3
4
7
10
© Copyright 2009 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
1
Expandability
 ExpressCard
 SD Card slot
o Secure Digital (SD) supports SDIO
o SDHC
Ports
 Video
o RGB (monitor) output port
 Audio
o Microphone input port
o Headphone output port
 Data
o Ethernet-RJ45
o USB v2.0 – 3 ports
o 2 x USB v2.0
o 1 x eSATA/USB combo port with Sleep and Charge
o Docking connector
 Supported on Toshiba Express Port Replicator II
o DVI-D output port
o USB v2.0 – 6 ports
o 10/100/1000 Ethernet port
o AC adapter and security lock supported
o Audio In
o Audio Out
o Serial port
o Parallel port
 Security
o Fingerprint reader
o Reinforced Security Cable Lock Slot
Physical Description
 Dimensions (WxDxH Front/H Rear): 13.3" x 9.9" x 1.13" /1.2" with feet
 Weight: Starting at 4.45 lbs depending upon configuration
 LCD Cover Color: Aluminium Silver
Power
 75W (15V x 5A) Auto sensing 100-240V/50-60Hz AC Adapter.
 Dimensions (WxDxH): 5.00" x 2.01" x 1.20"
 Weight: starting at 0.78 lbs
13
Battery
 5100mAh (6-cell) Lithium Ion battery pack
 Dimensions (WxDxH): 8.15" x 1.77" x 0.79"
 Weight: starting at 0.75 lbs
 Battery Life (measured by MobileMark™)
o Included 6-cell battery: 4 hours, 44 minutes
Toshiba EasyGuard
 Protect & Fix
o TOSHIBA PC Health Monitor
o Shock Absorbing Design
o Hard Disk Drive Protection
o Spill-Resistant Keyboard
o TOSHIBA PC Diagnostic Tool
o Key Component Access
 Secure
o Multiple-Level Password Utilities
o Fingerprint Reader (includes software for password and identity
management)
TECRA R10-S4422
Part Number
PTRB3U-01Y01T 883974332397
14
15
®
16

HDD Shock Absorber

LCD Shock Absorber

HDD Dome Shock Protector

HDD Shock Absorber
17
UPC
11
12
Page 1 of 5
