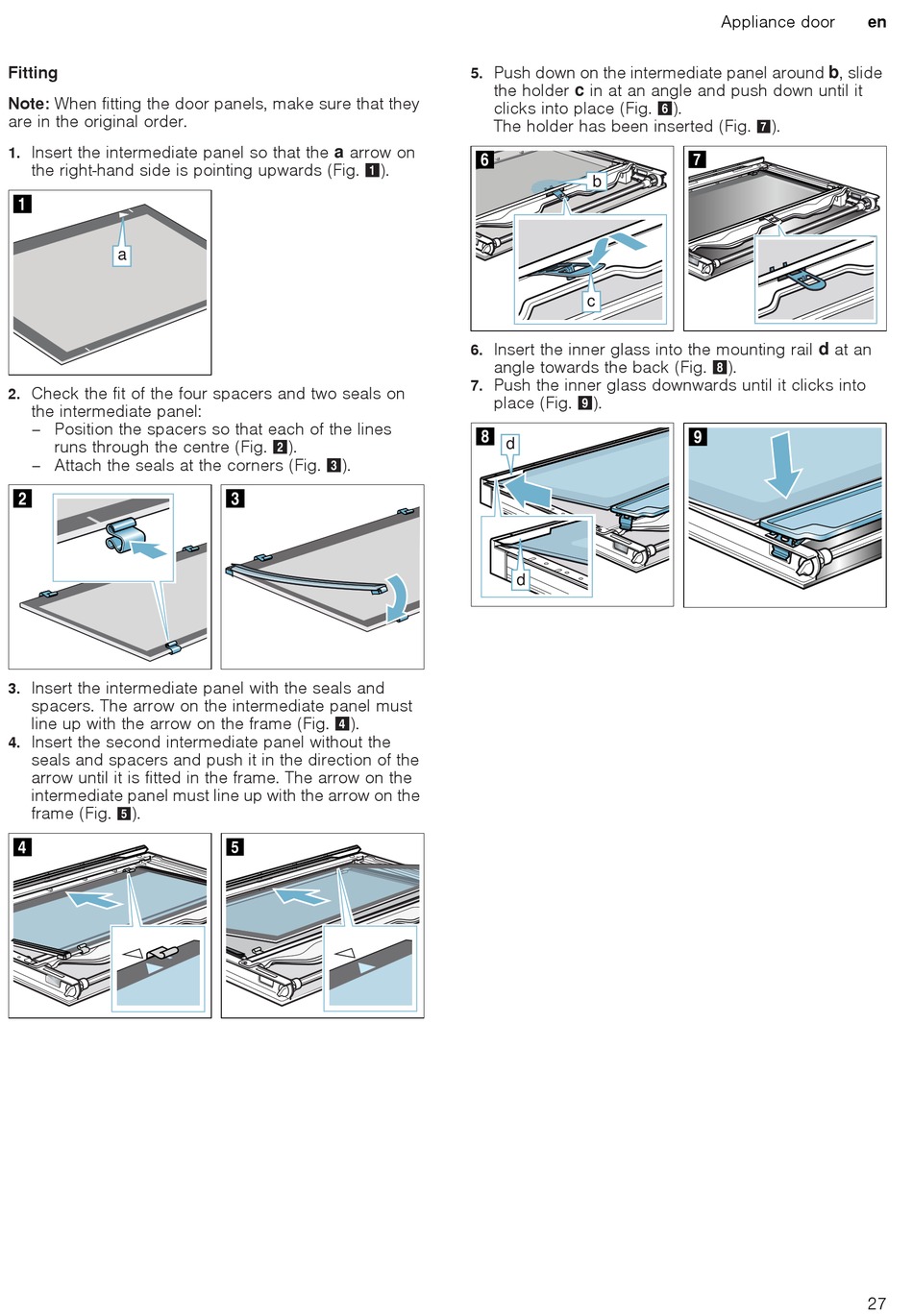

Fitting
Note: When fitting the door panels, make sure that they
are in the original order.
Insert the intermediate panel so that the ‚ arrow on
1.
the right-hand side is pointing upwards (Fig.
Check the fit of the four spacers and two seals on
2.
the intermediate panel:
– Position the spacers so that each of the lines
runs through the centre (Fig.
– Attach the seals at the corners (Fig.
Insert the intermediate panel with the seals and
3.
spacers. The arrow on the intermediate panel must
line up with the arrow on the frame (Fig.
Insert the second intermediate panel without the
4.
seals and spacers and push it in the direction of the
arrow until it is fitted in the frame. The arrow on the
intermediate panel must line up with the arrow on the
frame (Fig. % ).
! ).
"
).
# ).
$ ).
Push down on the intermediate panel around ƒ, slide
5.
the holder „ in at an angle and push down until it
clicks into place (Fig.
The holder has been inserted (Fig.
Insert the inner glass into the mounting rail ... at an
6.
angle towards the back (Fig.
Push the inner glass downwards until it clicks into
7.
)
place (Fig. ).
Appliance door
&
).
'
).
( ).
