Appliance door
Open the appliance door slightly until you hear a
4.
quiet click. Close the appliance door.
:
Warning
Risk of injury if the door locks are not closed!
The appliance door may become detached. You
may be injured and the appliance door damaged.
After refitting the door, always close the left- and
right-hand door locks.
Close the left- and right-hand door locks (fig.
5.
To do this, hold the screwdriver horizontally and use
it to push the door lock on each side of the door all
&
the way down (fig.

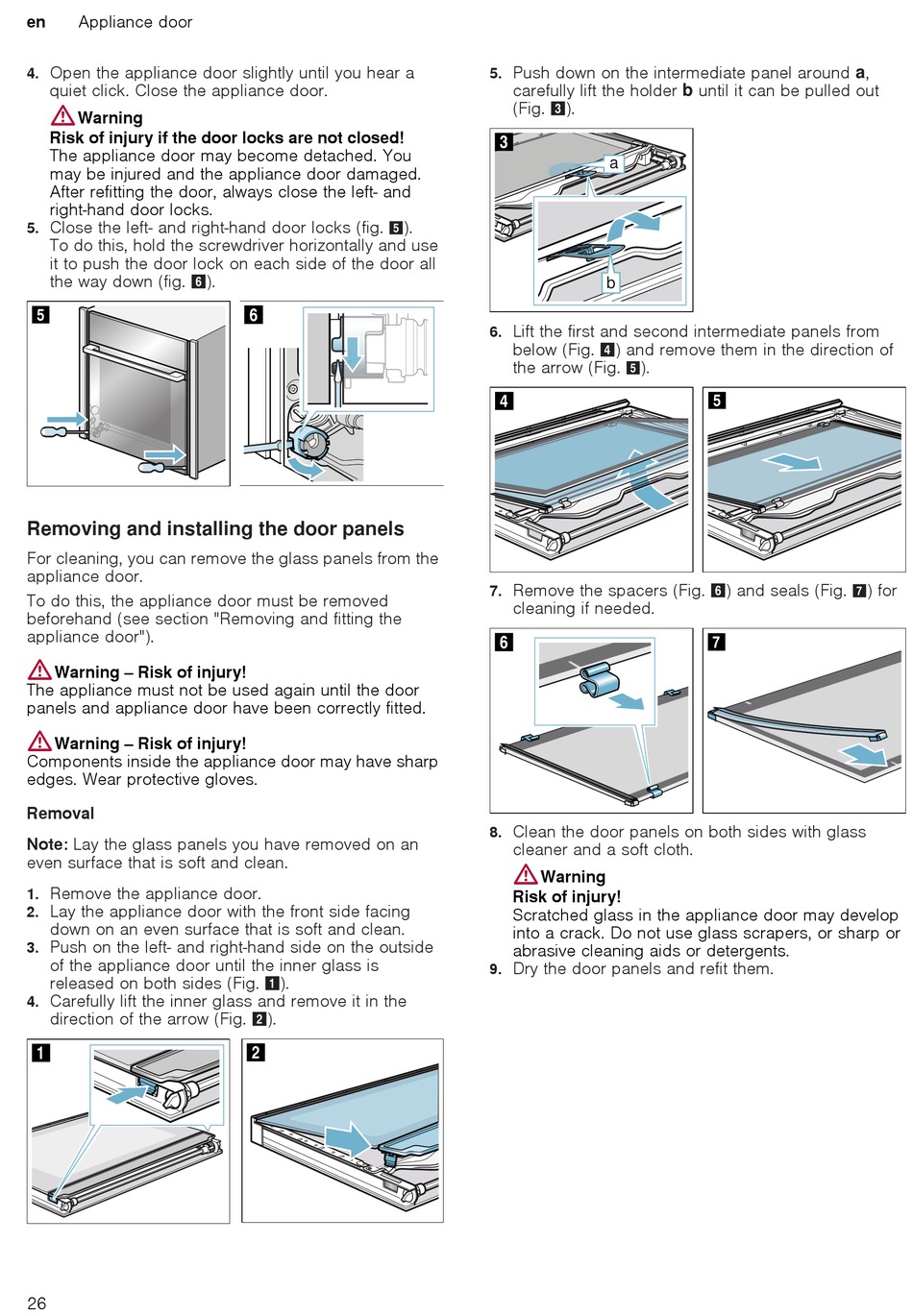

Removing and installing the door panels

For cleaning, you can remove the glass panels from the
appliance door.
To do this, the appliance door must be removed
beforehand (see section "Removing and fitting the
appliance door").
:
Warning – Risk of injury!
The appliance must not be used again until the door
panels and appliance door have been correctly fitted.
:
Warning – Risk of injury!
Components inside the appliance door may have sharp
edges. Wear protective gloves.
Removal
Note: Lay the glass panels you have removed on an
even surface that is soft and clean.
Remove the appliance door.
1.
Lay the appliance door with the front side facing
2.
down on an even surface that is soft and clean.
Push on the left- and right-hand side on the outside
3.
of the appliance door until the inner glass is
released on both sides (Fig.
Carefully lift the inner glass and remove it in the
4.
direction of the arrow (Fig.
26
).
! ).
"
).
Push down on the intermediate panel around ‚,
5.
carefully lift the holder ƒ until it can be pulled out
#
(Fig.
%
).
Lift the first and second intermediate panels from
6.
below (Fig.
the arrow (Fig.
Remove the spacers (Fig.
7.
cleaning if needed.
Clean the door panels on both sides with glass
8.
cleaner and a soft cloth.
:
Warning
Risk of injury!
Scratched glass in the appliance door may develop
into a crack. Do not use glass scrapers, or sharp or
abrasive cleaning aids or detergents.
Dry the door panels and refit them.
9.
).
$
) and remove them in the direction of
% ).
&
) and seals (Fig.
'
) for
