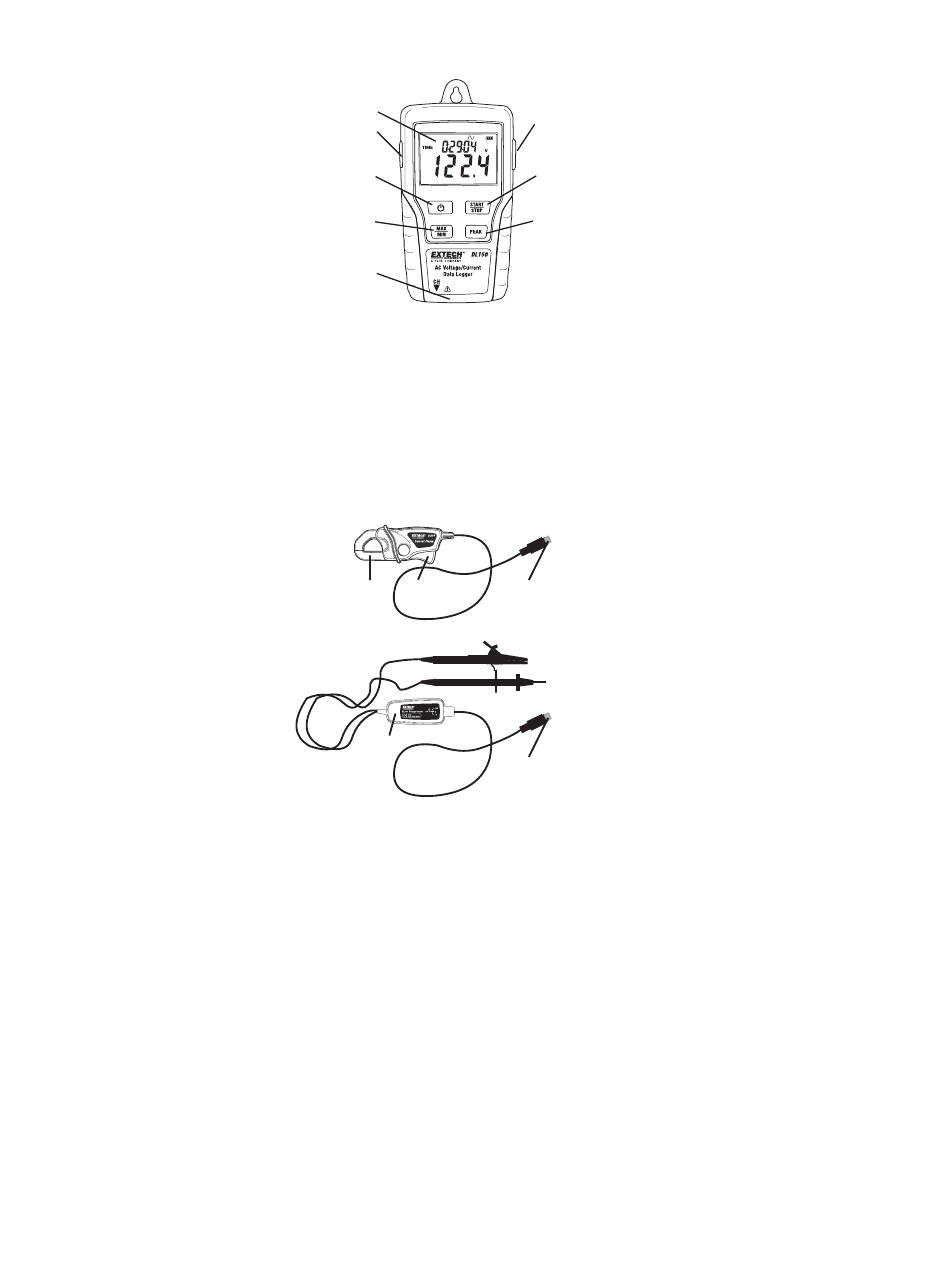

2. AC adaptor Jack
3. ON/OFF Button
4. MAX/MIN : Press the button one time to
display the MAX (maximum) reading . Press
again to display the MIN (minimum) reading.
A third press will exit MAX/MIN mode. The
meter will automatically exit MAX/MIN mode
in 10 seconds if no button is pressed.
5. CH Input Jack: Insert the current or voltage
sensor to this COM to measure and record
the data.
6. PEAK HOLD: In the non-PEAK
measurement mode, press the PEAK HOLD button to display the average
Peak value of the present value. Press the button again to exit PEAK
display. The meter will automatically exit in 10s if no button is pressed.
7. START/STOP: Press the START/STOP button for one time to pause data.
Press again to resume. After setting the record mode, press this button for
more than 4 seconds and then release it after REC is shown on the LCD.
The meter will measure and record data according to the software setup.
8. USB Port
9. AC Current Clamp Jaw: Clamp the jaws
around a single conductor for AC current
measurements to 200A
10. Jaw Opening Trigger:
11. CH Plug:
12. AC Voltage Probes or Alligator clips
13. Voltage module
14. CH Plug
1
2
3
4
5
9
10
13
4
DL150 V2.1 04/10
8
7
6
11
12
14
