Description and Button Functions

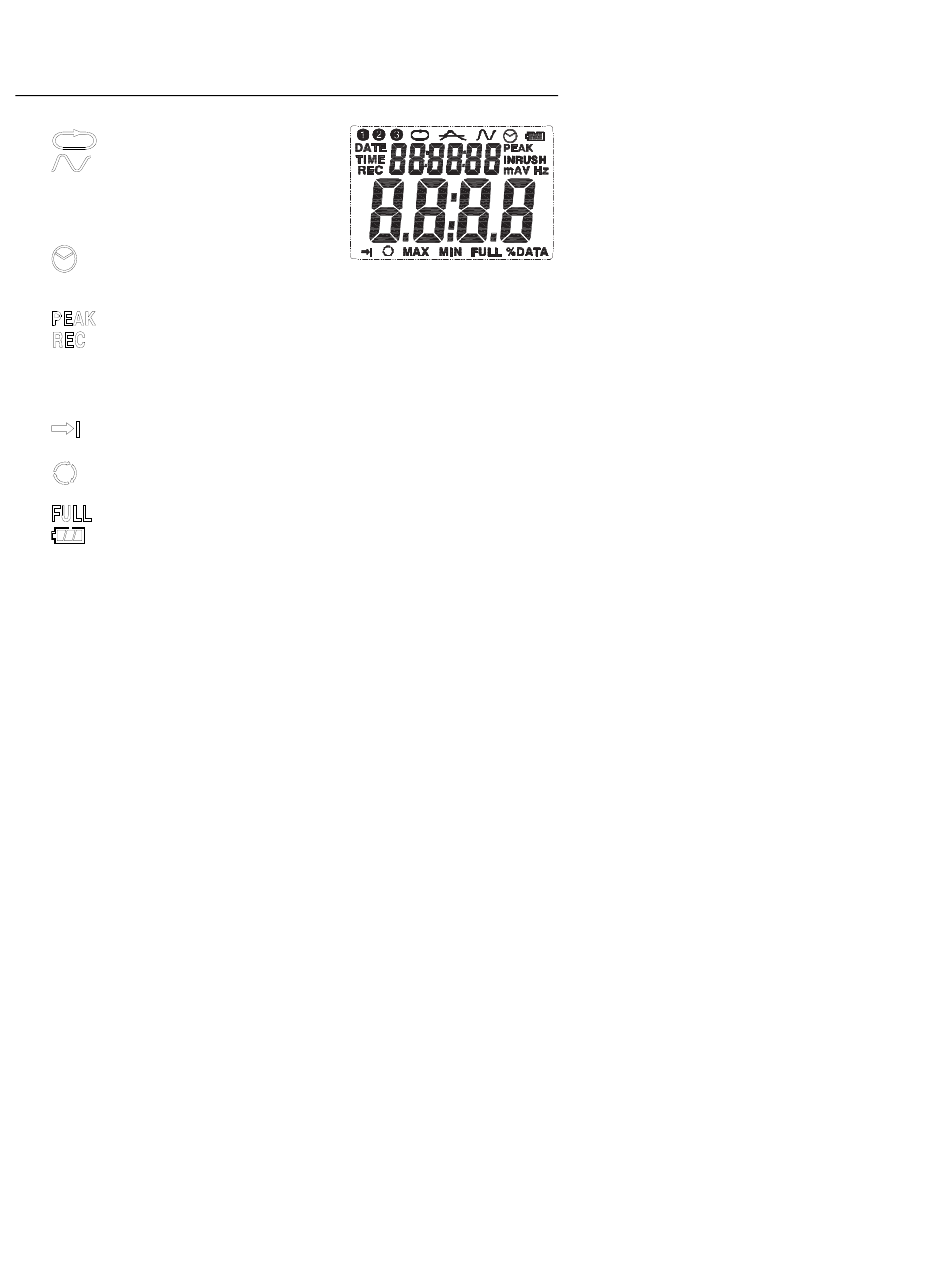

1. LCD Description
:
Normal record mode is selected
:
Capture record mode is
selected. Records the sine
wave when the measure value
exceeds the Capture Detection
set level.
:
Auto power off setting, the
meter will automatically shuts off after 5mins without any button
presses.
:
Average peak measure and record mode selected (about 195ms)
:
Recording status. After the record mode is set up by the software,
press the START/STOP button for more than 4 seconds to begin
recording. This icon will be displayed and indicates the meter is
recording data. Press the same button again for more than 4
seconds to stop recording.
:
Record until full is selected. When the memory is full, the
datalogger will stop recording.
:
Continuous recording is selected. When the memory is full, the
data will overwrite the oldest data.
:
Memory full and recording has stopped.
:
Battery sign, when display completely the battery power is full.
When there is only a frame icon displayed, the battery is
exhausted and should be replaced with a new one.
3
DL150 V2.1 04/10
