User's Guide
True RMS AC
Voltage/Current Datalogger
Model DL150

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXTECH DL150 and is the answer not in the manual?

Questions and answers

Related Manuals for FLIR EXTECH DL150

Summary of Contents for FLIR EXTECH DL150

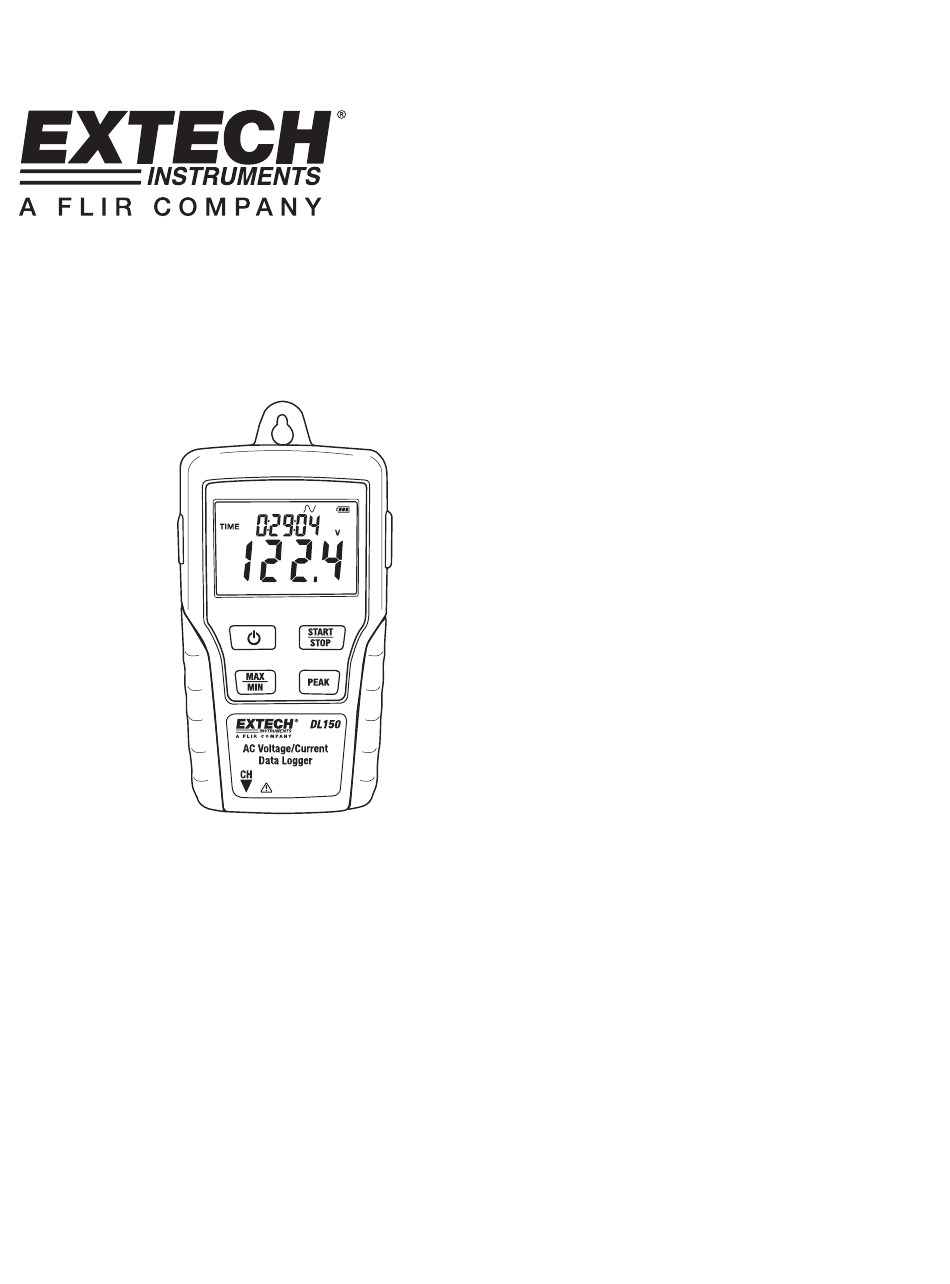

  • Page 1 User's Guide True RMS AC Voltage/Current Datalogger Model DL150...
  • Page 2 Introduction Congratulations on your purchase of this Voltage or Current datalogger. With this meter, you can monitor and log data over long periods of time and then easily transfer the data to a pc for viewing and evaluation. The LCD display provides real time data, Max/Min data and time information.
  • Page 3 Description and Button Functions 1. LCD Description Normal record mode is selected Capture record mode is selected. Records the sine wave when the measure value exceeds the Capture Detection set level. Auto power off setting, the meter will automatically shuts off after 5mins without any button presses.
  • Page 4 2. AC adaptor Jack 3. ON/OFF Button 4. MAX/MIN : Press the button one time to display the MAX (maximum) reading . Press again to display the MIN (minimum) reading. A third press will exit MAX/MIN mode. The meter will automatically exit MAX/MIN mode in 10 seconds if no button is pressed.

  • Page 5: Operation

    Operation Install 4 fresh AAA batteries or connect the AC adaptor. Set-up the datalogger using the software provided. Connect the voltage test leads or the current probe to the AC source to be measured. Press and Hold the START/STOP button for four seconds to start recording.

  • Page 6: Warranty

    Warranty EXTECH INSTRUMENTS CORPORATION (A FLIR COMPANY) warrants this instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext.

  • Page 7: Specifications

    Current 10A to 200.0A ±2.0%±1A 50/60Hz Peak Measurement 8.0 to 850.0V ±5.0% Copyright © 2009 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. DL150 V2.1 04/10...
