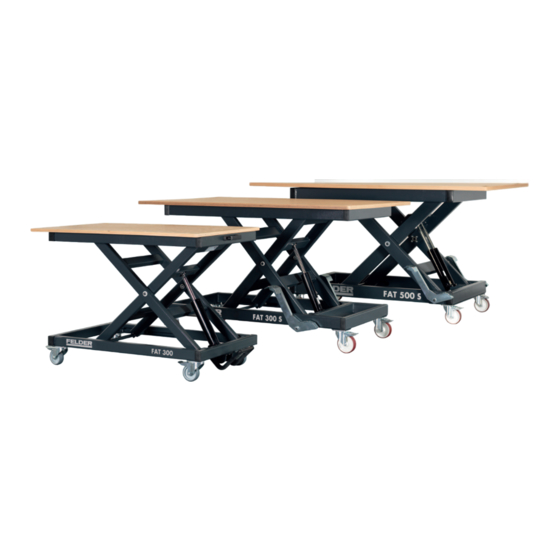

Height adjustable FELDER working table
FAT 300 / FAT 300S / FAT 500S
Keep this manual handy and in good condition for continual reference!
User manual
Translation
Download your local language
CZ
DA
DE EN
ES
HU
IT
NL
PL
RO
http://fg.am/ba-fat300
Dok.ID: 420240-903_02 • Englisch • 2017-10-18
FI
FR
RU
SV
Advertisement
Table of Contents
Related Manuals for Felder FAT 300S
Summary of Contents for Felder FAT 300S
- Page 1 V I D E O http://fg.am/ba-fat300 http://fg.am/fat300install User manual Translation Height adjustable FELDER working table FAT 300 / FAT 300S / FAT 500S Keep this manual handy and in good condition for continual reference! Dok.ID: 420240-903_02 • Englisch • 2017-10-18...
- Page 2 Height adjustable FELDER working table FAT 300 / FAT 300S / FAT 500S A-6060 HALL in Tirol, KR-Felder-Straße 1, Austria, Tel. +43 (0) 5223 58500, Fax +43 (0) 5223 56130, info@felder.at www.felder.at TYPE : FAT 300 / FAT 300S / FAT 500S NR.:...
-
Page 3: Table Of Contents
Height adjustable FELDER working table FAT 300 / FAT 300S / FAT 500S Content Content 1 General ......................4 1.1 Symbol legend .......................4 1.2 Information about the manual ..................4 1.3 Copyright ........................4 1.4 Liability and warranty .....................5 1.5 Warranty notice ......................5 1.6 Spare parts ........................5... -
Page 4: General
Height adjustable FELDER working table FAT 300 / FAT 300S / FAT 500S General 1 General 1.1 Symbol legend Important technical safety instructions in this manual are In all these particular cases, special attention must be marked with symbols. paid in order to avoid accidents, injury to persons or These instructions for work safety must be followed. -
Page 5: Liability And Warranty
Height adjustable FELDER working table FAT 300 / FAT 300S / FAT 500S General 1.4 Liability and warranty The contents and instructions in this manual have been scale. The actual delivery contents are dependent on compiled in consideration of current regulations and... -
Page 6: Safety
Height adjustable FELDER working table FAT 300 / FAT 300S / FAT 500S Safety 2 Safety At the time of its development and production, the the machine. machine was built in accordance with prevailing To further minimise risks, the other chapters of this... -
Page 7: Responsibilities Of The Operator
Height adjustable FELDER working table FAT 300 / FAT 300S / FAT 500S Safety 2.4 Responsibilities of the operator This manual must be kept in the immediate vicinity of accident prevention regulations, general safety regula- the machine and be accessible at all times to all persons tions as well as current environmental stipulations that working on or with the machine. -
Page 8: Personal Protective Equipment
Height adjustable FELDER working table FAT 300 / FAT 300S / FAT 500S Safety 2.7 Personal protective equipment When working on or with the machine, the following must be strictly observed: Persons with long hair who are not wearing a hairnet are not permitted to work on or with the machine! -
Page 9: Technical Specifications
Height adjustable FELDER working table FAT 300 / FAT 300S / FAT 500S Technical specifications 3 Technical specifications 3.1 Dimensions and weight Fig. 3-1: Dimensions FAT 300 Fig. 3-2: Dimensions FAT 300S / FAT 500S Machine FAT 300 FAT 300S FAT 500S Base dimensions A x B (max.) -
Page 10: Transport, Packaging And Storage
Height adjustable FELDER working table FAT 300 / FAT 300S / FAT 500S Transport, packaging and storage 4 Transport, packaging and storage 4.1 Safety instructions Attention! Risk of material damage! The machine can be damaged or destroyed if it is subjected to improper handling during transport. -
Page 11: Storage
Height adjustable FELDER working table FAT 300 / FAT 300S / FAT 500S Transport, packaging and storage 4.4 Storage Keep items sealed in their packaging until they are assembled/installed and be sure to observe the stacking and storage symbols on the outside of the packaging. -
Page 12: Setup And Installation
Height adjustable FELDER working table FAT 300 / FAT 300S / FAT 500S Setup and installation 5 Setup and installation 5.1 Safety instructions Warning! Risk of injury! Improper assembly and installation can lead to serious physical injury or equipment damage. For this reason, this work may only be carried out by authorised, trained personnel who are familiar with how to operate the machine and in strict observance of all safety instructions. -
Page 13: Operation
Attention! Risk of material damage! Danger of tipping Only process work pieces that can be securely positioned. Load capacity (max.) FAT 300 & FAT 300S - 300 kg / FAT 500S - 500 kg 6.1 Authorised and prohibited work techniques... -
Page 14: Panel Tilting Device For Felder Working Tables
Height adjustable FELDER working table FAT 300 / FAT 300S / FAT 500S Operation / Service 6.3 Panel tilting device for FELDER working tables Attention! Risk of material damage! Danger of tipping - Load capacity (max.) 100 kg Installation and commissioning: See individual assembly instructions... -
Page 15: Annex - Declaration Of Conformity
Height adjustable FELDER working table FAT 300 / FAT 300S / FAT 500S Annex 8 Annex - Declaration of Conformity EG-Declaration of Conformity According to Machine Guidelines 2006/42/EG We hereby declare that the machine indicated below, which corresponds to the design and construction of the model we placed on the market, conforms with the health and safety requirements as stated by the EC. - Page 16 © Felder KG KR-FELDER-STR.1 A-6060 Hall in Tirol Tel.: +43 (0) 5223 / 58 50 0 Fax: +43 (0) 5223 / 56 13 0 Email: info@felder-group.com Internet: www.felder-group.com...
