Felder FAT 300 User Manual

Height adjustable working table
Hide thumbs Also See for FAT 300:
Table of Contents

Advertisement

Quick Links

2x
M 8x20 mm
1
Torx TX 40
13 mm
10 Nm
2x
2x
M 8x20 mm
ISK 5 mm
4

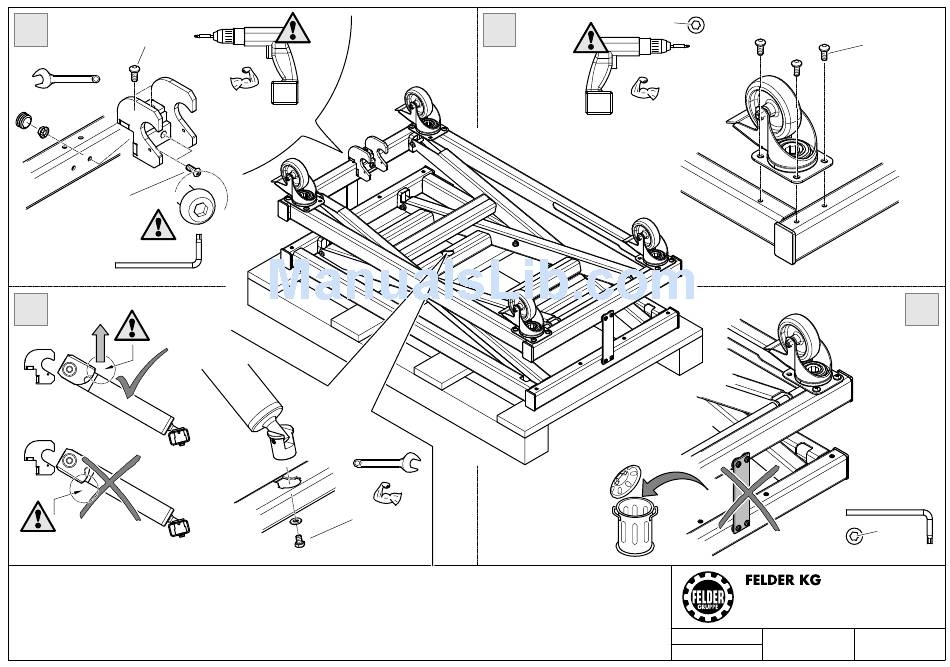

Aufbauanleitung - Montagewagen FAT 300 (Traglast max 300 kg)
Assembly instruction - Mounting table FAT 300 (Load capacity max. 300 kg)
Instructions de montage - Table pour montage FAT 300 (Capacité de levage max. 300 kg)
Manuale di installazione - Carrello di montaggio FAT 300 (Capacità portante max. 300 kg)
4 x
2
13 mm
M 8x12 mm
SW 13 mm
TX 40
10 Nm
KR-FELDER-STR. 1, A-6060 HALL in Tirol
AUSTRIA, Tel: 05223 / 58 50-0 - Fax: DW 61
www.felder-group.com
13.1.2016
Z.Nr:
Stand
420240-901 / 1
HG
Gez.
3 x
M 8x20 mm
Torx TX 40
2 x
3
TX 30
Artikel:
420-240
420-241

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAT 300 and is the answer not in the manual?

Questions and answers

Related Manuals for Felder FAT 300

Summary of Contents for Felder FAT 300

  • Page 1 Assembly instruction - Mounting table FAT 300 (Load capacity max. 300 kg) AUSTRIA, Tel: 05223 / 58 50-0 - Fax: DW 61 www.felder-group.com Instructions de montage - Table pour montage FAT 300 (Capacité de levage max. 300 kg) 13.1.2016 Z.Nr:...
  • Page 2 10 mm M 6x10 mm SW 10 mm M8x20 mm TX 40 ca. 30 kg M 6x16 mm KR-FELDER-STR. 1, A-6060 HALL in Tirol 10 Nm AUSTRIA, Tel: 05223 / 58 50-0 - Fax: DW 61 www.felder-group.com TX 30 13.1.2016 Z.Nr:...
  • Page 3 1200 x 739 mm Art. Nr.: 420-243 420-244 Min- Position ca. 425 mm Max 300 kg STOP KR-FELDER-STR. 1, A-6060 HALL in Tirol AUSTRIA, Tel: 05223 / 58 50-0 - Fax: DW 61 www.felder-group.com 13.1.2016 Z.Nr: Artikel: 420-240 Stand 420-240-901 / 3 420-241 Gez.

  • Page 4: User Manual

    User manual Translation Height adjustable FELDER working table FAT 300 Please Note: You can download the manual in your local language here: www.felder-group.com www . felder-group.com Keep this manual handy and in good condition for continual reference! Dok.ID: 420240-903_02 • Englisch • 2015-07-14...
  • Page 5 This manual must be kept in good condition and should be considered as part of the machine. Furthermore, the manual must be kept to hand and within the vicinity of the machine so that it is accessible to operators when using, maintaining or repairing the machine. FELDER A product of the FELDER GROUP! © Felder KG KR-FELDER-STR.1 A-6060 Hall in Tirol Tel.: +43 (0) 5223 / 58 50 0...

  • Page 6: Table Of Contents

    Height adjustable FELDER working table FAT 300 Content Content 1 General ......................4 1.1 Symbol legend .......................4 1.2 Information about the manual ..................4 1.3 Copyright ........................4 1.4 Liability and warranty .....................5 1.5 Warranty notice ......................5 1.6 Spare parts ........................5 1.7 Disposal ........................5 2 Safety ......................

  • Page 7: General

    Height adjustable FELDER working table FAT 300 General 1 General 1.1 Symbol legend Important technical safety instructions in this manual are In all these particular cases, special attention must be marked with symbols. paid in order to avoid accidents, injury to persons or These instructions for work safety must be followed.

  • Page 8: Liability And Warranty

    Height adjustable FELDER working table FAT 300 General 1.4 Liability and warranty The contents and instructions in this manual have been scale. The actual delivery contents are dependent on compiled in consideration of current regulations and custom-build specifications, add-on options or recent...

  • Page 9: Safety

    Height adjustable FELDER working table FAT 300 Safety 2 Safety At the time of its development and production, the the machine. machine was built in accordance with prevailing To further minimise risks, the other chapters of this technological regulations and therefore conforms to manual contain specific safety instructions, all marked industry safety standards.

  • Page 10: Responsibilities Of The Operator

    Height adjustable FELDER working table FAT 300 Safety 2.4 Responsibilities of the operator This manual must be kept in the immediate vicinity of accident prevention regulations, general safety regula- the machine and be accessible at all times to all persons tions as well as current environmental stipulations that working on or with the machine.

  • Page 11: Personal Protective Equipment

    Height adjustable FELDER working table FAT 300 Safety 2.7 Personal protective equipment When working on or with the machine, the following must be strictly observed: Persons with long hair who are not wearing a hairnet are not permitted to work on or with the machine!

  • Page 12: Technical Specifications

    Height adjustable FELDER working table FAT 300 Technical specifications 3 Technical specifications 3.1 Dimensions and weight Fig. 3-1: Dimensions FAT 300 Machine FAT 300 Base dimensions A x B (max.) 1290 x 780 mm Worktop surface C x D 1200 x 739 mm Total height E (Position: upper) approx.

  • Page 13: Transport, Packaging And Storage

    Height adjustable FELDER working table FAT 300 Transport, packaging and storage 4 Transport, packaging and storage 4.1 Safety instructions Attention! Risk of material damage! The machine can be damaged or destroyed if it is subjected to improper handling during transport.

  • Page 14: Storage

    Height adjustable FELDER working table FAT 300 Transport, packaging and storage 4.4 Storage Keep items sealed in their packaging until they are assembled/installed and be sure to observe the stacking and storage symbols on the outside of the packaging. Store packed items only under the following conditions •...

  • Page 15: Setup And Installation

    Height adjustable FELDER working table FAT 300 Setup and installation 5 Setup and installation 5.1 Safety instructions Warning! Risk of injury! Improper assembly and installation can lead to serious physical injury or equipment damage. For this reason, this work may only be carried out by authorised, trained personnel who are familiar with how to operate the machine and in strict observance of all safety instructions.

  • Page 16: Operation

    Height adjustable FELDER working table FAT 300 Operation 6 Operation Attention! Risk of material damage! Danger of tipping Only process work pieces that can be securely positioned Load capacity (max.) 300 kg 6.1 Authorised and prohibited work techniques Authorised working techniques •...

  • Page 17: Service / Cleaning The Machine

    Height adjustable FELDER working table FAT 300 Service 7 Service / Cleaning the machine Note: Generally there is no lubrication necessary, because the ball bearings are free of maintenance. The guiding systems are completely maintenance free and do not require the addition of lubricants.

  • Page 18: Annex - Declaration Of Conformity

    Modifying or altering the machine without the express written agreement of the manufacturer shall render the warranty null and void. The signatory of this statement is the appointed agent for the compilation of the technical information. Johann Felder, Managing Director FELDER KG Hall in Tirol, 1.6.2014 KR-FELDER-STR.1 • A-6060 Hall in Tirol...
  • Page 19 © Felder KG KR-FELDER-STR.1 A-6060 Hall in Tirol Tel.: +43 (0) 5223 / 58 50 0 Fax: +43 (0) 5223 / 56 13 0 Email: info@felder-group.com Internet: www.felder-group.com...
