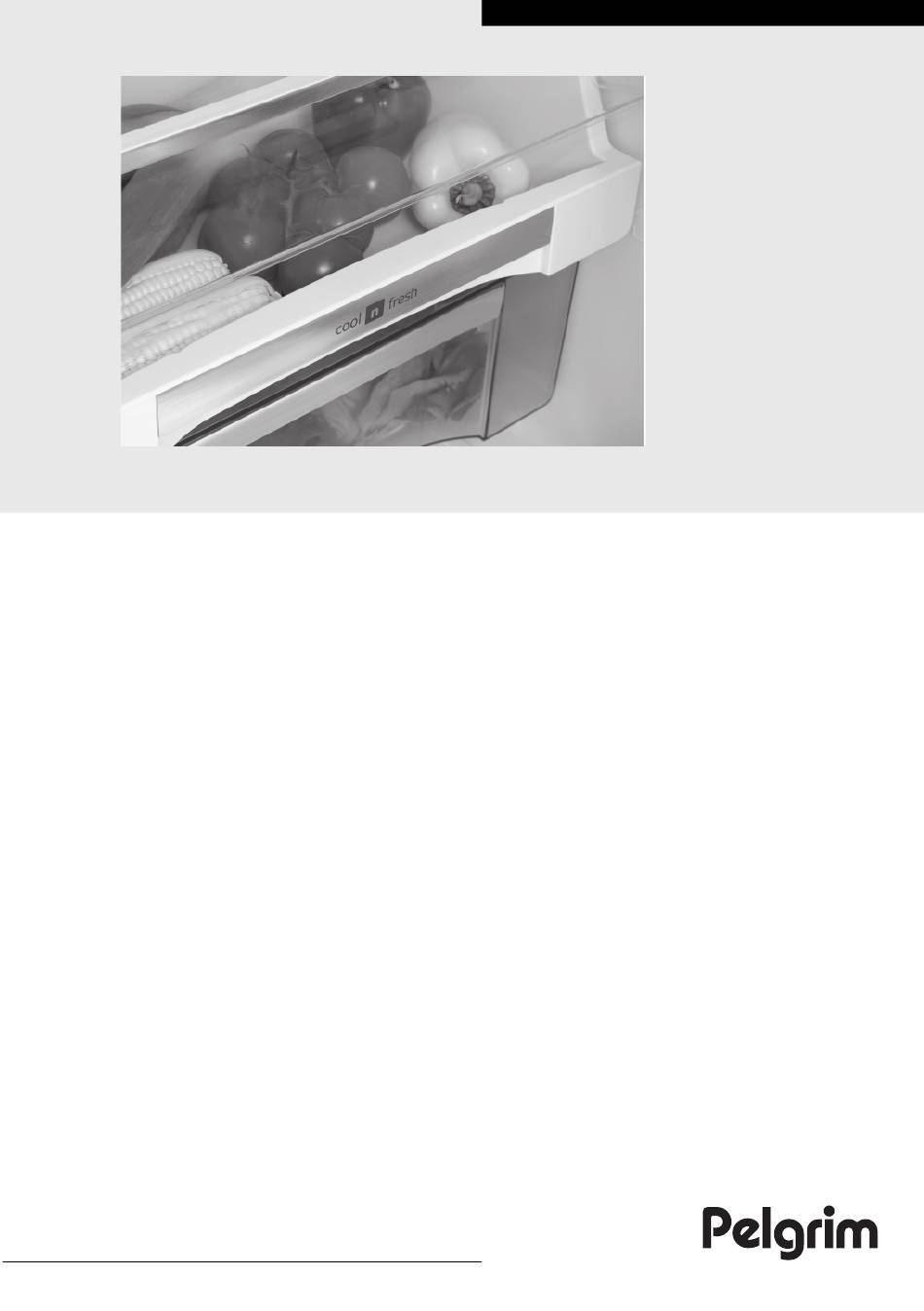

- Page 1 PKD5088V PKD5102V PKD5122V Instructions for use refrigerator with freezer compartment...
-
Page 2: Table Of Contents
Refrigerator with freezer Thank you for your confi dence in buying our appliance and congratulations on the excellent choice. We hope it will successfully serve its purpose for many years. Refrigerator with freezer (hereinafter: the appliance) is intended to be used in households. The lower part is refrigerator for storing fresh food at the temperature higher than 0°C. -
Page 3: Before Fi Rst Operation
Before fi rst operation • The appliance is manufactured in compliance with all relevant safety standards; however, it is recommended that persons with impaired physical, motional, or mental abilities, or persons with inadequate experience and knowledge, do not use the appliance without due supervision. The same recommendation applies to minors using the appliance. -
Page 4: A Few Tips On How To Save Power With Your Refrigerator-Freezer Combo
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of thisproduct. -
Page 5: Description Of The Appliance
Description of the appliance Interior equipment of the appliance will typically vary according to the specifi c model. 1 Freezer 2 Interior light 3 Control panel 4 Adjustable glass shelves 5 Pull-out glass shelf (adjustable height) 6 Storage compartment 7 Refrigerator door pans (options: deep, shallow;... -
Page 6: Installation And Connections
Installation and connections Selecting the location • Place the appliance in dry and well aired room. The appliance operates best at temperature ranges indicated in the chart be- low. Relevant class of the appliance is indicated on the rating plate. Class Ambient temperature SN (subnormal) -
Page 7: Appliance With Mechanic Control
Appliance with mechanic control A Temperature setting and on/off knob Turning the appliance Turn on: rotate the thermostat knob clockwise towards position 7. on/off Turn off: rotate the knob back to position STOP (0). Setting the temperature • Higher settings (towards 7) selected with the knob correspond to lower (cooler) temperatures. -
Page 8: Refrigerator Accessories
Refrigerator accessories (Equipment depends on the model) Shelf • Shelves can be optionally placed on the guides inside the appliance. To remove the shelf, fi rst slide it out as far as the guide allows it, then slightly lift it up and pull it out. Quickly perishable food should be stored on the back i.e. -
Page 9: Storage Of Food In The Refrigerator
Freezer compartment: - upper shelf position: for freezing (only with some models) - lower shelf position: for storage (only with some models) Storage of food in the refrigerator Important precautions • Proper use of the appliance, adequately packed food, correct and hints temperature and hygienic precautions produce substantial impact on the quality of stored food. -
Page 10: Freezing And Storing Frozen Food
Freezing and storing frozen food Freezing process • Activate the freezer boost (super freeze) function 24 hours before freezing fresh food: - set the dial between positions 4 and 6. After 24 hours of super freeze operation, insert the fresh food into the freezer compartment. - Page 11 Storage periods of Recommended periods of storing frozen food in the freezer frozen food Food Period Fruit, beef from 10 to12 months Vegetables, veal, poultry from 8 to 10 months Venison from 6 to 8 months Pork from 4 to 6 months Chopped (minced ) meat 4 months Bread, pastry, TV-dinners, fat free fi...
-
Page 12: Defrosting The Appliance
Defrosting the appliance Automatic defrosting of Refrigerator needs no special defrosting procedure, because ice the refrigerator deposited at the inner back wall is defrosted automatically. Ice deposited on the inner back wall during the compressor operation is defrosted when the compressor stops operating, and condensed water drops are drained through the outlet in the inner back wall into the drain pan situated above the compressor where it evaporates. -
Page 13: Cleaning The Appliance
Cleaning the appliance Prior any cleaning attempt disconnect the appliance from the mains (see the control chapter for ON/OFF function), and pull the power cord from the mains wall outlet. Make sure to remove traces of any cleansing agents you had been using. -
Page 14: Troubleshooting Guide
Troubleshooting guide Fault: Cause/Remedy The appliance does not • Check if there is power in the socket and if the appliance is operate after connection to the switched on. mains: Cooling system operates • Ambient temperature too high. continuously without •... -
Page 15: Noise Level
Noise level The refrigerator – freezer appliances are cooled by the refrigeration system with a compressor (assisted by fan in certain models) whose operation may produce certain noise. The level of such noise depends upon the location, correct use and age of the appliance. - Page 16 COOLER 4* 54-2 PEL 363309/en (10-11)
