- Page 1 PKS24088 PKS24102 PKS24122 PKD23102 PKS24140 Instructions for use Built-in refrigerator...
- Page 2 Please visit our website where you can enter your appliance model number, indicated on the rating plate or the warranty sheet, to find detailed description of your appliance, tips on use, troubleshooting, service information, instructions for use etc. www.pelgrim.nl Important safety warning General warnings and tips Protecting the environment...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION 4 IMPORTANT NOTES AND PRECAUTIONS 4 BEFORE USING THE APPLIANCE FOR THE FIRST TIME 5 IMPORTANT SAFETY INSTRUCTIONS 8 IMPORTANT INFORMATION ON THE USE OF APPLIANCE 9 ENVIRONMENT PROTECTION 10 ADVICE FOR SAVING ENERGY WITH REFRIGERATION APPLIANCES APPLIANCE 11 INSTALLATION AND CONNECTION DESCRIPTION 13 APPLIANCE DESCRIPTION... -
Page 4: Important Notes And Precautions
IMPORTANT NOTES AND PRECAUTIONS BEFORE USING THE APPLIANCE FOR THE FIRST TIME Before connecting the appliance to the power mains, please read carefully the instructions for use which describe the appliance and its correct and safe use. The instructions apply to several appliance types/models; thus, settings or equipment may be described herein which is not available in your appliance. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING! Risk of fire/flammable materials. The appliance must be connected to the power mains and grounded in compliance with the effective standards and regulations. WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Before cleaning the appliance, unplug it from the power mains (unplug the power cord from the wall outlet). - Page 6 Danger of frostbite Never put frozen food in your mouth and avoid touching frozen food as this may cause frostnip or frostbite. Safety of children and vulnerable persons The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 7 Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Warning regarding the refrigerant The appliance contains a small amount of an environmentally friendly yet flammable gas R600a. Make sure that no parts of the cooling system are damaged.
-
Page 8: Important Information On The Use Of Appliance
IMPORTANT INFORMATION ON THE USE OF APPLIANCE WARNING! This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments;... -
Page 9: Environment Protection
Technical information on the appliance Rating plate can be found in the appliance interior (see figure). It indicates data on voltage, gross and net volume, type and amount of refrigerant, and information on the climate classes. ENVIRONMENT PROTECTION Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. -
Page 10: Advice For Saving Energy With Refrigeration Appliances
ADVICE FOR SAVING ENERGY WITH REFRIGERATION APPLIANCES • Install the appliance as specified in the instruction manual. • Do not open the door more often than necessary. • Occasionally make sure air circulation underneath the appliance is unobstructed. • If the gasket is damaged or does not provide a perfect seal for any reason, have it replaced as soon as possible. -
Page 11: Installation And Connection
INSTALLATION AND CONNECTION SELECTING THE ROOM • Install the appliance in a dry and well ventilated room. The appliance will operate correctly if the environment temperature is in the interval specifi ed in the table. The appliance class is indicated on the rating plate / label with the basic information on the appliance. - Page 12 CONNECTING THE APPLIANCE • Connect the appliance to the power mains using the power cord. The wall outlet should be fi tted with a ground contact (safety socket). Nominal voltage and frequency are indicated on the rating plate/label with basic information on the appliance.
-
Page 13: Appliance Description

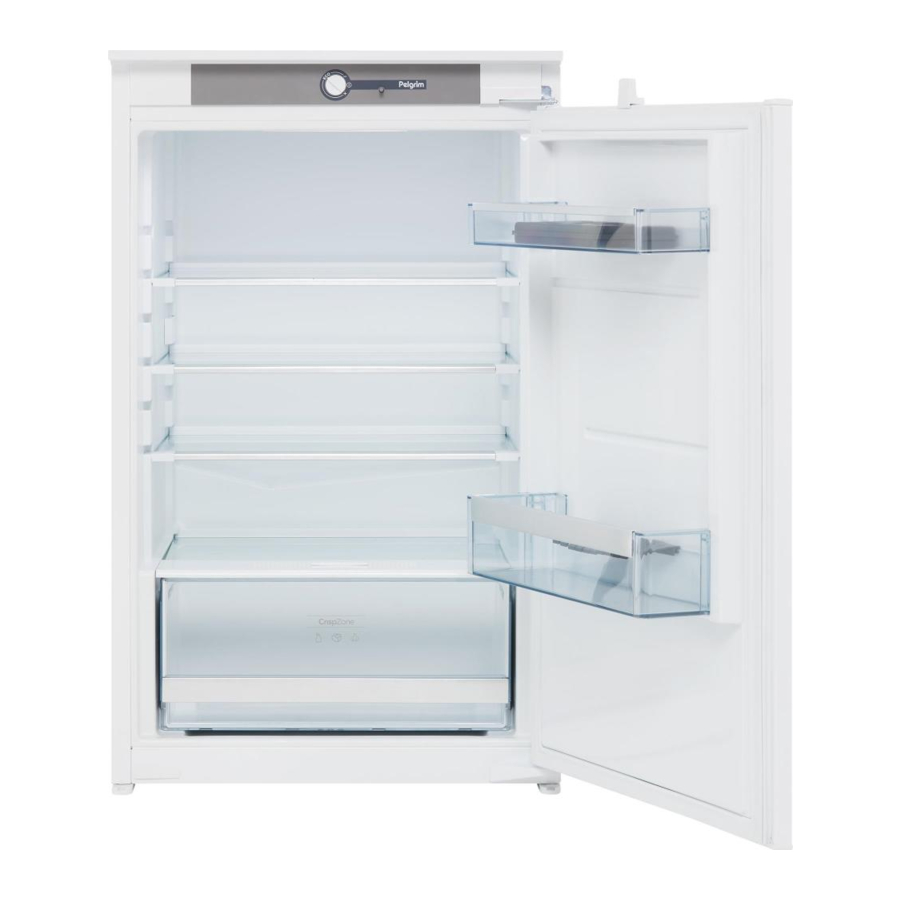

APPLIANCE DESCRIPTION Appliance interior equipment may change according to the appliance model. 1 Control unit 2 LED lighting 3 Glass shelves 4 Fruit and vegetable drawer with humidity control 5 Door balconies 6 Bottle balcony... - Page 14 1 Control unit 2 LED lighting 3 Glass shelves 4 Fruit and vegetable drawer with humidity control 5 Fruit and vegetable drawer 6 Door balconies 7 Bottle balcony...
-
Page 15: Operating The Appliance
OPERATING THE APPLIANCE A Temperature setting and on/off knob Use the dial to switch the appliance on or off , set the temperature, and control the ECO function. B Lighting on/off key Lighting will switch on automatically when you open the refrigerator compartment door, and it will switch off when you close it. - Page 16 ADJUSTING THE TEMPERATURE IN THE APPLIANCE • After the appliance is switched on, it may take several hours for the set temperature to be reached. Do not place any food into the refrigerator before the temperature drops to the selected setting. •...
-
Page 17: Appliance Interior Equipment
APPLIANCE INTERIOR EQUIPMENT GLASS SHELVES The shelves are made from safety glass. To change the height of a shelf, lift the front of the shelf (1). Take hold of the back and pull the shelf slightly forwards (2). Move the shelf to a higher or lower position (3). - Page 18 VEGETABLES DRAWER WITH MANUAL HUMIDITY CONTROL The drawer at the bottom of the refrigerator is intended for storing fruit and vegetables. It provides humidity and prevents the food from drying out. The drawer has a humidity regulator which allows setting the humidity level. Slider position to the right: closed vents, higher humidity in the drawer Slider position to the left: open vents,...
- Page 19 DOOR COMPARTMENTS The height of the door compartments is adjustable. Lift the compartment out of the groove and fit it in the required position. Each compartment can carry a maximum weight of 5 kg. The bottom door compartment is suitable for bottles.
-
Page 20: Storing Food
STORING FOOD RECOMMENDED DISTRIBUTION Sections of the refrigeration compartment • Upper section: canned food, bread, wine and pastas, etc. • Middle section: dairy products, ready-to-cook meals, desserts, soft drinks, beer and cooked food, etc. • Lower section: meat, meat produce, delicatessen. •... - Page 21 AVOID CONTAMINATION OF FOOD To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a signifi cant increase of the temperature in the compartments of the appliance. • Regularly clean surfaces that can come in contact with food and accessible drainage systems.
-
Page 22: Defrosting The Appliance
DEFROSTING THE APPLIANCE AUTOMATIC REFRIGERATOR DEFROSTING This refrigerator does not need defrosting because the ice on the back interior wall is thawed automatically. Any accumulated ice will melt when the compressor unit is inactive. Drops will flow through an opening in the refrigerator rear wall into a tray fitted above the compressor, from where they will evaporate. -
Page 23: Cleaning The Appliance
CLEANING THE APPLIANCE Before cleaning, unplug the appliance from the power mains – switch off the appliance (see chapter Operating the Appliance) and unplug the power cord from the wall outlet. Cleaners that contain abrasive substances, acids, or solvents are not suitable for cleaning as they may damage the surface. -
Page 24: Troubleshooting
TROUBLESHOOTING Problem: Cause or remedy Appliance is connected • Make sure there is voltage in the power outlet and to the power mains but that the appliance is switched on. it does not work. • Too high ambient temperature. Cooling system •... - Page 25 Problem: Cause or remedy Door is difficult to open: • If you are trying to open the freezer door after just having closed it, this could be difficult to do. As you open the door, some cool air escapes from the appliance and it is replaced by warm air from the environment.
- Page 28 COOLER BI540-F2 ESS PEL en (06-19)
