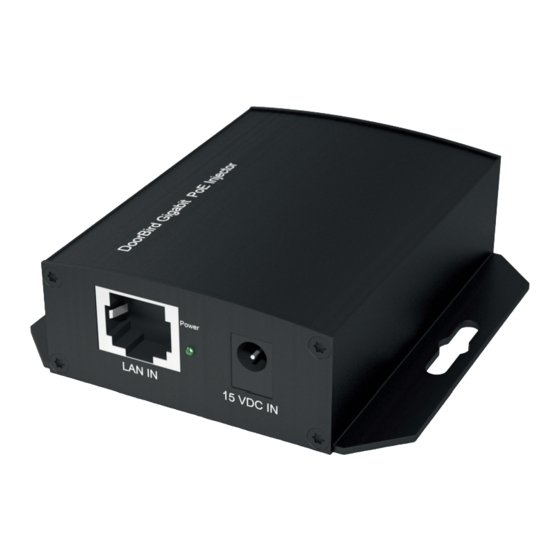

DoorBird A1091 Series Installation Manual
Gigabit poe-injector
Hide thumbs
Also See for A1091 Series:
- Installation manual (12 pages) ,
- Installation manual (28 pages)
Subscribe to Our Youtube Channel
Related Manuals for DoorBird A1091 Series
Summary of Contents for DoorBird A1091 Series
- Page 1 Page 2-13 Installation Manual Gigabit PoE-Injector Series A1091 Seite 14-27 Installationsanleitung Gigabit PoE-Injektor A1091 Serie A1091 VERSION 1.2, MIN. HW 1.2...
- Page 2 You can always find the most up-to-date version of the installation manual on www.doorbird.com/support To make things easier we use the term “device” for the product “DoorBird Gigabit PoE-Injector A1091”. Liability Every care has been taken in the preparation of this document.
- Page 3 Notice: Indicates a situation which, if not avoided, could result NOTIC E in damage to property. Important: Indicates significant information which is essential for the product to function correctly. Note: Indicates useful information which helps in getting the most out of the product. Hazard information WARNING ∙...
- Page 4 WARNING ∙ For safety, approval and licensing reasons (CE/FCC/IC etc.), unauthorized change and/or modification of the device is not permitted. ∙ The device is not a toy; do not allow children to play with it. Do not leave packaging material lying around. Plastic films/bags, pieces of polystyrene, etc.
- Page 5 ∙ Do not put any metal or flammable material into the device. Fire, electric shock, or device trouble could result. ∙ Existing wiring such as chime wiring, etc. may contain high voltage AC electricity. Damage to the device or electric shock could result. Wiring and installation must be done by a qualified eletrician.
- Page 6 WARNING ∙ On devices with intercom, be sure to perform a call test with low audio volume on both intercom devices. A sudden call etc. may arrive causing for example damage to your ear. ∙ If the device does not operate properly, unplug the power supply. ∙...
- Page 7 ∙ Keep the device more than 1 m (3.3') away from microwave, radio, TV, wireless router and any other wireless devices. ∙ On devices with intercom or built-in speaker or built-in microphone or signal transmission functions, keep the wires more than 30 cm (12'') away from AC 100-240 V wiring.
- Page 8 Transportation When transporting the device, use the original packaging or N OTIC E equivalent to prevent damage to the device. Warranty Information For information about the device warranty, see www.doorbird.com/warranty COMPONENTS 1x Device 1x Installation manual 1x Quickstart guide with Digital Passport...
-
Page 9: Installation
Network speed and network components Please ensure that the upload speed of your Internet connection is at least 0.5 Mbps. You can also carry out a speed test at any time via the DoorBird... - Page 10 App. The user experience is only as good as your network speed, network stability and quality of your network components, such as your Internet router and WiFi access points or WiFi repeaters. Please also make sure that your net- work components are not older than two years, have been manufactured by a well-known manufacturer, and have the latest firmware installed.
-
Page 11: Diagnostic Leds
“POE + DATA OUT” of the device. Connect the spare end of the network cable connected to the RJ45 jack “POE + DATA OUT” to the product you would like to establish a PoE and network data connection with, e.g. a DoorBird IP Video Door Station, DoorBird 2-Wire Ethernet PoE Converter (Sender) or an IP Camera. -
Page 12: Legal Notes
LEGAL NOTES If the device is a door-, indoor station or camera: General remarks 1. DoorBird is a registered trademark of Bird · In many countries video and voice signal may Home Automation GmbH. only be transmitted once a visitor has rung the bell (data privacy, configurable in the App). - Page 13 Electronic equipment must be disposed e.g. at local collection points for waste electronic equipment in compliance with the Waste Elec trical and Electronic Equipment Directive. Publisher Bird Home Automation GmbH Uhlandstraße 165 10719 Berlin Germany Web: www.doorbird.com Email: hello@doorbird.com...
