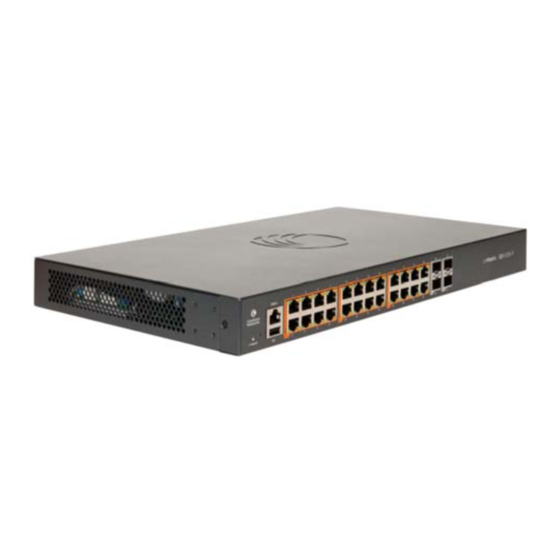

cnMatrix EX1K Switch
Basic Configuration Guide


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cnMatrix EX1K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cambium Networks cnMatrix EX1K

Summary of Contents for Cambium Networks cnMatrix EX1K

  • Page 1       cnMatrix EX1K Switch Basic Configuration Guide  ...

  • Page 2: Package Contents

        Thank you for choosing the cnMatrix switch, a Cambium Networks communications device. Before you begin installing the switch, verify you have all the package contents available, and a PC with SSH client, such as PuTTY or OpenSSH SSH Client.

  • Page 3: Product Overview

    Connect the power cord to the power inlet, and then plug the power cord into a wall socket. When the switch is booting up, the illuminated Cambium Networks logo will be blinking blue. When the switch is fully up and running, the illuminated Cambium Networks logo is solid blue.

  • Page 4: Default Configuration

    Default Configuration When booting up for the first time the cnMatrix EX1K switch will try to acquire a dynamic IP address through DHCP. If a DHCP Server is not present on the network, the switch will fall back to 192.168.1.1 static IP address on the In- Band ports.

  • Page 5: Logging In To The Switch

    EX1K Basic Configuration Guide      Logging in to the switch Use PuTTY SSH client. On the PuTTY Configuration window, in the Host Name field, enter 192.168.1.1 IP address and in the Port field, enter the 22 value. Click Open. The login prompt is displayed.

  • Page 6: Hardware Overview

    EX1K Basic Configuration Guide      Hardware Overview Power LED cnMatrix Logo (Power) LED Console is continuously blue – the RJ45 connection switch is operational. for console access. cnMatrix Logo (Power) LED is blinking blue – the switch is initializing.

  • Page 7: Safety Notice

    The following topics are described in this chapter: Cambium Networks End User License Agreement on Page ____ Open Source Components incorporated in the Hardware and associated notices on Page ____ Hardware Warranty on Page ____  ...

  • Page 8: Acceptance Of This Agreement

    In connection with Cambium Networks’ delivery of certain proprietary software or products containing embedded or pre-loaded proprietary software, or both, Cambium Networks is willing to license this certain proprietary software and the accompanying documentation to you only on the condition that you accept all the terms in this End User License Agreement (“Agreement”).

  • Page 9: Title And Restrictions

    (iii) was given to you free of any obligation to keep it confidential; (iv) is independently developed by you; or (v) is disclosed as required by law provided that you notify Cambium Networks prior to such disclosure and provide Cambium Networks with a reasonable opportunity to respond.

  • Page 10: Maintenance

        Major features may be available from time to time for an additional license fee. If Cambium Networks makes available to you major features and no other end user license agreement is provided, then the terms of this Agreement will apply.
  • Page 11 ENTIRE AGREEMENT This agreement contains the parties’ entire agreement regarding your use of the Software and may be amended only in writing signed by both parties, except that Cambium Networks may modify this Agreement as necessary to comply with applicable laws.
  • Page 12 EX1K Basic Configuration Guide      5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project. 6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit...
  • Page 13 EX1K Basic Configuration Guide      THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO...
  • Page 14 EX1K Basic Configuration Guide      This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software. Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions: 1.
  • Page 15 EX1K Basic Configuration Guide      THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN...
  • Page 16 EX1K Basic Configuration Guide      DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
  • Page 17 EX1K Basic Configuration Guide      IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES,...
  • Page 18 EX1K Basic Configuration Guide      NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
  • Page 19 EX1K Basic Configuration Guide      Chris Adams Corinna Vinschen Cray Inc. Denis Parker Gert Doering Jakob Schlyter Jason Downs Juha Yrjölä Michael Stone Networks Associates Technology, Inc. Solar Designer Todd C. Miller Wayne Schroeder William Jones Darren Tucker...
  • Page 20 EX1K Basic Configuration Guide      Apart from the previously mentioned licenses, various pieces of code in the openbsd-compat/ subdirectory are licensed as follows: Some code is licensed under a 3-term BSD license, to the following copyright holders: Todd C. Miller...
  • Page 21 EX1K Basic Configuration Guide      Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish,...
  • Page 22 EX1K Basic Configuration Guide      We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library. To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.
  • Page 23 EX1K Basic Configuration Guide      2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: •...
  • Page 24 EX1K Basic Configuration Guide      6. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications.
  • Page 25 EX1K Basic Configuration Guide      you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

  • Page 26: Hardware Warranty

    EX1K Basic Configuration Guide      This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

  • Page 27: Electrical Safety Information

    To prevent loss of life or physical injury, observe the following safety guidelines. In no event shall Cambium Networks be liable for any injury or damage caused during the installation of the switch. The equipment is designed for indoor installation and not intended to be connected to exposed (outside) networks.

  • Page 28: Rohs/Weee Compliance

    EX1K Basic Configuration Guide      Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
