cnMatrix Quick Start Guide
Thank you for choosing the cnMatrix switch, a Cambium Networks communications device. Before you
begin installing the switch, verify you have all the package contents available, and a PC with SSH client,
such as PuTTY or OpenSSH SSH Client.
Package Contents

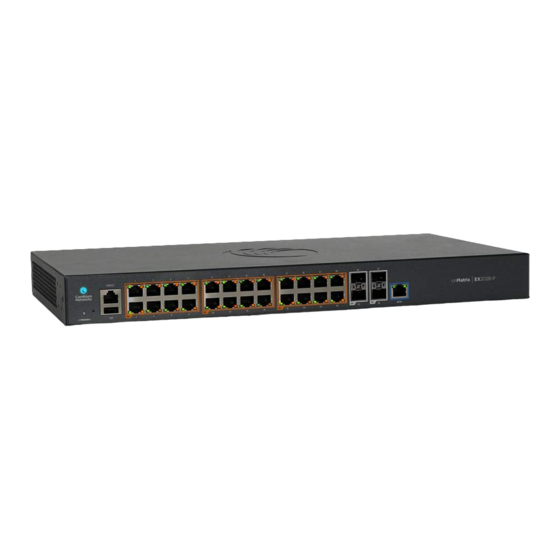

cnMatrix Switch (8 port or 24 port)
Power Cord
Quick Start Guide
Product Overview
The cnMatrix switch come in four version to support various deployment scenarios.
Part Number
Number
of Ports
cnMatrix EX2010
8
cnMatrix EX2010-P
8
cnMatrix EX2028
24
cnMatrix EX2028-P
24
Powering Up
Power
Throughput
over
Ethernet
No
20 Gbps
Yes
20 Gbps
No
128 Gbps
Yes
128 Gbps
1
Switch
Ports will display an orange border
Ports will display an orange border
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cambium Networks cnMatrix EX2010-P
Summary of Contents for Cambium Networks cnMatrix EX2010-P
-
Page 1: Package Contents
Quick Start Guide Thank you for choosing the cnMatrix switch, a Cambium Networks communications device. Before you begin installing the switch, verify you have all the package contents available, and a PC with SSH client, such as PuTTY or OpenSSH SSH Client. -
Page 2: Default Configuration
Connect the power cord to the power inlet, and then plug the power cord into a wall socket. When the switch is booting up, the illuminated Cambium Networks logo will be blinking blue. When the switch is fully up and running, the illuminated Cambium Networks logo is solid blue. -
Page 3: Logging In To The Switch
cnMatrix Quick Start Guide Set The IP address of the interface to 192.168.0.10 and the Subnet mask to 255.255.255.0 Logging in to the switch Use PuTTY SSH client. On the PuTTY Configuration window, in the Host Name field, enter the 192.168.0.1 IP address and in the Port field, enter the 22 value. -
Page 4: Hardware Overview
cnMatrix Quick Start Guide In the cnMatrix login prompt enter the default username: admin In the Password prompt enter the default login password: admin Hardware Overview Fiber Ports LED Color Local Console Port Management Port Ports The 8-port cnMatrix cnMatrix Logo (Power) RJ45 connection for Used for Managing the 8 or 24 Data ports used... -
Page 5: Safety Notice
This switch is designed with a power inlet with an integrated ground. A power cord from the switch To prevent loss of life or physical injury, observe the following safety guidelines. In no event shall Cambium Networks be liable for any injury or damage caused during the installation of the switch. -
Page 6: Europe - Eu Declaration Of Conformity
Quick Start Guide Europe- EU Declaration of Conformity Hereby, CAMBIUM NETWORKS, Inc. declares that the equipment type [EX2010, EX2010-P, EX2028, EX2028-P] is in compliance with Directive 2014/30/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.cambiumnetworks.com/...
