Page 1: Operator's Manual

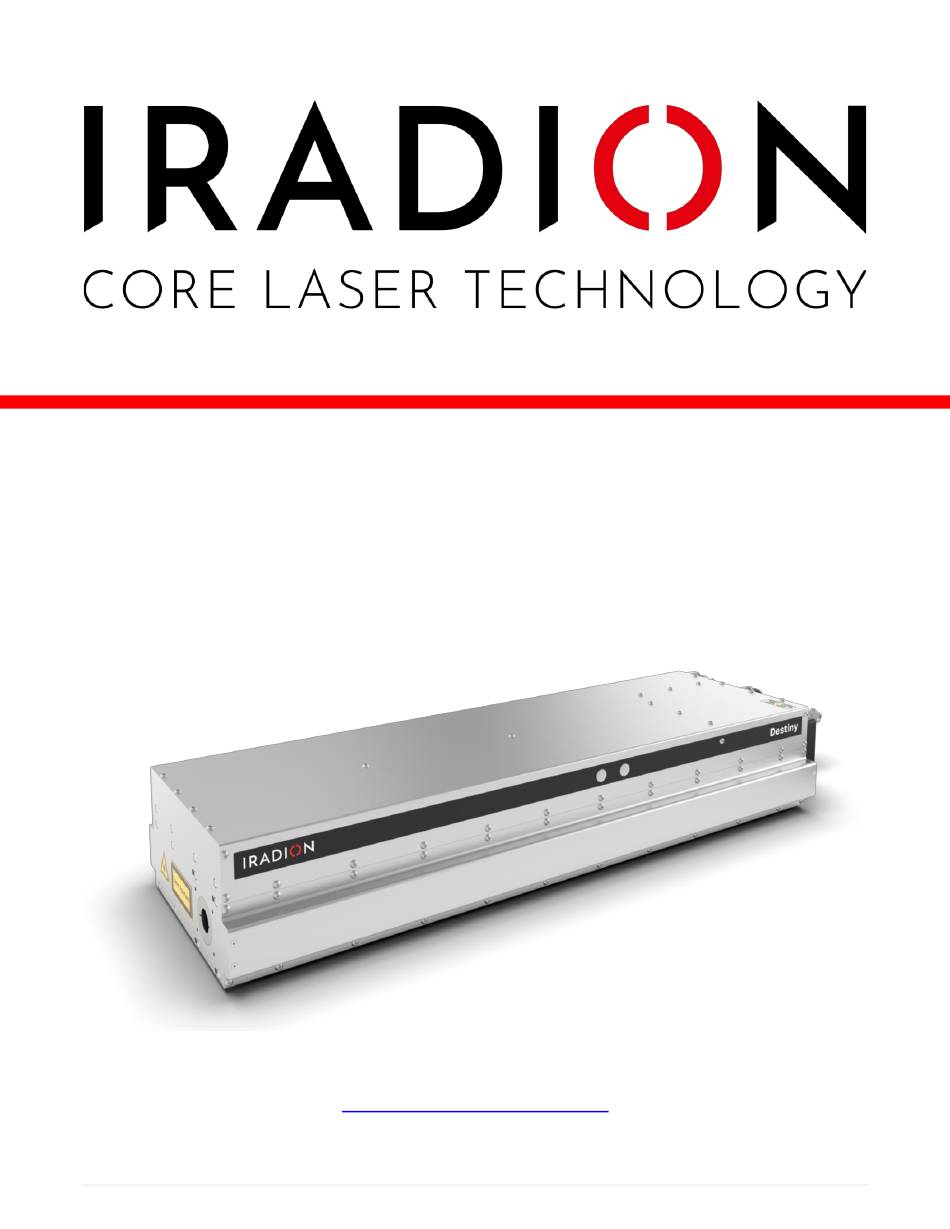

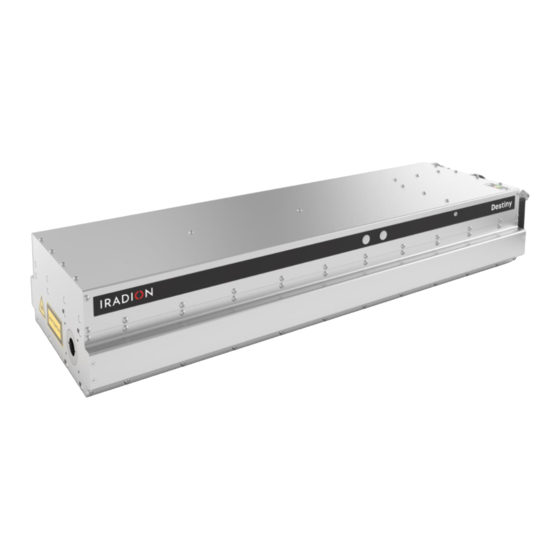

OPERATOR’S MANUAL Destiny Series CERAMICORE® CO Laser: Models D200 & D250 http://www.iradionlaser.com P a g e... -
Page 2: Table Of Contents
Water Filter......................24 Setting the Flow Rate ..................24 Condensation ..................... 25 The D200/D250 Power Supply and Air Pump Unit ......... 26 Electrical Ratings ....................26 Environmental Conditions .................. 26 The D200/D250 Power Supply and Air Pump Unit ......... 27 Mechanical Outline .................... -
Page 3: Hazard Information
Hazard Information Hazard information includes terms, symbols, and instructions used either in this manual or on the equipment to alert both operating and service personnel to the recommended precautions in the care, use, and handling of Class 4 laser equipment. Terms Certain terms are used throughout the manual or on the equipment labels. -
Page 4: General Hazards
General Hazards Warning – Serious Personal Injury U.S. customers should refer to and follow the laser safety precaution described in the American Nation Standards Institute (ANSI) Z136.1-2014 document, Safe Use of Lasers. Procedures listed in this Standard include the appointment of a Laser Safety Officer (LSO), Operation of the product in an area of limited access by trained personnel, servicing of equipment only by trained and authorized personnel, and posting of signs warning of the potential hazards. -
Page 5: Infinity Series Label Locations
Infinity Series Label Locations P a g e... -
Page 6: Laser Safety
Laser Safety To prevent exposure to direct or scattered laser radiation, follow all safety precautions specified throughout this manual and exercise safe operating practices per ANSI Z136.1-2014 at all times when actively lasing. IEC 60825-1 MPE (Maximum Permissible Exposure) = 1.00e-1 NOHD (Nominal Ocular Hazard Distance) = 1.68e+2 Always wear approved Laser Safety glasses with a minimum OD (Optical Density) 4.494 for a wavelength of 10.6µm. -
Page 7: Declaration Of Conformity
Declaration of Conformity When integrating Iradion’s Destiny Series Lasers, the Buyer and/or integrator of the end system is responsible for meeting all applicable Standards to obtain the CE mark. To aid in this compliance process, Iradion’s testing program has demonstrated that Infinity-Series lasers comply with the relevant requirements of 2014/30/EU, the Electromagnetic Compatibility Directive, as summarized in the table below. -
Page 8: Declaration Of Conformity
Address: Uxbridge, MA 01569 U.S.A. Hereby declare under our sole responsibility that the following equipment: Product Name: Destiny Series Model Number: D200 & D250 Conforms to the following Directive(s) and Standard(s): Applicable Directive(s): 2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive... -
Page 9: Introduction
Introduction This guide provides the basic information needed to operate an Iradion Laser. This laser is designed for use while integrated within a system and is not designed to meet CDRH requirements as a stand-alone product. As such, the user must be aware of certain requirements before use. -
Page 10: System Overview
60 seconds without cooling. Although it does have a thermal protect function, these lasers depend on the flow of water to stay cool. For that reason, the D200/D250 monitors the actual flow rate of water and will fault below or above specified limits. (See section on cooling.) The D200/D250 also includes airflow monitoring and will fault if the airflow is too high or low. - Page 11 To protect the window, Iradion provides a power supply unit that includes a long-life air pump and filters to bathe the window in clean filtered air. Do NOT burn materials close to the laser.
-
Page 12: Technical Drawings
Technical Drawings 13 | P a g e... -
Page 13: Mounting
Mounting On the bottom of the laser there are 22 mounting holes provided (4mm x 9mm deep). The laser must be mounted on three (3) points so that no stress is imparted to the structure. The mounting holes are provided so the user can select 3 holes or 3 sets of holes to attach mounting pads. -
Page 14: Specifications
684 x 196 mm x 99 mm 684 x 196 mm x 99 mm *Power Stability is measured after 5 minutes of warmup. Iradion follows a policy of continuous product improvement. All specifications are subject to change without notice. 15 | P a g e... -
Page 15: Electrical Connections, Laser
Electrical Connections, Laser There are two signal connectors and two power terminals on the rear of the laser available for operation of the laser. The 15 pin “D” connector contains all the available connections for operation. The RJ-45 connector contains a basic set of connections. Power Cable Connections Designation Description... -
Page 16: W" Type Lasers
Water cooled lasers require ½ inch plastic hose water connections before operation. See “Other Connection Details” below. D200/D250 water cooled lasers detect water flow. If the laser is operated without water flow or if the laser is not receiving enough water, a fault will occur (see fault light chart). -
Page 17: Operation Of Unit
Operation of Unit 1. Mount the laser in a manner such that the beam will strike a target capable of absorbing >300 watts of power. Make sure that the aperture is clear of obstruction. See pages 14 and 15 for the power supply connections. Remove the aperture cover. 2. -
Page 18: Tickle Pulse
Tickle Pulse This option is supplied by the customer, Iradion DOES NOT supply the tickle pulse inside the laser. Laser Command Signals During laser bench testing, it is recommended that command signals be generated from an Iradion Laser Controller or properly programed pulse generator. These units can provide the tickle pulse and drive signals needed to test and operate the laser properly. -
Page 19: System Test
Fault blinks and Temp cw when air is out of range *The D200/D250 is water cooled and therefore the Overtemp light should never light up; however, if the cooling water gets hot enough this light will come on and the laser will fault. -
Page 20: Laser Indicator Lights
Laser Indicator Lights The following chart is provided for clarity and is specific to the D250 water cooled laser: blink blink blink FAULT YELLOW blink blink WARN Condition: A A = Getting hot warning, but no-fault condition. B = System faults: too hot/water too hot. C = System fault: over/under voltage, other faults. -
Page 21: Beam Expanders And Other First Optical Surfaces
The flow of air may not be enough to overcome the explosive vaporization of objects near the output aperture. The beam leaving the D200/D250 laser is very small and extremely intense. Optics positioned in the beam must be of the highest quality to survive without damage. The first lens of a typical system is most often a beam expander entrance optic. - Page 22 Water Cooled Laser Connections The D200/D250 laser requires water cooling connections. The rear plate of this laser is pictured below: Connections to IN and OUT require polyethylene tubing of ½ inch outside diameter that is capable of handling pressure of up to 60 psi (4 bar). The internal cooling components of the laser are rated at 60 psi.
-
Page 23: Cooling Specifications
Setting the Flow Rate The D200/D250 measures the flow rate and will fault if the value is too low (not enough cooling) or too high (exceeding rated water pressure). The water flow rate can be monitored by connecting to the RS232 and running a special software package available from Iradion. -
Page 24: Condensation
Condensation In some areas where the temperature and humidity are high, the temperature setting of the cooler may need to be set higher than the specifications indicate. The chart below shows the dew point at various air temperatures and relative humidity. To determine the dew-point temperature, measure the air temperature and relative humidity. -
Page 25: The D200/D250 Power Supply And Air Pump Unit
The D200/D250 Power Supply and Air Pump Unit Electrical Ratings Parameter Value Voltage – 208-240 V~ Single Phase Current Frequency 50-60 Hz Duty-Cycle 100% Environmental Conditions Parameter Value Indoor Altitude 2000m max Humidity 90% max, non- condensing Mains ±10% stability of... -
Page 26: The D200/D250 Power Supply And Air Pump Unit
The D200/D250 Power Supply and Air Pump Unit Danger - Serious Personal Injury Earthed Ground For safe operation, an Earthed Ground is required for Power Supply and Laser Operation. Danger - Serious Personal Injury Service Disconnect When servicing the laser or its power supply, the Service Disconnect must be detached for safety. -
Page 27: Mechanical Outline
Mechanical Outline 28 | P a g e... -
Page 28: Connecting The Power Supply And Air Pump
Connecting the Power Supply and Air Pump The D200/D250 laser comes with a separate power supply and air pump unit. The unit also contains a long-life air pump and filters designed to provide exactly the right flow and pressure of clean air to the laser window. The laser will not operate if the air flow is not set correctly. -
Page 29: Power Supply And Air Pump Service
Power Supply and Air Pump Service The D200/D250 laser requires airflow to protect the output window. An internal pump and filters provide the correct flow and pressure. The air filters are designed to remove dust, neutralize acids in the air, remove hydrocarbon compounds that could cause thermal lensing of the beam and dry the air. -
Page 30: Serviceable Parts
Serviceable Parts Part Name Manufacturer Part # Service Period Method Primary Filter Arm & Hammer 62642D As required indicated by Wash with detergent and dust accumulation. warm water. Dry thoroughly. Secondary Arm & Hammer 62630G As required indicated by Wash with detergent and Filter dust accumulation. -
Page 31: Troubleshooting
Iradion Laser GmbH | Justus-von-Liebig-Ring 8 | 82152 Krailling Germany Phone: +49 (89) 899 360 - 1200 info.eu@iradionlaser.com www.iradionlaser.com Iradion Laser Inc. | One Technology Drive | Uxbridge, MA 01569 USA Phone: +1 (401) 762 - 5100 Patents: US 7460577 B2 info.us@iradionlaser.com...
