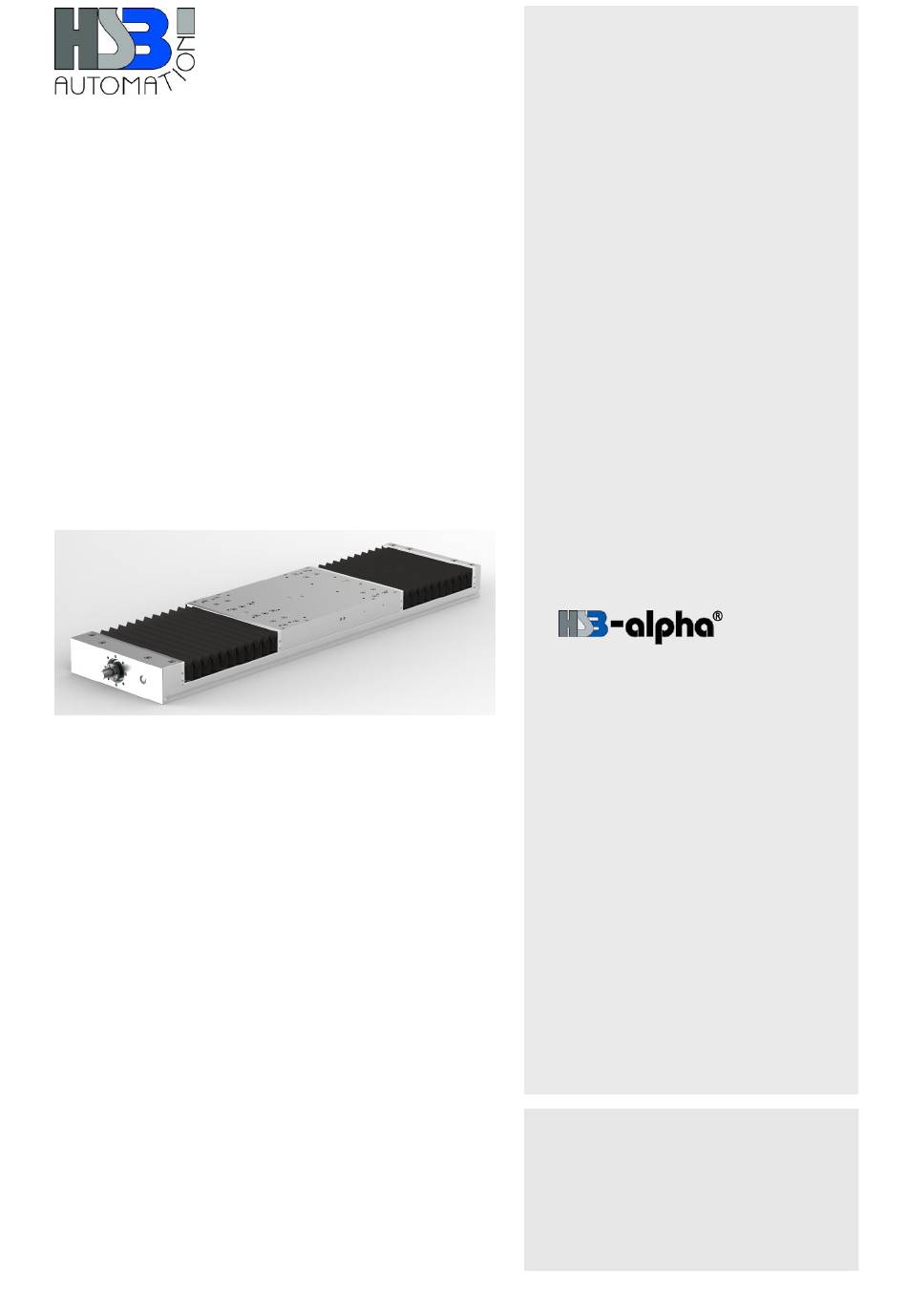

Original
Assembly and
Maintenance Manual
Linear Unit
Type
Alpha 15-B-155
Alpha 20-B-225
Alpha 30-B-325
Alpha 35-B-455
HSB Automation GmbH
In Laisen 74
72766 Reutlingen
Germany
Tel. +49 7121 14498-0
Fax +49 7121 14498-10
Info@HSB-Automation.de
www.HSB-Automation.de
FM 241 Master MuW Manual Alpha Type S Rev.01
Advertisement
Table of Contents
Related Manuals for HSB Alpha 15-B-155
Summary of Contents for HSB Alpha 15-B-155
- Page 1 Original Assembly and Maintenance Manual Linear Unit Type Alpha 15-B-155 Alpha 20-B-225 Alpha 30-B-325 Alpha 35-B-455 HSB Automation GmbH In Laisen 74 72766 Reutlingen Germany Tel. +49 7121 14498-0 Fax +49 7121 14498-10 Info@HSB-Automation.de www.HSB-Automation.de FM 241 Master MuW Manual Alpha Type S Rev.01...
-
Page 3: Table Of Contents
Safety Contents Safety ........................2 Symbols used ......................2 Regulation use ......................2 General safety ......................3 Use in explosive environments .................. 3 Technical condition of the linear unit ................4 Modifications to the linear unit ................... 4 Requirements for personnel..................5 Obligations of the operating company ................ -
Page 4: Safety
Safety Safety The Assembly and Maintenance Manual is a component element of the product package, and must always be kept to hand as a reference source. The Manual must be passed on if the unit is sold on or given away. If there is anything in this manual which you do not fully understand, please be sure to contact the manufacturers. -
Page 5: General Safety
The limit switches must be supplied via an isolating amplifier. For the EX isolation an intrinsically safe input circuit is required. The isolating amplifier is not supplied by HSB. • The linear unit may only be used under the conditions approved by the manufacturer. -
Page 6: Technical Condition Of The Linear Unit
Safety − Ambient temperature − Ambient conditions − Speed < 1 m/s; Speeds > 1 m/s only in combination with monitored central lubrication; operation in areas with potentially explosive dust possible with additional monitored compressed air loading − Maximum acceleration −... -
Page 7: Requirements For Personnel
Safety Requirements for personnel The linear unit has been designed and built in accordance with the state of the art and accepted safety standards. Hazards may nevertheless be posed when operating it. Consequently, the unit may only be installed and operated by trained, competent personnel. All personnel assigned to install, operate, maintain, repair or dismantle a linear unit must have read and understood this operating manual, and in particular section 1, “Safety”. -
Page 8: Warranty
Warranty Warranty The warranty conditions are laid down in the terms and conditions of delivery and payment issued at time of order. Warranty cover will be voided if: • the unit is not operated in accordance with the stipulated regulation use;... -
Page 9: Technical Data - Standard Model
Technical data – Standard model Technical data – Standard model Technical data - Linear unit Sizes Alpha type with spindle drive 15-B-155 20-B-225 30-B-325 35-B-455 Drive element Max. speed [rpm] 3000 1500 3000 1500 3000 1500 3000 1500 Spindle diameter [mm] Spindle pitch [mm] 5 long 20 long... - Page 10 Technical data – Standard model Forces and moments - Alpha linear unit with spindle drive Type designation Dynamic forces [Nm] Dynamic moments [Nm] no-load Alpha 15-B-155 4000 2000 20000 15000 1000 400 (580) 0,35 (1300) 3000 1200 Alpha 20-B-225 6000...
- Page 11 Technical data – Standard model Dynamic load ratings of ball screw drives - Alpha linear unit Nominal Ø in Model and size Pitch in [mm] [mm] 14600 13500 Alpha 15-B-155 11500 20 long 23900 12300 16100 5 long 23300 15100...
- Page 12 Technical data – Standard model Tightening torques [Nm] for fixing screws Fixing screws The figures given are intended as guides. DIN912/ISO4762-8.8 22,0 43,0 74,0 120,0 For shorter insertion depths, the figures must be adjusted DIN912/ISO4762-10.9 22,0 43,0 74,0 120,0 accordingly. DIN912/ISO4762-12.9 22,0 43,0...
-
Page 13: Product Description
Product description Product description Linear unit with spindle drive and rail guidance Carriage Base profile Bellows (optional) Lubricating nipple Movable bearing Fixed bearing Figure 1: Component assemblies of the Alpha 20-B linear unit with spindle drive FM 241 MuW Alpha Type S Rev.01 2021-03-25... - Page 14 Product description Nut driver Carriage Inductive limit switch Mechanical limit switch Thread drive Guide rail Figure 2: Component assemblies of the Alpha 20-B linear unit with spindle drive 2021-03-25 FM 241 MuW Alpha Type S Rev.01...
- Page 15 Product description A mechanical linear unit converts rotational motion into linear motion and is used to move loads quickly, safely and precisely from one position to another. It consists of an aluminium base profile, a moving carriage supported by a guide element (recirculating ball bearing or roller bearing guidance system) and a drive element (screw or timing belt drive).
-
Page 16: Transportation And Storage
Transportation and storage Transportation and storage The mechanical linear unit is a precision item. Its mechanism may be damaged by heavy jolting, resulting in impairment of its functions. Risk of damage by heavy jolting or bending! Transport the assembled linear unit only with the transit protection fitted. -
Page 17: Installation And Adjustment
Installation and adjustment Installation and adjustment The linear unit can be attached by the following methods: • By screws through the holes in the base plate • By screws inserted into the sliding blocks • By screws inserted into the factory-fitted tapped hole rails ... -
Page 18: Screwing The Linear Unit Into Place From Below
Installation and adjustment Screwing the linear unit into place from below Figure 4: Sliding blocks (1) in the groove on the underside of the base profile Attach the linear unit by the fixing screws from below using the sliding blocks or the tapped hole rails in the aluminium profile (figure 4). Procedure Align the linear unit. -
Page 19: Setting The Positions Of The Inductive Limit Switches
Installation and adjustment 6.3.1 Setting the positions of the inductive limit switches The function of inductive proximity switches is to shut down the electric drive before the mechanical end position is reached. The necessary braking distance depends on the velocity and deceleration of the carriage base. - Page 20 Installation and adjustment As from type Alpha 20-B Inductive limit switch Bearing Figure 6: Inductive limit switches for types Alpha 20-B, 30-B, 35-B The limit switches must switch in such a way that the carriage does not run all the way to the stop and so that the bellows are not squashed. Procedure Setting for types Alpha 20-B, 30-B, 35-B Connect the power to the limit switches.
-
Page 21: Setting The Positions Of The Mechanical Limit Switches
Installation and adjustment 6.3.2 Setting the positions of the mechanical limit switches Mechanical safety limit switches (NC contacts) must be used if a hazard is posed to personnel as soon as the electric drive fails to shut down. The drive may only be started up when all limit switches are connected and correctly set! A combination with inductive proximity switches is possible. -
Page 22: Mounting A Drive Unit
Installation and adjustment Procedure Connect the power to the limit switches. Slacken the bracket fixing screw (figure 7). Run the carriage as far as the safety zone. Move the limit switch until it trips. Tighten the bracket fixing screw. Check the correct position of the limit switch: Move the carriage manually and observe the switching operation. -
Page 23: Mounting A Motor
Installation and adjustment 6.4.1 Mounting a motor Clutch half 1 Motor housing Clutch ring Diameter on motor housing Clutch half 2 Figure 9 Motor housing with motor clutch on drive pin Procedure Place the motor and the clutch components in mounting position adjacent to the linear unit. -
Page 24: Start-Up
Start-up Tightening torques [Nm] of clamping screws Screws Torques Start-up Risk of personal injury or damage to other system components caused by rapid linear motion of the transport carrier, caused by thrown loads. Only authorised specialist personnel may start up the linear unit. Risk of crushing if the transport carrier is moved in the wrong direction. - Page 25 Start-up Checks before Before starting the unit, check the following: start-up • Make sure the retaining fixtures conform to the mass and acceleration data provided by the manufacturers. • Make sure the machine or line into which the linear unit is installed conforms to the EU Machinery Directive, the harmonised European standards or applicable national standards.
-
Page 26: Operation
Operation Operation Around all rotating parts (e.g. GX shaft, screw (when used without cover band)) there is a risk of being pulled in, and of clothing or body parts being caught up and trapped. There is also a risk of crushing around the moving carriage. -
Page 27: Shutdown
Shutdown Shutdown Risk of personal injury or damage to other system components caused by falling system components. Only authorised specialist personnel may disassemble the linear unit. Cut the power to the machine/line. Dismantle the drive from the linear unit. Detach the linear unit from the machine/line. FM 241 MuW Alpha Type S Rev.01 2021-03-25... -
Page 28: 10 Maintenance
Maintenance 10 Maintenance Around all rotating parts (e.g. GX shaft, screw (when used without cover band)) there is a risk of being pulled in, and of clothing or body parts being caught up and trapped. There is also a risk of crushing around the moving carriage. - Page 29 Maintenance Lubrication points on linear units Figure 10: Lubrication points (1) on carriage The categories, positions and numbers of lubrication points depend on the type of linear unit. The categories of lubrication point are identified by the markings S, F, O on the unit. There is a separate lubrication schedule for each lubrication point category.
- Page 30 Maintenance Schedule for lubrication point S (for ball screw drive) BSD* type Lubrication intervals at Grease quantity Grease type roll-overs [cm³] per ball screw nut 1204 0,50 Greases to DIN 51825- KP2N-20, e.g. Klüberplex 1205 0,55 BE 31-102 1605 1,70 ...
- Page 31 Maintenance Schedule for lubrication point F (for linear guide) Carriage base size Lubrication interval Grease quantity Grease type [cm³] per carriage 15 with ball chain approx. 0.4 Greases to DIN 51825- KPE1R-20, e.g. Klüberplex 20 with ball chain approx. 0.6 BE 31-102 25(L) with ball chain approx.
