  5. Beta 40-ZGS-ZSS
  6. Original assembly and maintenance manual

HSB Beta 40-ZGS-ZSS Original Assembly And Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
distributed by
Original
Assembly and
Maintenance Manual
Linear Unit
Types
Beta 40-ZGS-ZSS
Beta 50-C-ZRS
HSB Automation GmbH
In Laisen 74
72766 Reutlingen
Germany
Tel. +49 7121 14498-0
Fax +49 7121 14498-10
Info@HSB-Automation.de
www.HSB-Automation.de
Distributor:
SCHUNK GmbH & Co. KG
Spann- und Greiftechnik
Bahnhofstr. 106 - 134
74348 Lauffen/Neckar
Deutschland
Tel. +49 7133-103-0
Fax +49 7133-103-2399
info@de.schunk.com
www.schunk.com
FM 239 Master MuW Manual Beta Type Z Rev.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Beta 40-ZGS-ZSS and is the answer not in the manual?

Questions and answers

Related Manuals for HSB Beta 40-ZGS-ZSS

Summary of Contents for HSB Beta 40-ZGS-ZSS

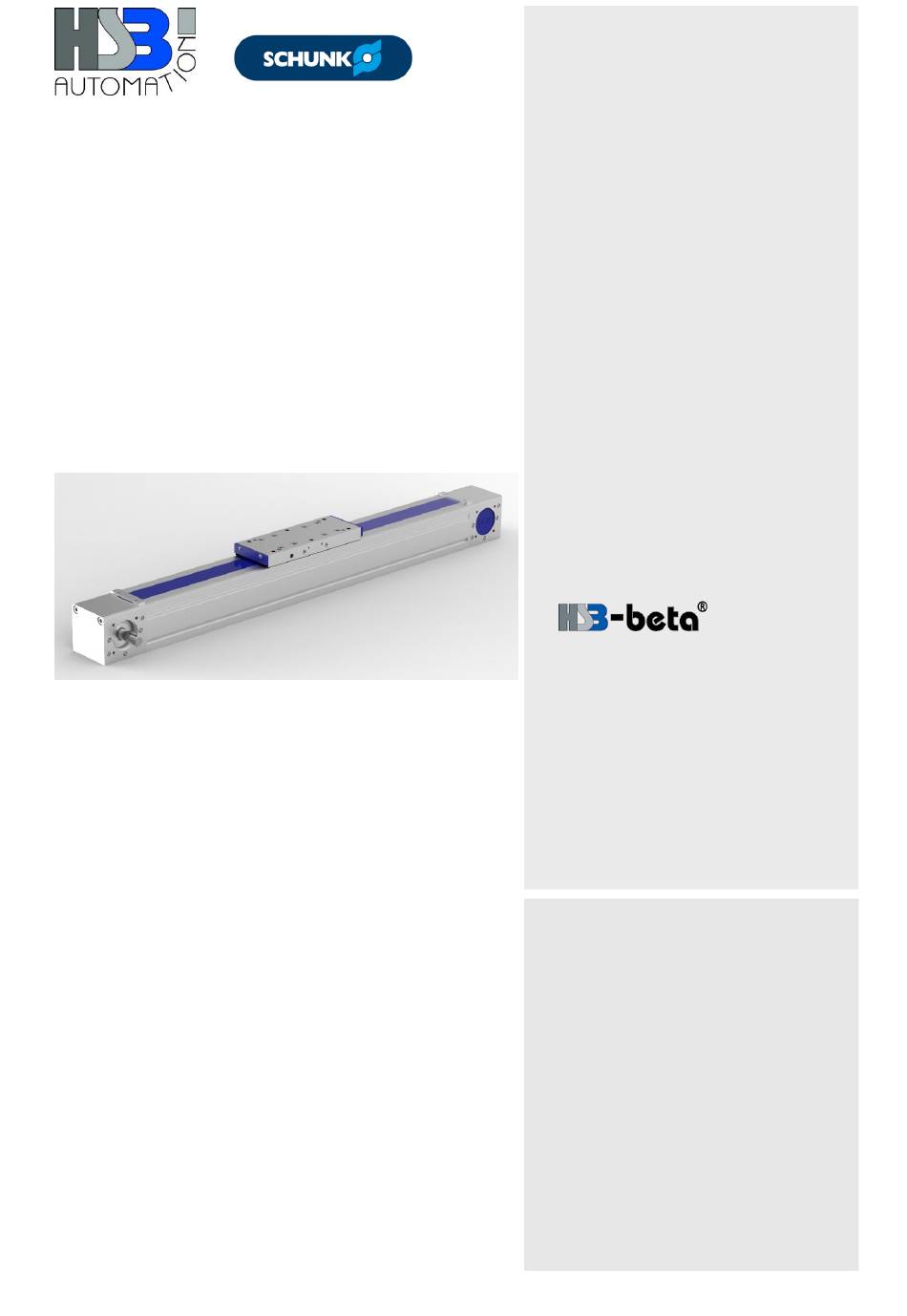

  • Page 1 Original Assembly and Maintenance Manual Linear Unit Types Beta 40-ZGS-ZSS Beta 50-C-ZRS HSB Automation GmbH In Laisen 74 72766 Reutlingen Germany Tel. +49 7121 14498-0 Fax +49 7121 14498-10 Info@HSB-Automation.de www.HSB-Automation.de Distributor: SCHUNK GmbH & Co. KG Spann- und Greiftechnik Bahnhofstr.
