Hamlet HBCS2D100US User Manual

2d barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
HBCS2D100US
o cerca il tuo prodotto tra le

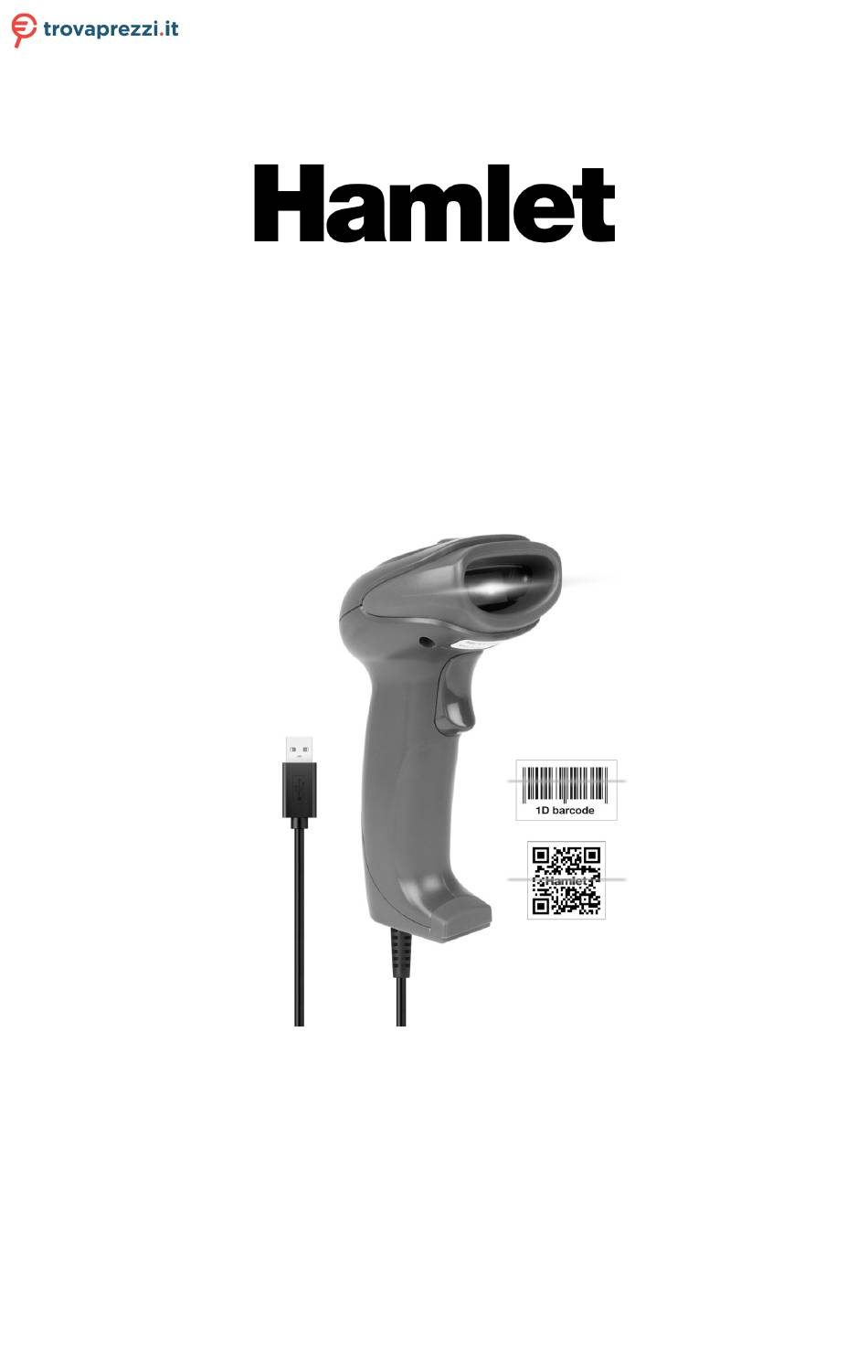

2D BARCODE SCANNER
USB PROFESSIONAL BARCODE SCANNER
FOR QR CODES AND LINEAR BARCODES
USER MANUAL
www.hamletcom.com
migliori offerte di Palmari e Barcode Scanner
HBCS2D100U
Hamlet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBCS2D100US and is the answer not in the manual?

Questions and answers

Related Manuals for Hamlet HBCS2D100US

Summary of Contents for Hamlet HBCS2D100US

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Hamlet HBCS2D100US o cerca il tuo prodotto tra le migliori offerte di Palmari e Barcode Scanner 2D BARCODE SCANNER USB PROFESSIONAL BARCODE SCANNER FOR QR CODES AND LINEAR BARCODES...
  • Page 2 LED Devices Hamlet products using led sources comply with IEC 60825-1, EN 60825-1: 2014. The led classification is marked on one of the labels on the product. Class 1 Led devices are not considered to be hazardous when used for their intended purpose.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents ............................... 3 Start ................................... 5 Introduction ............................5 About this Manual ..........................5 Barcode reading operation ........................5 Barcode Scanner Settings ........................5 1.4.1 Set Code Switch ......................... 5 1.4.2 Factory Default ........................... 6 1.4.3 User Default Settings .........................
  • Page 4 EAN8 ..............................37 UPCA ..............................38 UPCE0 ..............................38 UPCE1 ..............................39 Code128 ............................... 39 Code39 ..............................40 8.10 Code93 ..............................41 8.11 CodeBar ............................... 42 8.12 QR ................................ 43 8.13 Interleaved 2 of 5 ..........................43 8.14 Industrial 25 ............................44 8.15 Matrix 2 of 5 ............................

  • Page 5: Start

    1 Start 1.1 Introduction HBCS2D100U barcode reader, the application of the country's leading intelligent image recognition algorithm, and on this basis developed a set of advanced bar code reading algorithm, so as to realize the reading of smaller size, higher version of the bar code function 1.2 About this Manual This manual mainly provides various function setting commands of HBCS2D100U reader.

  • Page 6: Factory Default

    1.4.2 Factory Default By scanning the "Factory Default " barcode, all the reader parameters can be restored to the factory configuration. Factory Default 1.4.3 User Default Settings In addition to the factory settings, the user can also save their frequently used configuration as the default settings of the user, and save the current configuration information of the device as the default setting information of the user by scanning "Save current setting as user default setting".

  • Page 7: Interface

    2 Interface HBCS2D100U reader provides TTL-232 serial communication interface to communicate with the host. Through the communication interface, you can receive the read data, send commands to the reader to control, and change the reader's function parameters. 2.1 RS232 Communication Interface Serial communication interface is a common way to connect the reader with the host device (such as PC, POS, etc.).

  • Page 8: Rs232 Bit Configuration

    14400bps 19200bps 38400bps 57600bps 115200bps 2.1.1 RS232 bit configuration Customers can modify the serial parity by scanning the following configuration code. * NONE EVEN 2.1.2 RS232 and full-code open quick configuration In order to help customers quickly configure the serial port and full-code open mode during secondary development, quick configuration function can be realized by scanning the following configuration codes.

  • Page 9: Usb Hid Interface

    2.2 USB HID Interface When the reader module is connected to the host using a USB cable, the reader module can be configured as a HID device by scanning the following setup code. USB HID device When the device is used as a HID device, it can be 2 different devices. Configure the following settings. 2.2.1 HID parameter configuration You can also modify the PC's access cycle to the HID device by scanning the following setup code.

  • Page 10: Hid Leading Key Output

    10ms 15ms You can also modify the interval between the device to release the packet and the next valid packet by scanning the following setting code. * 1ms 10ms 15ms You can also modify the status of the CapsLock on output by scanning the following setup code. * Off 2.2.2 HID leading key output Users can scan the following configuration code to output a preamble message before outputting each...

  • Page 11: Hid Kbw And Rs232 Output

    2.2.3 HID KBW and RS232 output The user can scan the following configuration code to enable data output through the serial port while HIDKBW is output. Disable Enable 2.3 USB-COM When the HBCS2D100U is connected with the host using the USB cable, the module can be configured as a virtual serial port output mode by scanning the USB virtual serial port setting code.

  • Page 12: Scan Mode (Reading Mode)

    3 Scan mode (reading mode) 3.1 Manual Manual reading mode is the default reading mode. In this mode, the HBCS2D100U starts reading the code after pressing the trigger key, and stops the reading after the reading code successfully outputs the message or releases the trigger key.

  • Page 13: Successive Scanning Mode

    3.2 Successive scanning mode After setting, without trigger, HBCS2D100U reader immediately start reading, reading code successfully output information or single reading time after the end, HBCS2D100U wait for a period of time (can be set) will automatically start the next reading. If the following conditions do not occur, HBCS2D100U reader will work in the above cycle: During reading the user can also click the trigger button to manually pause the reading.
  • Page 14 1500ms 2000ms The same bar code reading delay in order to prevent the same code from being read multiple times in succession, the reader can be asked to read the same code if it can not read the same code continuously for a period of time in this mode. The same barcode reading delay means that the reader will read the same barcode and compare with the last reading time.

  • Page 15: Autosensing Mode

    3.3 Autosensing Mode After setting, without trigger, the reader immediately began to monitor the brightness of the surrounding environment, when the scene changes, the reader waits for the set of image stabilization time after the end of reading. After reading the successful output of information or single reading time-out after the reader to be some time interval (can be set) to re-enter the monitoring state.
  • Page 16 1500ms 2000ms Stable time Stabilization time length refers to the sensor reading mode, detect the scene changes in the reader before reading the picture need to wait for the image stabilization time. Stabilization duration is set from 0 to 25.5 seconds in 0.1 second steps.

  • Page 17: Command Trigger Mode

    3.4 Command Trigger mode In this mode, the reader starts to read the code when it receives the scan command sent by the host (ie bit0 of flag 0x0002 is written to "1"), and stops reading after the reading succeeds in outputting the message or the reading time of single reading.

  • Page 18: Pos Mode

    3.5 POS mode The user can quickly configure the module to work in the POS mode by scanning the following setting code, including the following main features: 1: Read mode is command trigger mode; 2: The communication interface is RS232; 3: Turn off the start tone;...

  • Page 19: Reading Area

    4 Reading area For different applications, users need to identify the area there will be some differences, by scanning the following setting code can be set. 4.1 Full area When the reading area is full area, the reader will scan the barcode with the center as the priority, and the barcode may be anywhere on the screen.
  • Page 20 Modify the center area size Commonly used center area size can be set by scanning the following setting code: Center area -20% Center area -40% Center area -60% When the size of the commonly used central area does not meet the needs, the user can also customize the configuration by scanning the "edit center area size"...

  • Page 21: Lighting And Aiming

    5 Lighting and Aiming 5.1 Lingting Lighting for shooting photography to provide auxiliary lighting, beam exposure to the reading target, to improve reading performance and adaptability to weak ambient light. The user can set it to one of the following depending on the application environment: Normal (default setting): The light is on when taking a picture, and off at other times.

  • Page 22: Prompt Output

    6 Prompt output 6.1 All beeps Reading "Buzzer Drive Frequency" sets the buzzer to active / passive buzzer, and also sets the drive frequency of passive buzzer. Buzzer drive frequency - Buzzer drive frequency - passive low frequency passive IF Buzzer drive frequency - Buzzer drive frequency - passive high frequency...

  • Page 23: Read The Success Tone

    6.2 Read the success tone Read the "turn off decoding success tone" can prohibit barcode reading successful voice prompts, read "open the decoding success tone" to restore the barcode reading success prompts. *Turn on reading success Turn off reading success tone tone Reading the Tone Duration sets the duration for reading the success tone.
  • Page 24 In order for the host computer to print Chinese data in the specified encoding format, it can be set by reading "Output Data Encoding Format". Note: GBK format can be used for Notepad, UNICODE format can be used for WORD and common chat tool input box.

  • Page 25: National Keyboard Settings

    6.4 National keyboard settings In order for the hosts in all countries to use the device, they can be set by reading the "keyboard" of the corresponding country. * Keyboard - United States Czech Republic France German Hungary Italy Japan Spain Turkey Tukry Q...

  • Page 26: Invoice Mode Is Enabled

    6.6 Invoice mode is enabled In order to use this module normally in the billing system, the user can convert the format of the invoice code and output it by scanning the following configuration codes. * Invoice mode is disabled Invoice mode is enabled 6.7 Image flip In practice, we encounter a mirror image or vertical flip image, as shown below.

  • Page 27: Black And White Flip

    6.8 Black and white flip In some special scenes, the black and white of the barcode may be reversed. By scanning the following setting codes, the module can be configured to recognize both normal and anti-colored barcodes. * One-dimensional bar code One-dimensional bar codes can disable anti-color enable inverse color...

  • Page 28: Data Editing

    7 Data editing In practice, sometimes we need to edit the data after reading and then output, to facilitate data differentiation and processing. Data editing includes: Increase Prefix Increase Suffix Decoding information Data section interception Output barcode type CodeID Decoding failed to output specific RF Increase the terminal Tail The processed data default output sequence is as follows: [Prefix] [CodeID] [Data] [Suffix] [Tail]...

  • Page 29: Suffix

    7.2 Suffix Add a suffix The suffix is a string that is customized and modified by the user after the information is decoded, and can be added by scanning the "allow suffix" setting code Allow to add a suffix * Not allow to add a suffix Modify the suffix Scan the "Modify Suffix"...

  • Page 30: Code Id

    7.3 CODE ID Add CODE ID Users can use CODE ID to identify different barcode types. The CODE ID corresponding to each barcode type can be freely modified. The CODE ID is identified by a single character. Allow to add CODE ID * Not allow to add CODE ID CODE ID default value Scan the "CODE ID default"...
  • Page 31 Modify UPCE1's CODE ID Change Code 128 Code ID CODE 39 CODE ID CODE 93 CODE ID Change CODE ID of CODE Change the CODE ID for Interleaved 2 of 5 Modify Industrial 25 CODE Modify the Matrix 2 of 5 CODE ID Change CODE 11 CODE ID MSI CODE ID...

  • Page 32: Terminator

    Modify the Data Matrix Modify the CODE ID of the CODE ID Limited PDF417 7.4 Terminator To enable the host to quickly distinguish between the results of the current decoding, you can turn this feature on. Read "add terminator" When this function is enabled, if the reading is successful, the reader adds the corresponding terminator after decoding the data Close the ending character * Add terminator CR...
  • Page 33 Only the End segment is Only the center segment is transmitted transmitted Modify the length of the Start section M The length of the Start section can be modified by scanning the "Intercepting length before modification" M and setting the length of the Start section. The maximum length of the Start section is 255 characters. The length of the front section M is represented by a hexadecimal character, and the length M is ten Refer to Appendix D for hex value conversion table.

  • Page 34: Rf Information

    Only the Center section is transmitted Example: When the decoding information is "12345678900123ABC", the middle four bytes "0123" 1. Check the character table to get the decimal data "10", "3" corresponds to the hexadecimal characters were "0A", "03" 2. Check whether the setting code is on. If it is not on, please scan the setting code "On" (see section 1.5.2) 3.

  • Page 35: Output Protocol

    7.7 Output protocol The following setting code can be used to modify the output format of the decoding result in serial / virtual serial port mode by scanning. The format of the output with protocol is selected as follows: <03> <Length> <Decode Data>. In addition, when the output with protocol is enabled in serial / virtual serial port mode, the module will not add an ending character to the decoded data.

  • Page 36: Barcode Type Enable / Disable Configuration

    8 Barcode type enable / disable configuration 8.1 All bar codes are solvable Read the following setting code, all supported bar code types will be allowed or not to be read. After all types are forbidden, only setting code can be read. All types are allowed to be Prohibition of reading all read...

  • Page 37: Ean8

    * 2 additional code can be 2 additional code can be disabled enabled * 5 additional code can be 5 additional code can be disabled enabled 8.4 EAN8 Read the following setting code, will be EAN8 bar code to allow / prohibit read set. * Allow to read EAN8 Prohibition of reading EAN8 Read the following setting code, you can configure EAN13 additional code reading is enabled or disabled.

  • Page 38: Upca

    8.5 UPCA Read the following setting code to set UPCA bar code enable / disable reading. * Allow to read UPCA Not allow to read UPCA Read the following setting code, you can configure the UPCA additional code reading is enabled or disabled. * 2 additional code can be 2 additional code is enable disabled...

  • Page 39: Upce1

    8.7 UPCE1 Read the following setting code, set UPCE1 bar code to enable / disable reading. * Allow to read UPCE1 Not allow to read UPCE1 Read the following setting code, you can configure UPC-E1 additional code reading is enabled or disabled. * 2 additional code can be 2 additional code is enabled disabled...

  • Page 40: Code39

    Read the following setting code, the maximum length of Code128 bar code to read set. * The maximum length of The maximum length of Code128 information is 32 Code128 information is 255 8.9 Code39 Read the following setting code, Code39 bar code to enable / disable the reading to be set. * Allow to read Code39 Not allow to read Code39 Read the following setting code, Code39 bar code will be the shortest length of reading set.

  • Page 41: Code93

    * Does not enable FullAsc Enable FullAsc mode mode 8.10 Code93 Read the following setting code, will Code93 bar code to allow / prohibit reading set. * Allow to read Code93 Not allow to read Code93 Read the following setting code, the Code93 bar code will be the shortest length of reading set. * Code93 minimum length is Code93 minimum length is 0 Code93 bar code will be the longest length of reading set.

  • Page 42: Codebar

    8.11 CodeBar Read the following setting code, CodeBar bar code to enable / disable the reading set. * Allow to read CodeBar Not allow to read CodeBar Read the following setting code, the CodeBar bar code to allow / prohibit to send start and stop set. * Does not send CodeBar Send CodeBar start and end start and end breaks...

  • Page 43: Interleaved 2 Of 5

    8.12 QR Read the following setting code, will be set to enable / disable QR barcode reading. * Allow to read QR Not allow to read QR 8.13 Interleaved 2 of 5 Read the following setting codes to set the Interleaved 2 of 5 bar code enable / disable reading. * Prohibition of reading Interleaved 2 of 5 is allowed Interleaved 2 of 5...

  • Page 44: Industrial 25

    8.14 Industrial 25 The following setting codes will be read to set the Enable / Disable for Industrial 25 bar code reading. * Not allow to read Allow to read Industrial 25 Industrial 25 Read the following setting code, the Industrial 25 bar code to read the shortest length set. Industrial 25 minimum * Industrial 25 minimum length is 0...

  • Page 45: Code11

    The minimum length is 0 * The minimum length is 4 The following setting codes will be read to set the maximum reading length of Matrix 2 of 5 barcode. * The maximum length is 32 The maximum length is 255 Read the following setting code, will set the Matrix2 of 5 bar code format.

  • Page 46: Msi

    * Code11 maximum length Code11 maximum length of of 32 Read the following setting code, the Code11 calibration method will be configured. Code11 using 1bit *Code11 using 1bit calibration calibration 8.17 MSI Read the following setting code, set the MSI bar code enable / disable reading. Allow to read MSI *Not allow to read MSI Read the following setting code, set the minimum reading length of MSI bar code.

  • Page 47: Rss

    8.18 RSS Read the following setting code, will be set to enable / disable RSS-14 bar code reading. *RSS-14Prohibition of Allow to read RSS-14 reading RSS-14 Read the following setting code, will be limited RSS bar code to allow / prohibit reading set. Allow to read RSS Not allow to read RSS Read the following setting code, will be extended RSS bar code to allow / prohibit read set.

  • Page 48: Pdf417

    8.19 Data Matrix Read the following setting code, DM bar code to enable / disable the read set. *Allow to read DM Not allow to read DM Read the following setting code, will set whether the module supports decoding multiple DM barcode at the same time.

  • Page 49: Appendix A: Default Settings Table

    9 Appendix A: Default Settings Table Format 9-1 Default settings table parameter name default setting Noted Interface Baud rate 9600 Inspection Not inspection Data bit 8 bits TTL-232 Stop bit 1 bit Hardware flow control Mode parameters The default mode of reading Manual Mode Parameter range: 0.1-25.5 seconds, Serial trigger...

  • Page 50: Appendix B: Common Serial Instructions

    10 Appendix B: Common Serial Instructions Form 10-1 Common serial instructions Features Serial Command Set the baud rate to 9600 7E 00 08 01 00 D9 D3 20 38 Save the settings to EEPROM 7E 00 09 01 00 00 DE C8 Query baud rate 7E 00 07 01 00 2A 02 D8 0F After the host sends the serial port command to query the baud rate, the reading module will reply the...

  • Page 51: Appendix C: List Of Code Ids

    11 Appendix C: List of Code IDs form 11-1 Code ID list Correspondin Type of Bar code Flag address g character EAN-13 0x91 EAN-8 0x92 UPC-A 0x93 UPC-E0 0x94 UPC-E1 0x95 Code 128 0x96 Code 39 0x97 Code 93 0x98 Codabar 0x99 Interleaved 2 of 5...

  • Page 52: Appendix D: Ascii Code Table

    12 Appendix D: ASCII Code Table 12-1 ASCII code table Hexadecimal Decimal character...
  • Page 53 Hexadecimal Decimal character " & < >...
  • Page 54 Hexadecimal Decimal character...
  • Page 55 Hexadecimal Decimal character...

  • Page 56: Appendix E: Data Codes

    13 Appendix E: Data Codes 0 ~ 9 A – F...

  • Page 58: Appendix F: Save Or Cancel

    14 Appendix F: Save or Cancel After reading the data code to scan the "save" setting code to read the data saved. If you make a mistake while reading the data code, you can cancel reading the wrong data. Such as reading a setting code and reading the data "A", "B", "C" and "D" in sequence, if "one data before last reading"...
